Tractor · 1988Unverified
Kubota B2150
Kubota B2150 — B Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1711 to 1839 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Dry disc brakesReference
Two-post ROPS.Reference
Variants
B2150DT4WDReference
Engine
Kubota 1.2L 4-cyl dieselReference
Engine (gross)17.9 kWReference
KubotaReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke75 x 70 mmReference
Power (gross)17.9 kWReference
Rated RPM2600Reference
Starter volts12Reference
Oil change100 hReference
Coolant capacity3.9 LReference
Transmission
9-speed sliding gearReference
hydrostaticReference
2WD gear Shipping776 kgReference
4WD gear Shipping829 kgReference
Typesliding gearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)14.9 kWReference
Hydro PTO (claimed)13.4 kWReference
Hydraulic system18.0 LReference
Typeopen centerReference
Capacity18.0 LReference
Pump flow28.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift459 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOstandardReference
Front PTOoptionalReference
Capacities
Fuel28.0 LReference
Dimensions
Wheelbase160 cmReference
Weight1711 to 1839 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference
4WD Standard tires (ag)Front: 6.00-12. Rear: 12.4-16Reference
Length277 cmReference
Width113 cmReference
Height195 cmReference
Flange rear axleReference
2WD Front tread83 cmReference
4WD Front tread89 cmReference
2WD hydro Shipping781 kgReference
4WD hydro Shipping834 kgReference
Kubota B2150 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference

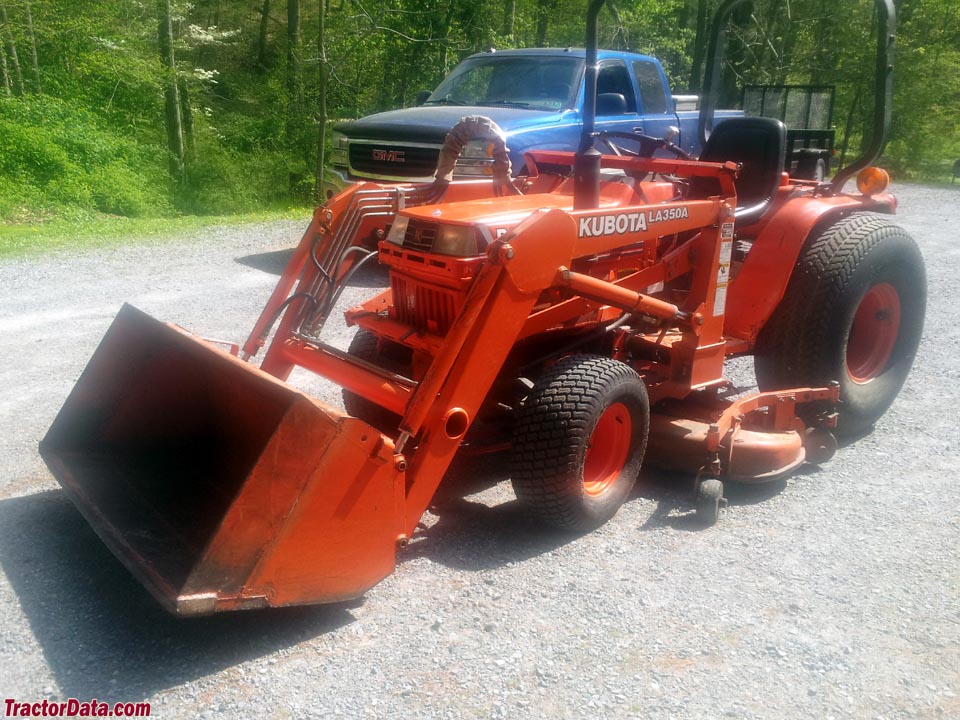

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Kubota BL4520B Backhoe
Backhoe typeKubota BL4520B BackhoeReference
Transport height150 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth205 cmReference
Reach from pivot246 cmReference
Loading height151 cmReference
Bucket Rotation164°Reference
Swing Arc180°Reference
Bucket force1224 kgReference
Dipperstick force607 kgReference
Kubota L4530B Backhoe
Backhoe typeKubota L4530B BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
Reach from pivot284 cmReference
Loading height179 cmReference
Bucket Rotation194°Reference
Swing Arc180°Reference
Bucket force1310 kgReference
Dipperstick force746 kgReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
