Tractor · 2007Unverified

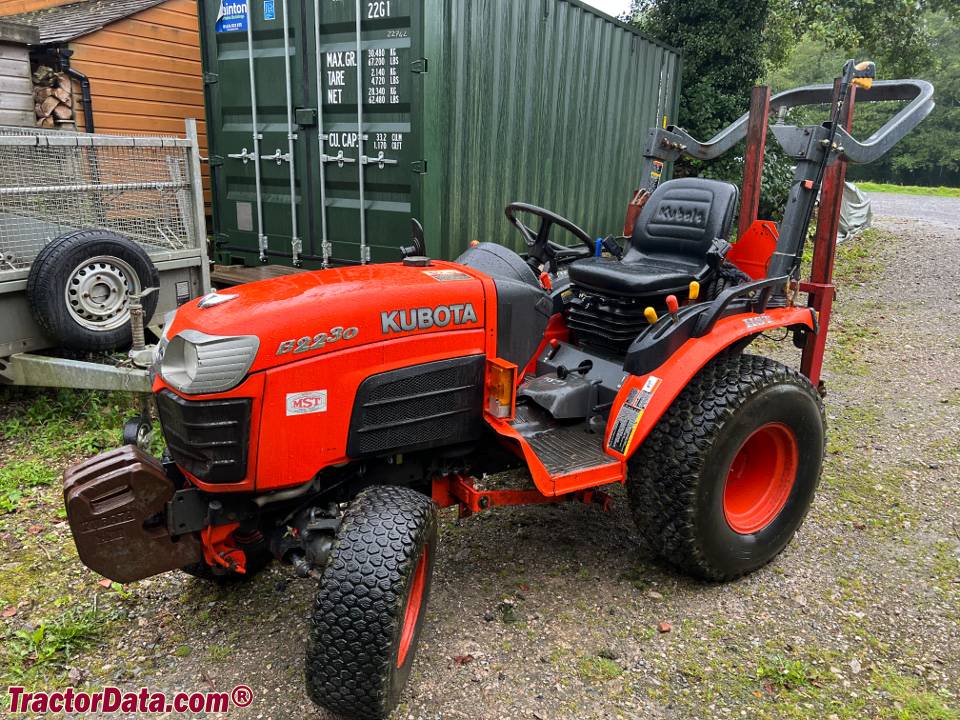

Kubota B2230
Kubota B2230 — B30 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1587 to 2105 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)16.2 kWReference
Engine (net)14.5 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Rated Power (net)14.5 kWReference
Power (gross)16.2 kWReference
Air cleanerdry elementReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed mechanical shuttleReference
hydrostaticReference
ROPS gear719 kgReference
Cab gear929 kgReference
Typemechanical shuttleReference
Gears9 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)13.2 kWReference
Hydro PTO (claimed)12.5 kWReference
Pressure152.0 barReference
Pump flow20.4 lpmReference
Total flow36.0 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)969 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2592Reference
Mid PTOoptionalReference
Mid PTO Type2500 (Kubota 10-tooth #5)Reference
Engine RPM2500@2600Reference
Dimensions
Wheelbase150 cmReference
Weight1587 to 2105 poundsReference
Front tire6-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
Lawn/turf front22x8.50-12Reference
Lawn/turf rear31x13.5-15Reference
ROPS Length273 cmReference
Cab Length283 cmReference
Width110 cmReference
Height (ROPS)226 cmReference
Height (cab)205 cmReference
Ground clearance24 cmReference
Front tread83 cmReference
Rear tread85 to 107 cmReference
ROPS hydro744 kgReference
Cab hydro954 kgReference
B2230 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above and forward of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Speeds
With 9.5-16 rear tires. Reverse speeds are 1% faster than forward.Reference
With 9.5-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
