Tractor · 2018Unverified
Kubota B2231
Kubota B2231 — B2 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1874 to 2381 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)16.9 kWReference
Engine (net)15.2 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Rated Power (net)15.2 kWReference
Power (gross)16.9 kWReference
Air cleanerdry elementReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)12.5 kWReference
Pressure161.8 barReference
Total flow32.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)969 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2500 (Kubota 10-tooth #5)Reference
Dimensions
ROPS Wheelbase150 cmReference
Cab Wheelbase155 cmReference
Weight1874 to 2381 poundsReference
ROPS Length273 cmReference
Cab Length288 cmReference
Width123 cmReference
Height (ROPS)232 cmReference
Height (cab)208 cmReference
ROPS Weight850 kgReference
Cab Weight1080 kgReference
Ground clearance26 cmReference
Front tread83 to 97 cmReference
Rear tread98 to 108 cmReference

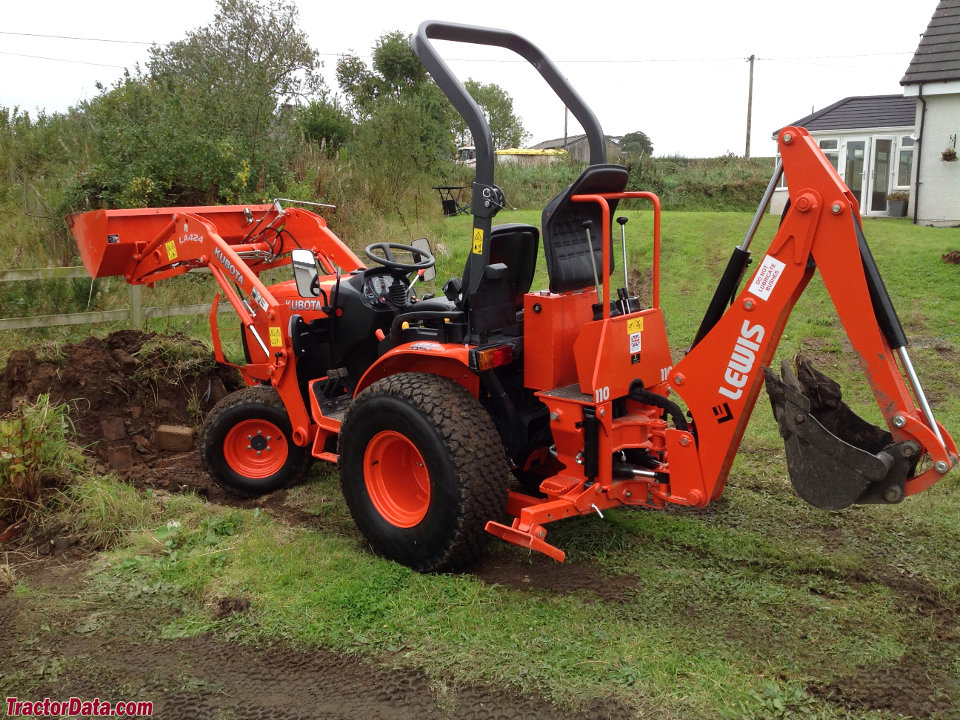

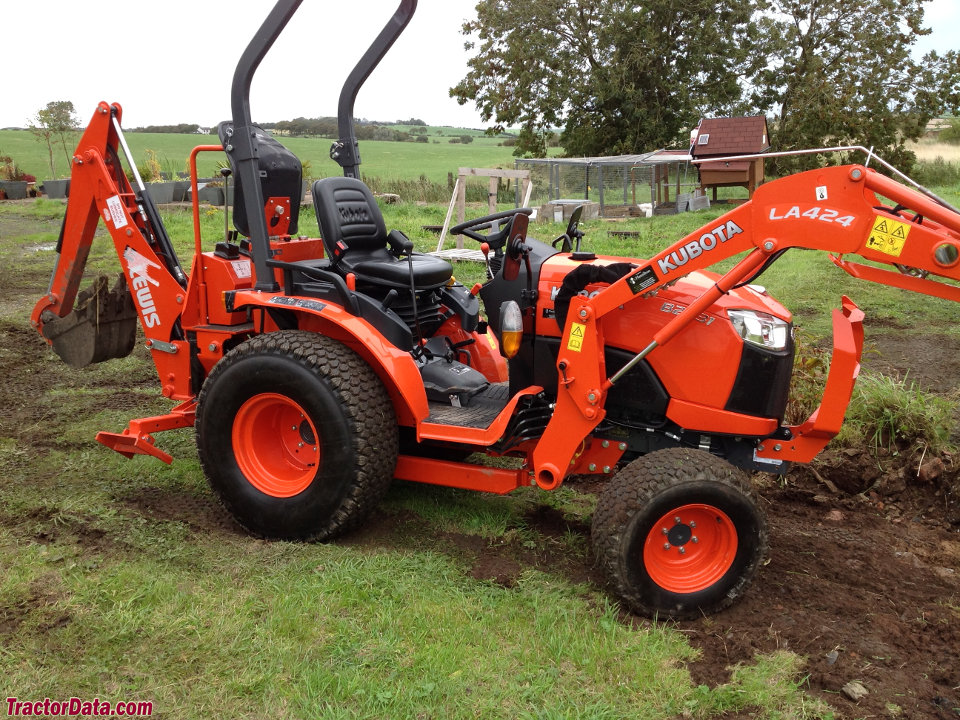

Kubota B2231 attachments
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
