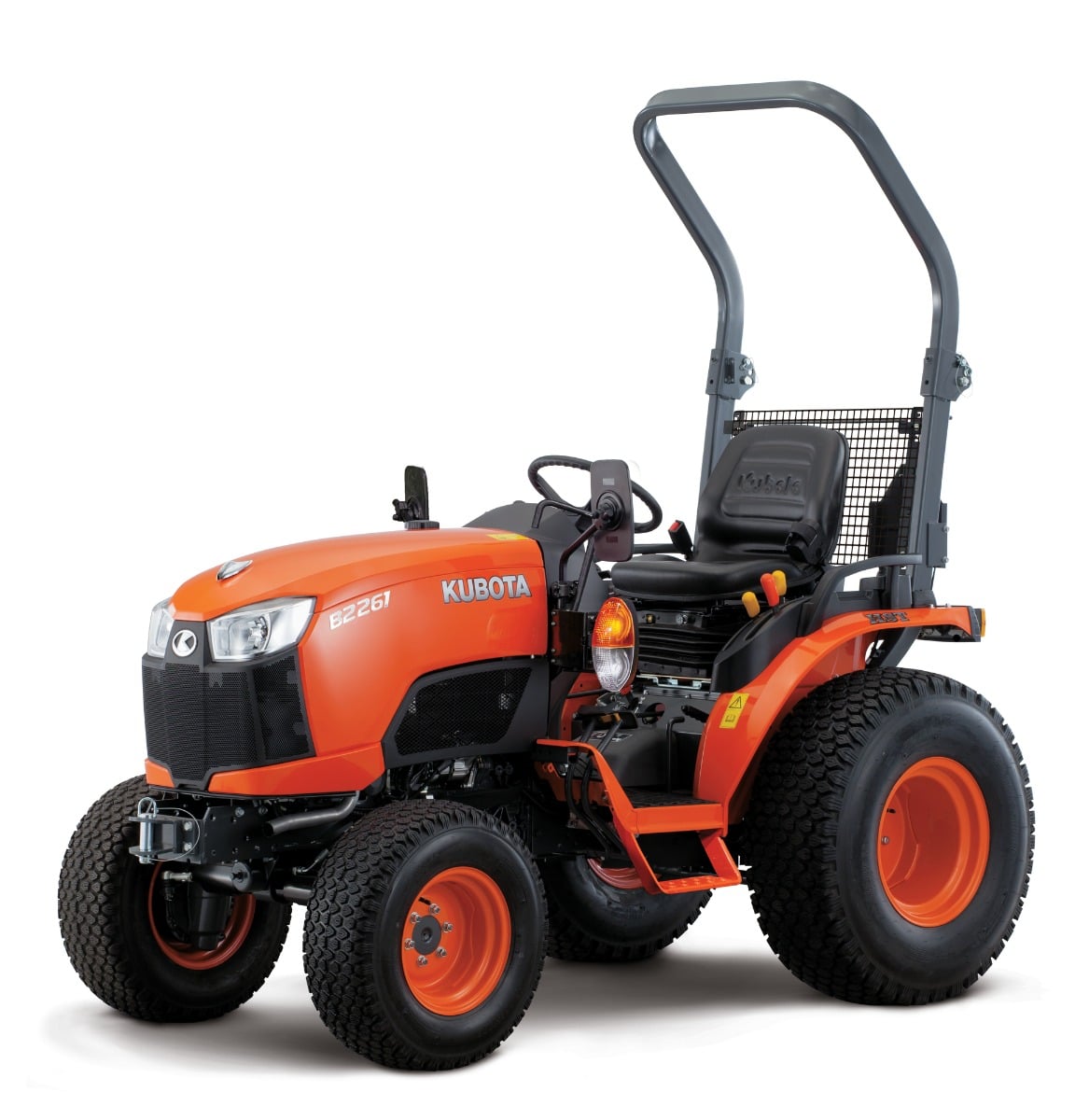

Kubota B2261
Kubota B2261 — B2 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1830 to 2414 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.3L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)19.1 kWReference
Engine (net)17.6 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 88 mmReference
Rated Power (net)17.6 kWReference
Power (gross)19.1 kWReference
Air cleanerdry elementReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed mechanical shuttleReference
hydrostaticReference
ROPS gear830 kgReference
Typemechanical shuttleReference
Gears9 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)15.1 kWReference
Hydro PTO (claimed)14.6 kWReference
Pressure161.8 barReference
Total flow32.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)969 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2500 (Kubota 10-tooth #5)Reference
Dimensions
ROPS Wheelbase150 cmReference
Cab Wheelbase155 cmReference
Weight1830 to 2414 poundsReference
ROPS Length273 cmReference
Cab Length288 cmReference
Width124 cmReference
Height (ROPS)235 cmReference
Height (cab)211 cmReference
Ground clearance28 cmReference
Front tread83 to 96 cmReference
Rear tread100 to 110 cmReference
ROPS hydro850 kgReference
Cab hydro1094 kgReference
Kubota B2261 attachments
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
