Tractor · 2018Unverified

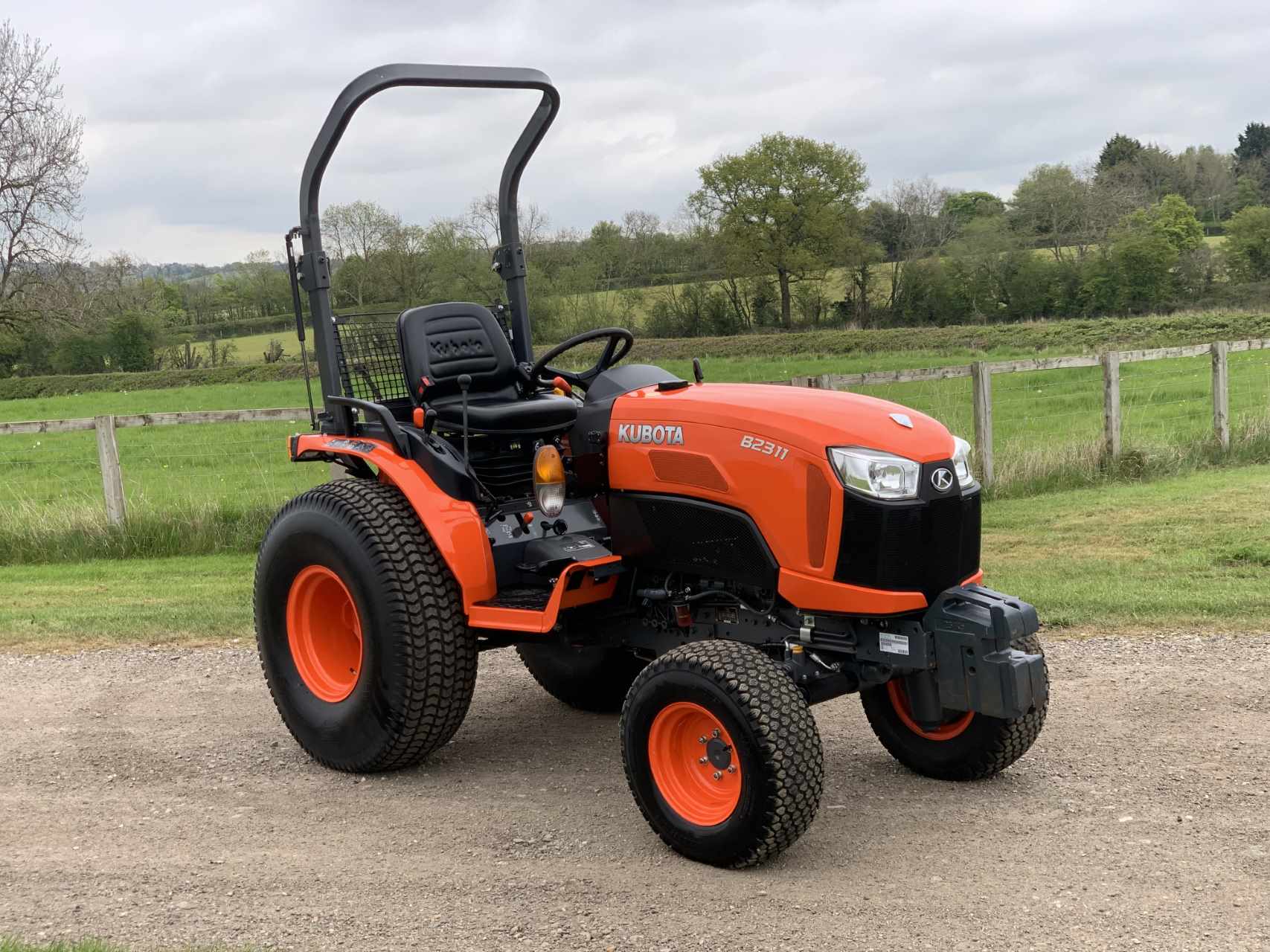

Kubota B2311
Kubota B2311 — B2 Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2039 to 2513 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)22.8 kWReference
Engine (net)20.9 kWReference
KubotaReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Rated Power (net)20.9 kWReference
Power (gross)22.8 kWReference
Air cleanerdry elementReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)17.4 kWReference
Pressure161.8 barReference
Total flow32.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)969 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2500 (Kubota 10-tooth #5)Reference
Dimensions
Wheelbase166 cmReference
Weight2039 to 2513 poundsReference
ROPS Length293 cmReference
Cab Length300 cmReference
Width136 cmReference
Height (ROPS)232 cmReference
Height (cab)214 cmReference
ROPS Weight924 kgReference
Cab Weight1139 kgReference
Ground clearance31 cmReference
Front tread93 to 101 cmReference
Rear tread104 cmReference
Kubota B2311 attachments
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
137 cm mid-mount mower deckReference
152 cm mid-mount mower deckReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
