Tractor · 1995Unverified
Kubota B2400
Kubota B2400 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
712 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 1.1L 3-cyl dieselReference
Engine (gross)17.9 kWReference
Kubota D1105-D10Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Torque67.8 NmReference
Starter volts12Reference
Oil capacity3.4 LReference
Coolant capacity3.4 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity6.0 LReference
PTO & Hydraulics
PTO (claimed)13.4 kWReference
Hydraulic system12.1 LReference
Typeopen centerReference
Capacity12.1 LReference
Pump flow22.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)580 kgReference
Rear lift (at 24"/610mm)460 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2584Reference
Mid PTO Type2537Reference
Engine RPM2537@2600Reference
Capacities
Fuel23.8 LReference
Dimensions
Wheelbase150 cmReference
Weight712 kgReference
Front tire6.50-10Reference
Rear tire11.2-16Reference
Ag front6.50-10 (2WD)Reference
Ag front7.00-12 (4WD)Reference
Ag rear11.2-16Reference
Length232 cmReference
Width117 cmReference
Height134 cmReference
Height (ROPS)196 cmReference
Ground clearance32 cmReference
4WD Front tread83 cmReference
Rear tread88 to 106 cmReference
Kubota B2400 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA390Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference

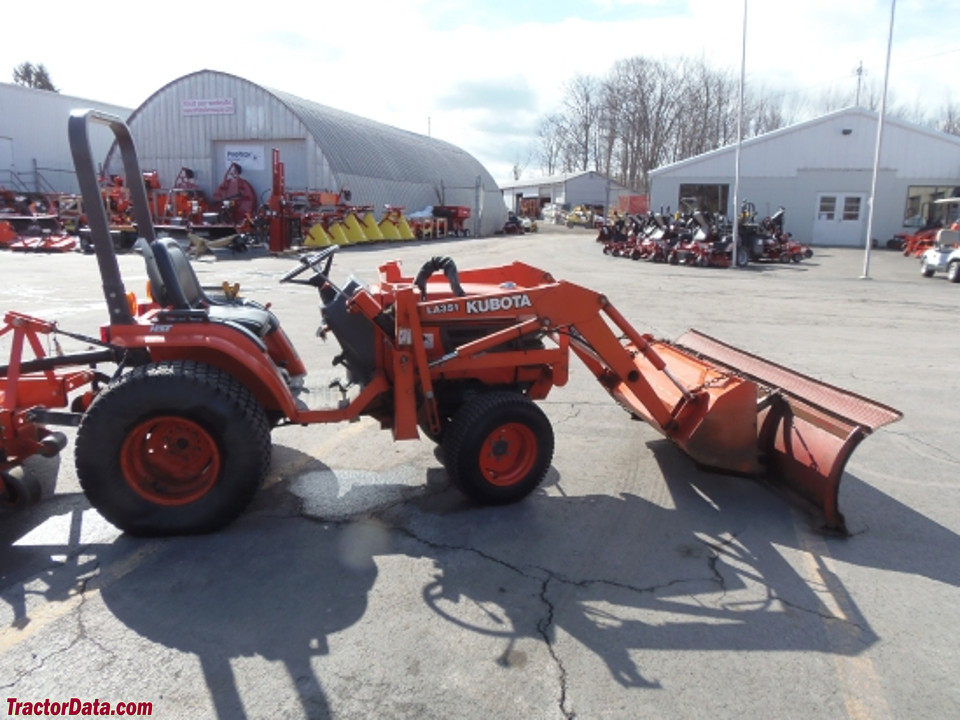

Kubota LA301 loaderReference

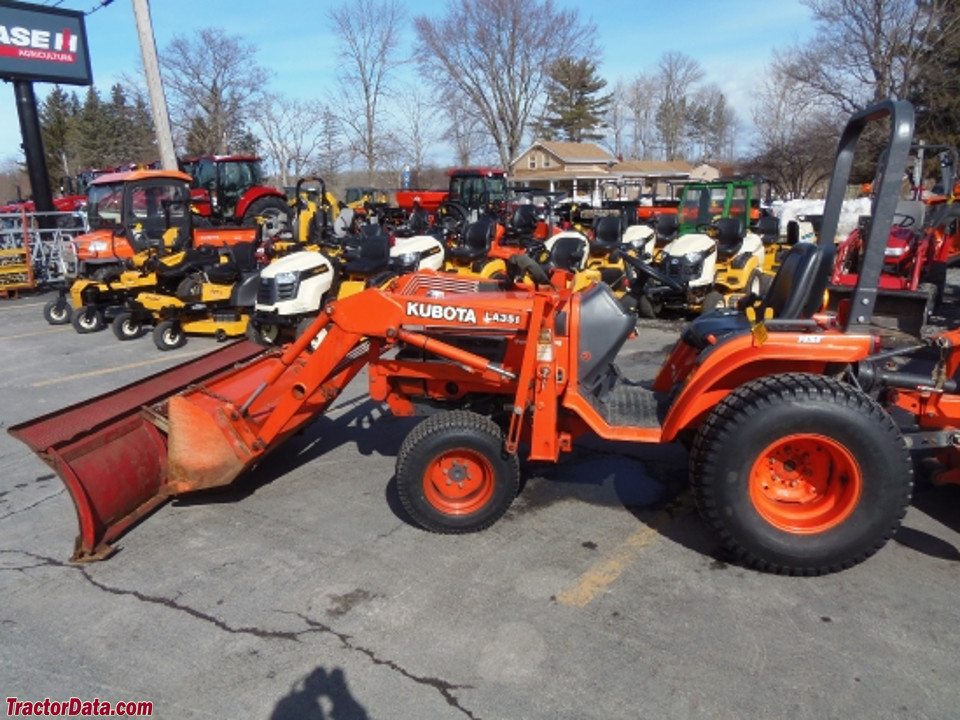

Kubota LA351 loaderReference
BackhoeReference
Kubota B4672 Backhoe
Backhoe typeKubota B4672 BackhoeReference
Speeds
With 11.2-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
