Kubota B2401
Kubota B2401 — B-01 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
689 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $11,895 in 2021Reference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
B2401DTNnarrowReference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)16.3 kWReference
Kubota D1105Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)16.3 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.1 LReference
Coolant capacity3.8 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity12.5 LReference
PTO & Hydraulics
PTO (claimed)14.3 kWReference
Typeopen centerReference
Rear valves1Reference
Front valves1Reference
Pump flow16.7 lpmReference
Total flow26.5 lpmReference
Steering flow9.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)749 kgReference
Rear lift (at 24"/610mm)585 kgReference
Rear PTOtransmissionReference
ClutchoverrunningReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/980 (1.375)Reference
Engine RPM540@2505Reference
Engine RPM1000@2560Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase155 cmReference
Weight689 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
B2401DTN Optional tires (ag)Front: 5-12. Rear: 8-16Reference
Length238 cmReference
Width112 cmReference
Height213 cmReference
Ground clearance30 cmReference
Kubota B2401 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference

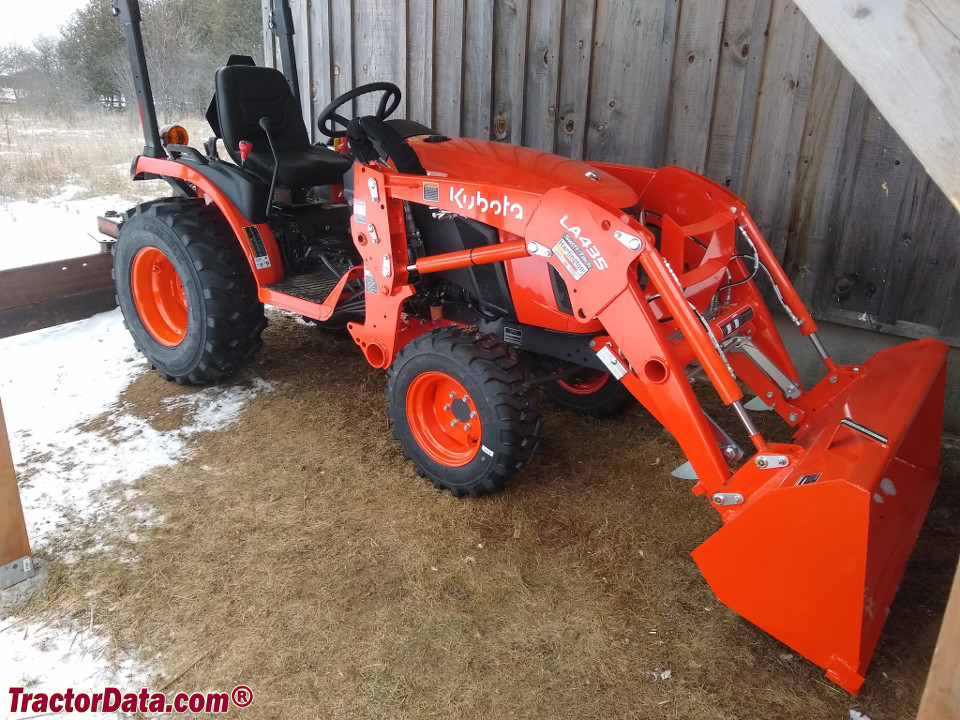

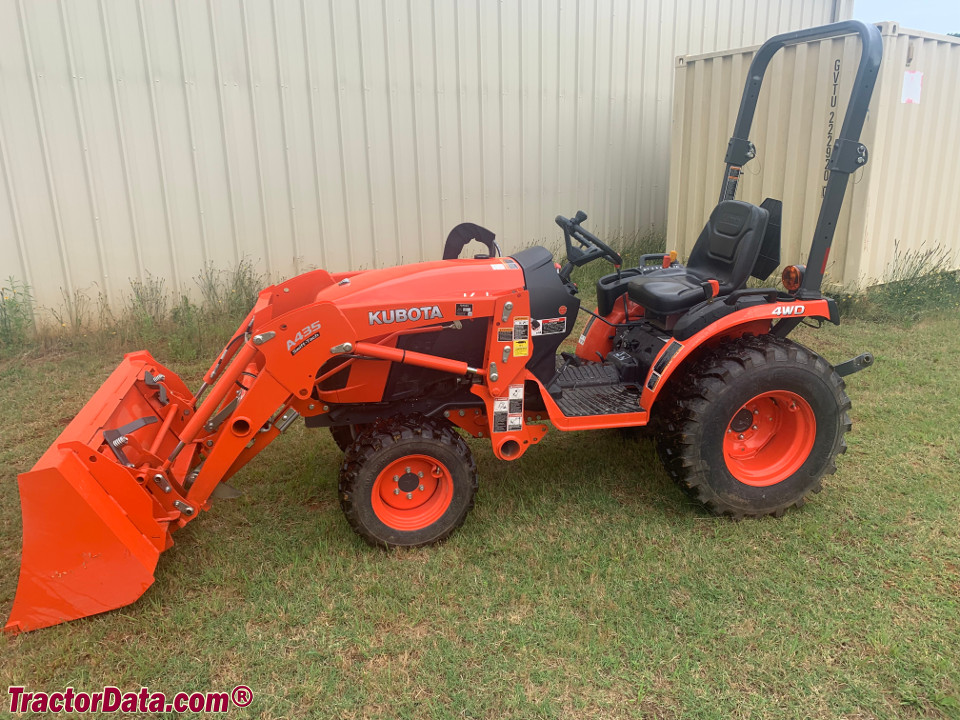

front-end loaderReference
backhoeReference
B2401 Serial Number Location
Serial number decal on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Kubota BH70 Backhoe
Backhoe typeKubota BH70 BackhoeReference
Transport height185 cmReference
2-Foot flat digging depth216 cmReference
Reach from pivot296 cmReference
Loading height156 cmReference
Swing Arc140°Reference
Speeds
With 9.5-16 rear tires.Reference
