Tractor · 2000Unverified

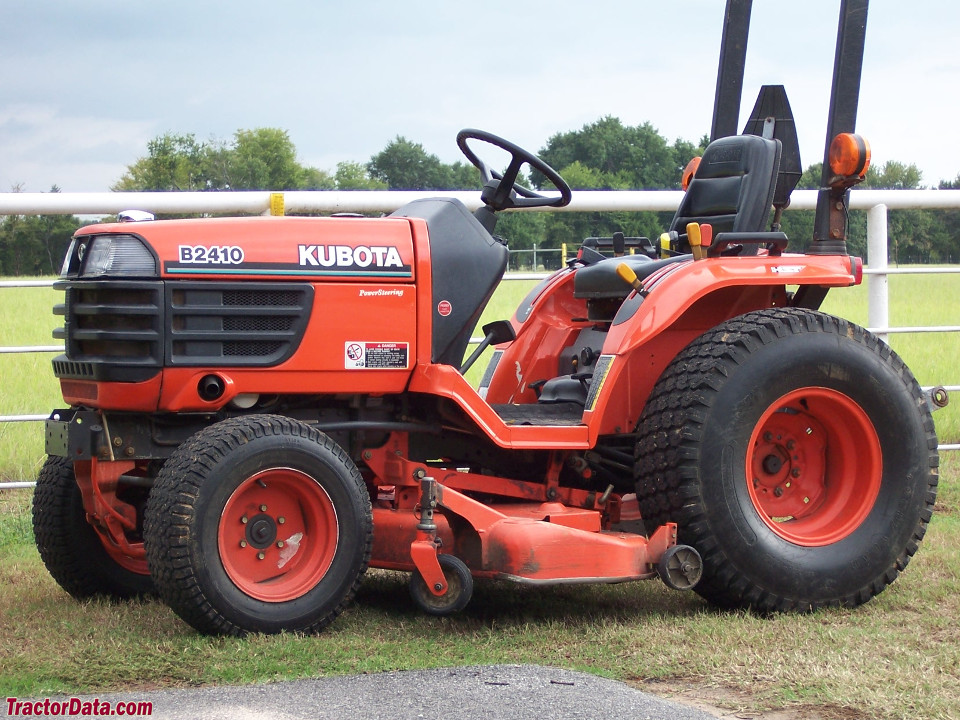

Kubota B2410
Kubota B2410 — B Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1367 to 1500 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
B2410HSE2WDReference
B2410HSD4WDReference
B2410HSDB4WD bi-speed turnReference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank23.8 LReference
Engine (gross)17.9 kWReference
Kubota D1105Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)17.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
Torque67.8 NmReference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity3.8 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity12.5 LReference
PTO & Hydraulics
PTO (claimed)13.4 kWReference
Typeopen centerReference
Valves2Reference
Pump flow16.7 lpmReference
Steering flow9.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)750 kgReference
Rear lift (at 24"/610mm)589 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOliveReference
Mid PTO Type2500Reference
Engine RPM2500@2578Reference
Dimensions
Wheelbase149 cmReference
Weight1367 to 1500 poundsReference
Front tire6.50-10Reference
2WD Rear tire11.2-16Reference
Weight383 kgReference
2WD Standard tires (ag)Front: 6.50-10. Rear: 11.2-16Reference
4WD Standard tires (ag)Front: 7-12. Rear: 11.2-16Reference
Length232 cmReference
Width117 cmReference
Height (steering wheel)135 cmReference
Height (ROPS)196 cmReference
Ground clearance32 cmReference
Ground clearance28 cmReference
2WD Front tread83 cmReference
4WD Front tread89 cmReference
Rear tread88 to 106 cmReference
2WD620 kgReference
4WD669 kgReference
HSDB680 kgReference
Kubota B2410 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA433Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota LA352 loaderReference
Kubota LA402 loaderReference
BackhoeReference
Kubota B4672A Backhoe
Backhoe typeKubota B4672A BackhoeReference
Transport height171 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
