Tractor · 2007Unverified

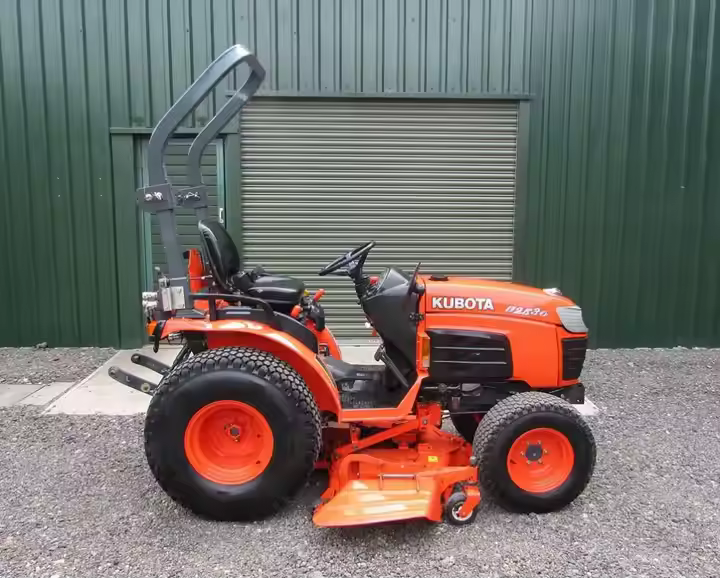

Kubota B2530

Name: Kubota B2530
Brand: Kubota

Kubota B2530 — B30 Series · 25 hp. Reference specifications; pending source verification.

The Kubota B2530 is a compact tractor with a rated output of 25 hp. It was manufactured from 2007 to 2013. The tractor features a 3-cylinder diesel liquid-cooled engine, powering four-wheel drive via a hydrostatic transmission. Its weight ranges from 1598 to 2116 pounds, suitable for tasks up to approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Max power

24.7 hp

Weight

1598 to 2116 pounds

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

25 hp

Transmissions

9-speed mechanical shuttle

Production years

2007-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.1L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine (gross)18.4 kWReference

Engine (net)16.1 kWReference

Kubota D1105Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Rated Power (net)16.1 kWReference

Power (gross)18.4 kWReference

Air cleanerdry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.07x3.09 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speed mechanical shuttleReference

hydrostaticReference

ROPS gear724 kgReference

Cab gear934 kgReference

Typemechanical shuttleReference

Gears9 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeMechanical ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)14.7 kWReference

Hydro PTO (claimed)14.0 kWReference

Pressure152.0 barReference

Pump flow20.4 lpmReference

Total flow36.0 lpmReference

Steering flow15.5 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)969 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2592Reference

Mid PTOoptionalReference

Mid PTO Type2500 (Kubota 10-tooth #5)Reference

Engine RPM2500@2600Reference

Dimensions

Wheelbase150 cmReference

Weight1598 to 2116 poundsReference

Front tire6.00-12Reference

Rear tire9.5-18Reference

Standard tires (ag)Front: 6.00-12. Rear: 9.5-18Reference

Lawn/turf front24x8.50-12Reference

Lawn/turf rear315/75D-15Reference

ROPS Length273 cmReference

Cab Length283 cmReference

Width110 cmReference

Height (ROPS)229 cmReference

Height (cab)209 cmReference

Ground clearance26 cmReference

Front tread83 cmReference

Rear tread85 to 109 cmReference

ROPS hydro749 kgReference

Cab hydro959 kgReference

B2530 Serial Numbers

Location:Serial number plate on the right side of the tractor frame, above and forward of the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Speeds

With 9.5-16 rear tires. Reverse speeds are 1% faster than forward.Reference

Fwd-Low:Fwd-Med:Fwd-High:Rev-Low:Rev-Med:Rev-High;:2.6:4.8:1.5:2.1:3.9:10Reference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity68.5 ciReference

Power

Max Power24.7 hpReference

Rated Power21.6 hpReference

PTO

PTO Power19.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Rear PTO speed540@2,592 RPMReference

Engine Speed on Mid PTO speed2,500@2,600 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)9.5 gpmReference

Maximum operating pressure2,205 psiReference

Steering & Implements flow4.1 gpm (5.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity969.8 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over Cab209 cmReference

Height Over ROPS229.1 cmReference

Overall Length283.5 cmReference

Overall Width110.5 cmReference

Overall weight749.8 kgReference

Wheels & tyres

Rear Wheel Type9.5-18Reference

Rear wheel tread range33.5 to 43.1 inchesReference

Front Wheel Type6.00-12.Reference

Front Wheel tread range83.6 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
