Tractor · 2018Unverified

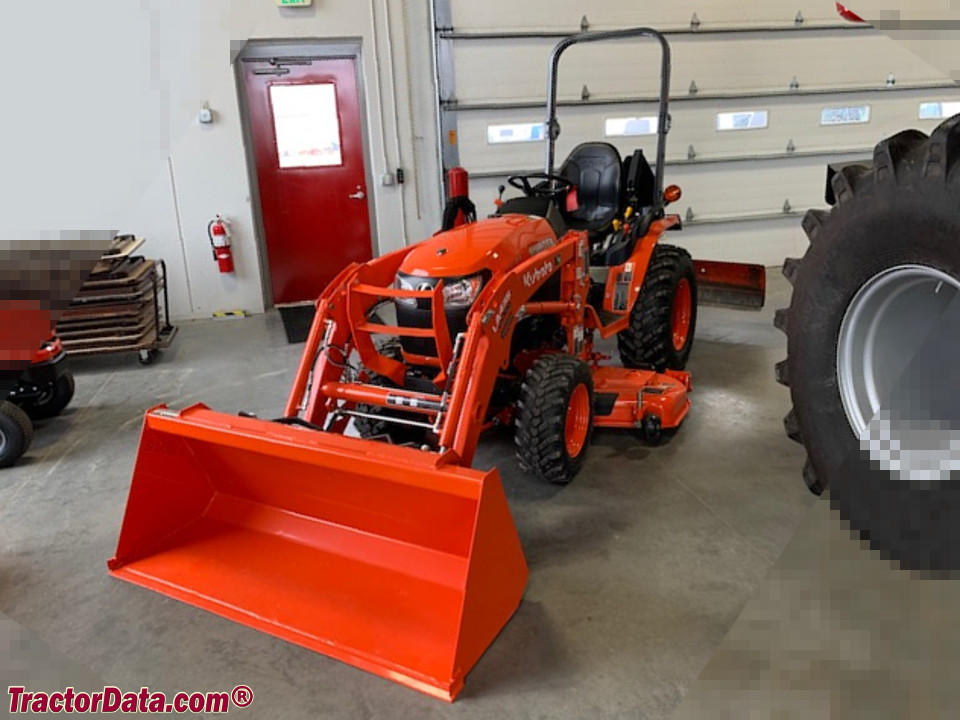

Kubota B2601
Kubota B2601 — B-01 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
740 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $15,690 in 2019Reference
Four-wheel driveReference
Final drivesspur gearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 1.1L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)19.0 kWReference
Kubota D1105Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)19.0 kWReference
Air cleanerdual dry elementReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.1 LReference
Coolant capacity3.8 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity11.4 LReference
PTO & Hydraulics
PTO (claimed)14.5 kWReference
Typeopen centerReference
Total flow31.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)820 kgReference
Rear lift (at 24"/610mm)640 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Dimensions
Wheelbase155 cmReference
Weight740 kgReference
Front tire7-12Reference
Rear tire11.2-16Reference
Standard tires (ag)Front: 7-12. Rear: 11.2-16Reference
Optional tires (ag)Front: 6-12. Rear: 9.5-16Reference
Lawn/turf front22x8.50-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear31x15.5-15Reference
Lawn/turf rear33x12.5-15Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length240 cmReference
Width124 cmReference
Height (ROPS)215 cmReference
Ground clearance32 cmReference
Kubota B2601 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Kubota LA434 loaderReference
Kubota LA435 loaderReference
BackhoeReference
Kubota BH70 Backhoe
Backhoe typeKubota BH70 BackhoeReference
Transport height185 cmReference
2-Foot flat digging depth216 cmReference
Reach from pivot296 cmReference
Loading height156 cmReference
Swing Arc140°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
