Tractor · 2008Unverified

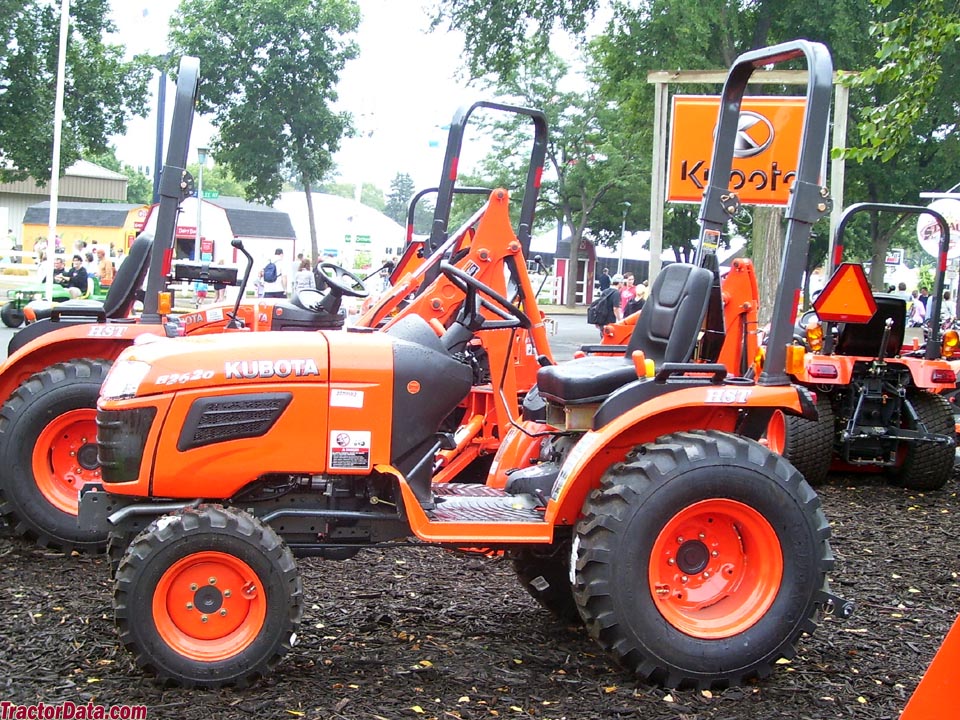

Kubota B2620

Kubota B2620 — B2x20 Series · 26 hp. Reference specifications; pending source verification.

The Kubota B2620 is a compact tractor with a 26 hp rating, placing it among the smaller options in its class. Manufactured from 2008 to 2015, this model features a 3-cylinder diesel liquid-cooled engine, transmitting power to all four wheels via a hydrostatic transmission. The tractor's weight is 704 kg, and it is suited for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
26 hp
Max power
26 hp
Weight
704 kg

Catalogue coverage

Variants represented
2
Richest spec table
118 rows
Recorded power
26 hp
Recorded weight
704 kg
Transmissions
hydrostatic
Production years
2008-2015
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Compact Utility tractorReference
Original price$13,888 (2011)Reference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Sunshade optional.Reference

Engine

Kubota 1.1L 3-cyl dieselReference
Engine (gross)19.4 kWReference
Kubota D1105Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke79 x 79 mmReference
Power (gross)19.4 kWReference
Air cleanerdual paper elementsReference
Rated RPM2800Reference
Starter volts12Reference
Oil capacity3.0 LReference
Coolant capacity3.9 LReference
Fuel TypedieselReference
No of Cylinders3 CylinderReference
Rated engine speed2,800 rpmReference
Bore and stroke3.1x3.1 inchesReference
Cooling systemliquid-cooledReference

Transmission

hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity15.1 LReference
Transmission TypeHSTReference
forward and reverse optionshydrostatic - infinite (3-range)F and infinite (3-range)RReference
Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)14.2 kWReference
Hydraulic system15.1 LReference
Typeopen centerReference
Capacity15.1 LReference
Valves1 or 2Reference
Pump flow17.8 lpmReference
Total flow31.4 lpmReference
Steering flow13.6 lpmReference
Rear Type1Reference
Rear lift (at ends)615 kgReference
Rear lift (at 24"/610mm)479 kgReference
Rear PTOliveReference
Rear PTO Type540/960 (1.375)Reference
Engine RPM540@2773Reference
Engine RPM960@2722Reference
Mid PTOoptionalReference
Mid PTO Type2500Reference
Engine RPM2500@2750Reference

Capacities

Fuel25.0 LReference
Fuel tank25 LReference
Crankcase oil volume3.2 qtsReference

Dimensions

Wheelbase156 cmReference
Weight704 kgReference
Front tire7-12Reference
Rear tire11.2-16Reference
Standard tires (ag)Front: 7-12. Rear: 11.2-16Reference
Optional tires (ag)Front: 6.00-12. Rear: 9.5-16Reference
Lawn/turf front22x8.50-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear33x12.50-15Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length241 cmReference
Width124 cmReference
Ground clearance32 cmReference
Front tread81 cmReference
Rear tread94 cmReference

Kubota B2620 attachments

54" mid-mount mower deckReference
60" mid-mount mower deckReference

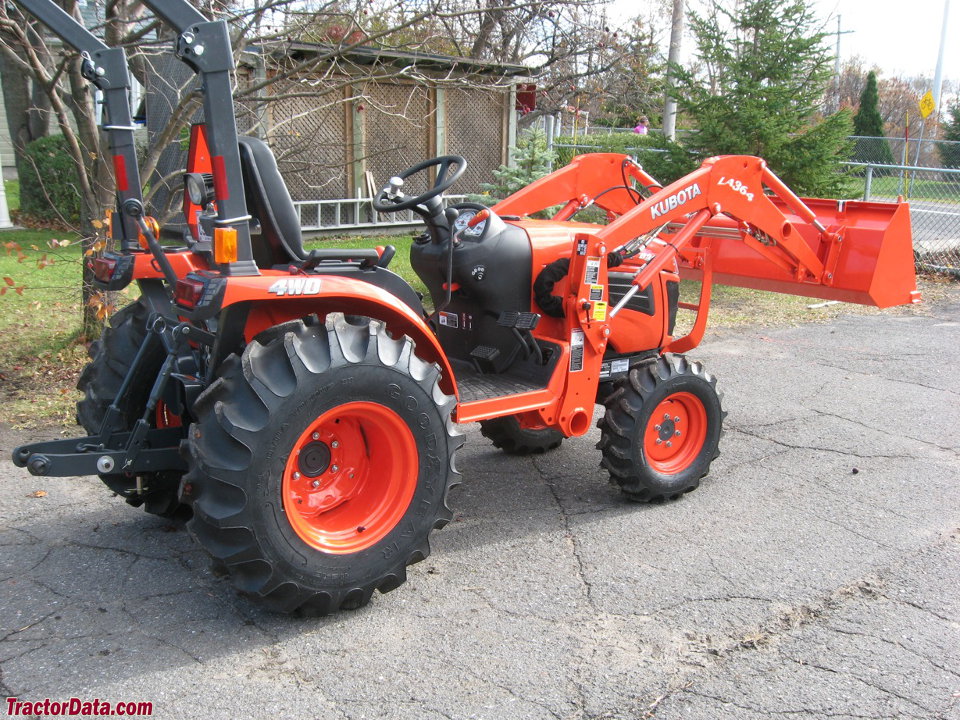

front-end loaderReference
backhoeReference

B2620 Serial Number Location

Serial number plate on the right side of the B2620 frame, above the front axle.Reference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps14.5Reference
Charging amps40 (optional)Reference
Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference

Kubota BH65 Backhoe

Backhoe typeKubota BH65 BackhoeReference
Digging depth203 cmReference
2-Foot flat digging depth200 cmReference
8-Foot flat digging depth143 cmReference
Reach from pivot276 cmReference
Loading height163 cmReference
Bucket force1172 kgReference
Dipperstick force765 kgReference

General

Make & ModelKubotaReference
Rollover protective structureTwo-post foldable ROPSReference

Power

Max Power26 hpReference

PTO

PTO Power19 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Mid PTO RPM2,500 RPMReference
Engine Speed on Mid PTO speed2,500@2,750 RPMReference
Engine Speed on Rear PTO speed540@2,773 RPMReference

Steering & brakes

Brakeswet discReference
Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)8.3 gpmReference
Hydraulics Typeopen centerReference
Remote Valves1 or 2 ValvesReference
Steering & Implements flow3.6 gpm (4.7 gpm)Reference
Rear Hitch category (SAE designation)Category 1Reference
Rear Hitch maximum lift capacity615.1 kgReference

Dimensions & weight

Overall Length241.6 cmReference
Overall Width124.5 cmReference
Overall weight704.9 kgReference

Wheels & tyres

Rear Wheel Type11.2-16Reference
Rear wheel tread range95 cmReference
Front Wheel Type7-12.Reference
Front Wheel tread range81.5 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
