Tractor · 2006Unverified

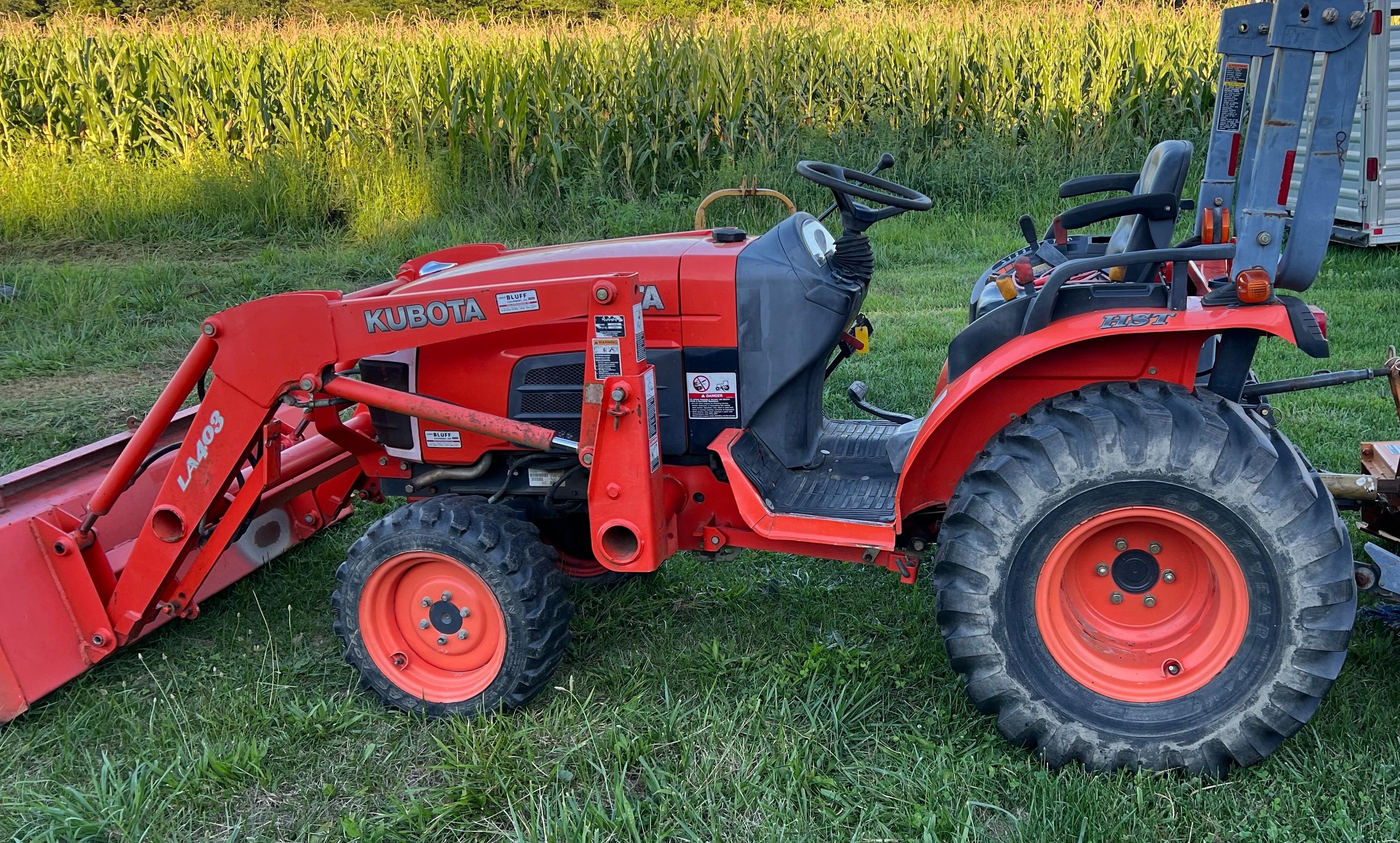

Kubota B2630

Name: Kubota B2630
Brand: Kubota

Kubota B2630 — B30 Series · 26 hp. Reference specifications; pending source verification.

The Kubota B2630 is a compact tractor rated at 26 hp, making it a suitable option for smaller-scale applications. Manufactured from 2006 to 2012, it features a 3-cylinder diesel liquid-cooled engine driving through a four-wheel drive system with hydrostatic transmission. The listed weight of the tractor is 810 kg, while its capabilities are suited to operating areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Max power

26 hp

Weight

810 kg

Catalogue coverage

Variants represented

Richest spec table

115 rows

Recorded power

26 hp

Recorded weight

810 kg

Transmissions

hydrostatic

Production years

2006-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $16,433 in 2011Reference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS. Folding ROPS optional.Reference

Engine

Kubota 1.1L 3-cyl dieselReference

Engine (gross)19.4 kWReference

Kubota D1105-E2-D21Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

EmissionsInterim Tier IVReference

Power (gross)19.4 kWReference

Air cleanerdual paper elementReference

Rated RPM2800Reference

Starter volts12Reference

Oil capacity3.0 LReference

Coolant capacity4.0 LReference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed2,800 RPMReference

Emissions complianceInterim Tier IVReference

Bore and stroke3.071x3.087 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity15.1 LReference

Transmission TypeHSTReference

forward and reverse optionshydrostatic - infinite (3-range)F and infinite (3-range)RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)14.5 kWReference

Hydraulic system15.1 LReference

Typeopen centerReference

Capacity15.1 LReference

Rear valves1Reference

Front valves1Reference

Pump flow21.2 lpmReference

Total flow37.1 lpmReference

Steering flow16.0 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)970 kgReference

Rear lift (at 24"/610mm)760 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2768Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@2753Reference

Capacities

Fuel30.7 LReference

Fuel tank30.7 LReference

Crankcase oil volume3.2 qtsReference

Dimensions

Wheelbase166 cmReference

Weight810 kgReference

Front tire7-12Reference

Rear tire12.4-16Reference

Ag front7-12Reference

Ag rear12.4-16Reference

Length251 cmReference

Width136 cmReference

Ground clearance37 cmReference

Kubota B2630 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps14.5Reference

Battery volts12Reference

Battery AH36Reference

Battery size36 AHReference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Kubota-recommended attachments for the B2630 included 51 and 63-inch front-mount snowblowers, 51 and 64-inch rear snowblowers, 60 and 72-inch front blades, 40 and 50-inch tillers, and a 56.5-inch front sweeper. Rear ballast on the three-point (up to 500 pounds) is recommended when using front-mounted attachments.Reference

Kubota BH76 Backhoe

Backhoe typeKubota BH76 BackhoeReference

Digging depth234 cmReference

2-Foot flat digging depth231 cmReference

8-Foot flat digging depth176 cmReference

Reach from pivot306 cmReference

Loading height163 cmReference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post fixed ROPS. Foldable ROPS optional.Reference

Power

Max Power26 hpReference

PTO

PTO Power19.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Mid PTO speed2,500@2,753 RPMReference

Engine Speed on Rear PTO speed540@2,768 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)9.8 gpmReference

Hydraulics Typeopen centerReference

Steering & Implements flow4.23 gpm (5.6 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity970.2 kgReference

Dimensions & weight

Overall Length252 cmReference

Overall Width136.4 cmReference

Overall weight810.1 kgReference

Wheels & tyres

Rear Wheel Type12.4-16Reference

Front Wheel Type45,485Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
