Tractor · 2010Unverified

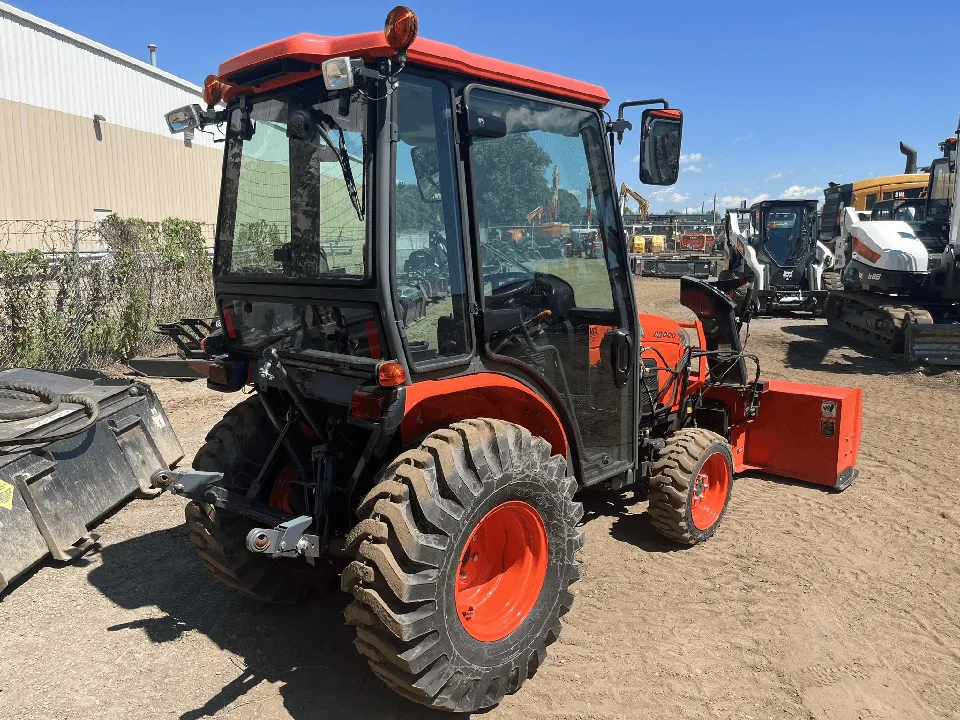

Kubota B3000
Kubota B3000 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1030 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockrear standardReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank31.0 LReference
Engine (gross)22.4 kWReference
Kubota V1505Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)22.4 kWReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.1 LReference
Coolant capacity4.3 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity18.0 LReference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Typeopen centerReference
Rear valves1Reference
Front valves1Reference
Pump flow34.4 lpmReference
Rear TypeIReference
Controlquarter-inching valveReference
Controlposition controlReference
Rear lift (at ends)970 kgReference
Rear lift (at 24"/610mm)760 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase166 cmReference
Weight1030 kgReference
Length263 cmReference
Width136 cmReference
Height (cab)214 cmReference
Ground clearance37 cmReference
Kubota B3000 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
Transport height204 cmReference
2-Foot flat digging depth234 cmReference
Reach from pivot316 cmReference
Loading height169 cmReference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
