Tractor · 2006Unverified

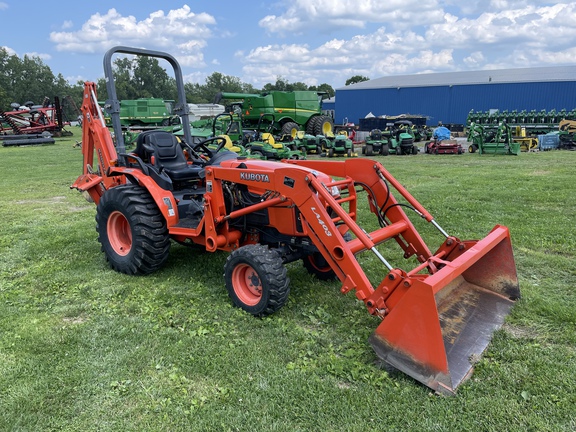

Kubota B3030

Kubota B3030 — B30 Series · 30 hp. Reference specifications; pending source verification.

The Kubota B3030 is a compact tractor model, rated at 30 hp. It was manufactured from 2006 to 2012. The tractor features a 4-cylinder diesel liquid-cooled engine and a hydrostatic transmission, driving through four-wheel drive. Its listed weight is between 1852 and 2271 pounds, suitable for tasks involving up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
30 hp
Max power
30 hp
Weight
1852 to 2271 pounds

Catalogue coverage

Variants represented
2
Richest spec table
128 rows
Recorded power
30 hp
Recorded weight
840 kg
Transmissions
hydrostatic
Production years
2006-2012
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference
Compact Utility tractorReference
Original price$17,889 (2011 ROPS)Reference
Original price$22,516 (2011 Cab)Reference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Folding ROPS optional. Cab optional.Reference

Variants

B3030HSDROPSReference
B3030HSDCcabReference

Engine

Kubota 1.5L 4-cyl dieselReference
Engine (gross)22.4 kWReference
Kubota V1505-E2-D2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
EmissionsInterim Tier IVReference
Power (gross)22.4 kWReference
Air cleanerdual paper elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.1 LReference
ROPS Coolant capacity4.4 LReference
Cab Coolant capacity5.2 LReference
Fuel TypedieselReference
No of Cylinders4 CylinderReference
Rated engine speed2,600 RPMReference
Emissions complianceInterim Tier IVReference
Bore and stroke3.071x3.087 inchesReference
Cooling systemliquid-cooledReference

Transmission

hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity15.1 LReference
Transmission TypeHSTReference
forward and reverse optionshydrostatic - infinite (3-range)F and infinite (3-range)RReference
Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)17.2 kWReference
Hydraulic system15.1 LReference
Typeopen centerReference
Capacity15.1 LReference
Rear valves1Reference
Front valves1Reference
Pump flow19.7 lpmReference
Total flow34.4 lpmReference
Steering flow14.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)970 kgReference
Rear lift (at 24"/610mm)760 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2592Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Engine RPM2500@2600Reference

Capacities

Fuel30.7 LReference
Fuel tank30.7 LReference
Crankcase oil volume4.3 qtsReference

Dimensions

Wheelbase166 cmReference
Weight1852 to 2271 poundsReference
Front tire7-12Reference
Rear tire12.4-16Reference
Ag front7-12Reference
Ag rear12.4-16Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear13.6-16Reference
Industrial front23x8.50-14Reference
Industrial rear12.4-16Reference
ROPS Length251 cmReference
Cab Length263 cmReference
Width136 cmReference
ROPS Weight840 kgReference
Cab Weight1030 kgReference
Ground clearance37 cmReference

Kubota B3030 attachments

60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps14.5Reference
Battery volts12Reference
Battery AH36Reference

Attachment overview

60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Kubota-recommended attachments for the B3030 included 51 and 63-inch front-mount snowblowers, 51 and 64-inch rear snowblowers, 60 and 72-inch front blades, 40 and 50-inch tillers, and a 56.5-inch front sweeper. Rear ballast on the three-point (up to 500 pounds) is recommended when using front-mounted attachments.Reference

Kubota BH76 Backhoe

Backhoe typeKubota BH76 BackhoeReference
Transport height204 cmReference
Digging depth234 cmReference
2-Foot flat digging depth231 cmReference
8-Foot flat digging depth176 cmReference
Reach from pivot306 cmReference
Loading height163 cmReference

General

Make & ModelKubotaReference
Cruise controlAvailableReference
Rollover protective structureTwo-post fixed ROPS. Foldable ROPS optional.Reference

Power

Max Power30 hpReference

PTO

PTO Power23 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Mid PTO RPM2,500 RPMReference
Engine Speed on Rear PTO speed540@2,592 RPMReference
Engine Speed on Mid PTO speed2,500@2,600 RPMReference

Steering & brakes

BrakesWet disc brakesReference
Steering typepowerReference

Hydraulics

Pump Rated Output (total)9.1 gpmReference
Hydraulics Typeopen centerReference
Steering & Implements flow3.9 gpm (5.2 gpm)Reference
Rear Hitch category (SAE designation)Category IReference
Rear Hitch maximum lift capacity970.2 kgReference

Dimensions & weight

Overall Length263.9 cmReference
Overall Width136.4 cmReference
Overall weight840.1 kgReference

Wheels & tyres

Rear Wheel Type12.4-16Reference
Front Wheel Type45,485Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
