Tractor · 2008Unverified

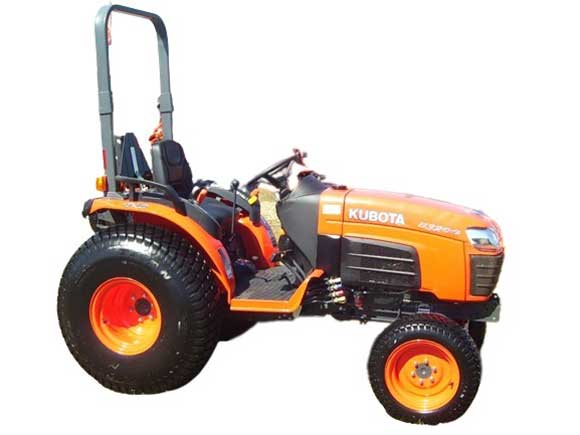

Kubota B3200
Kubota B3200 — Compact Utility tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
800 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Original price was $15,008 in 2011Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Optional sunshade.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
Engine (gross)23.9 kWReference
Kubota V1505Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)23.9 kWReference
Air cleanerdual paper elementsReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity5.4 LReference
Coolant capacity4.4 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity15.8 LReference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Hydraulic system14.4 LReference
Typeopen centerReference
Capacity14.4 LReference
Valves0 to 2Reference
Pump flow25.4 lpmReference
Total flow36.7 lpmReference
Steering flow12.1 lpmReference
Rear TypeIReference
Controlquarter-inching valveReference
Rear lift (at ends)750 kgReference
Rear lift (at 24"/610mm)589 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOoptionalReference
Mid PTO Type2500Reference
Engine RPM2500@2578Reference
Capacities
Fuel30.7 LReference
Dimensions
Wheelbase166 cmReference
Weight800 kgReference
Front tire7-12Reference
Rear tire12.4-16Reference
Standard tires (ag)Front: 7-12. Rear: 12.4-16Reference
Length251 cmReference
Width136 cmReference
Ground clearance37 cmReference
Kubota B3200 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
B3200 Serial Number Location
Serial number on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps14.2Reference
Charging amps40Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Kubota BH76 Backhoe
Backhoe typeKubota BH76 BackhoeReference
Digging depth234 cmReference
2-Foot flat digging depth231 cmReference
8-Foot flat digging depth176 cmReference
Reach from pivot306 cmReference
Loading height163 cmReference
Bucket force1514 kgReference
Dipperstick force951 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
