Tractor · 2013Unverified

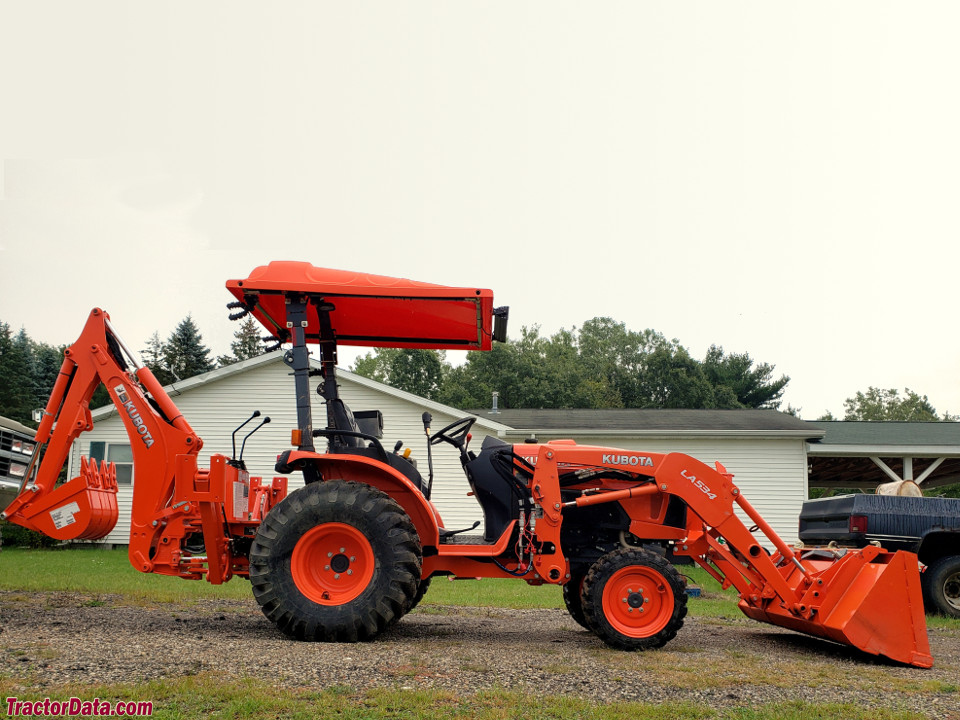

Kubota B3350SU
Kubota B3350SU — B50 Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
850 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $17,831 in 2014Reference
The B3350SU Special Utility was a low-cost version of the B3350. It did not have a mid PTO and the hydraulics did not have position control.Reference
Final drivesspur gearReference
Differential lockstandardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Variants
B3350HSDROPSReference
B3350HSDCCabReference
B3350SUHSDspecial utilityReference
Engine
Kubota 1.5L 4-cyl dieselReference
Fuel tank27.6 LReference
Engine (gross)24.6 kWReference
Kubota V1505Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke79 x 79 mmReference
EmissionsTier IVReference
Emission controldiesel particulate filter (DPF)Reference
Power (gross)24.6 kWReference
Air cleanerdual paper elementsReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.8 LReference
Coolant capacity4.3 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity15.1 LReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Typeopen centerReference
Valves1Reference
Pump flow18.9 lpmReference
Total flow32.9 lpmReference
Steering flow14.0 lpmReference
Rear TypeIReference
Controlquarter-inching valceReference
Rear lift (at ends)970 kgReference
Rear lift (at 24"/610mm)760 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase166 cmReference
Weight850 kgReference
Front tire7-12Reference
Rear tire12.4-16Reference
Standard tires (ag)Front: 7-12. Rear: 12.4-16Reference
Industrial front25x8.5-14Reference
Industrial rear15-19.5Reference
Length257 cmReference
Width136 cmReference
Height (ROPS)199 cmReference
Ground clearance37 cmReference
Kubota B3350SU attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps60Reference
Battery CCA430Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
2-Foot flat digging depth233 cmReference
Reach from pivot316 cmReference
Loading height169 cmReference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
