Tractor · 1987Unverified

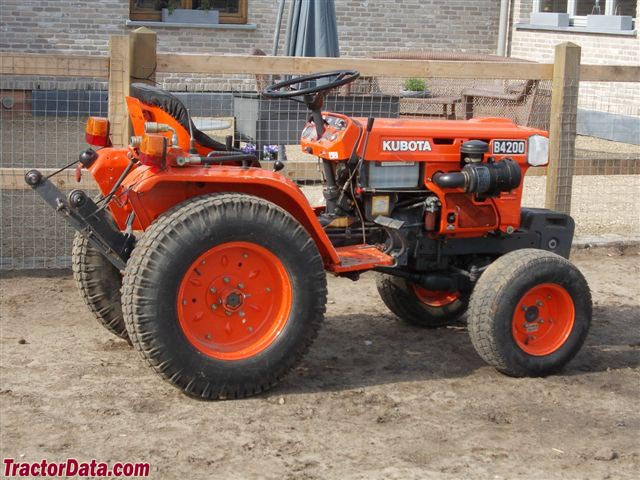

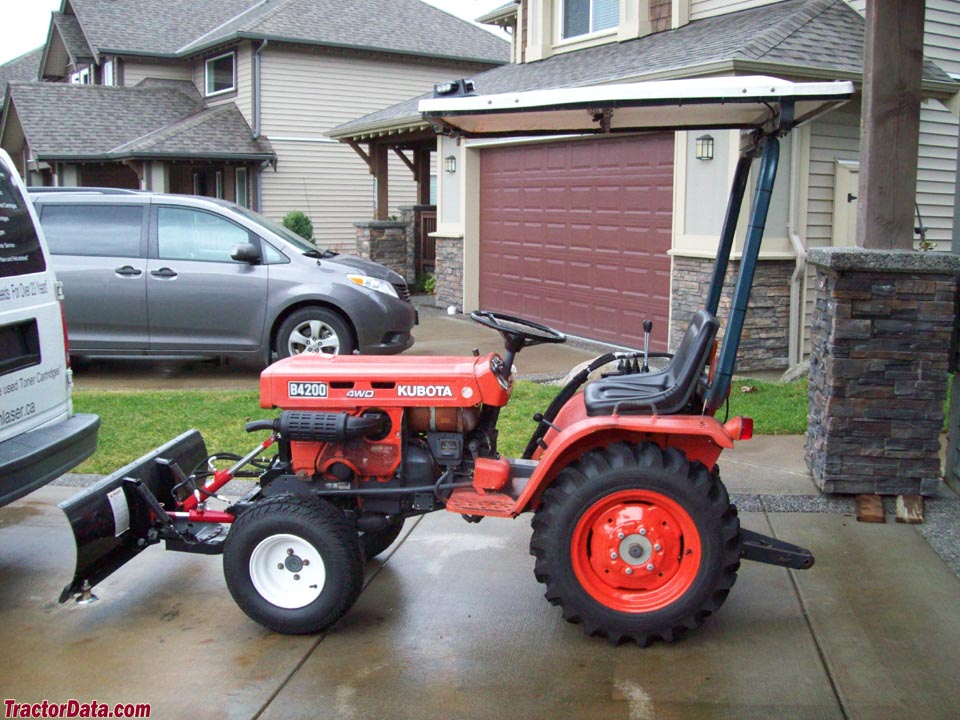

Kubota B4200
Kubota B4200 — B Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
420 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Kubota 0.6L 2-cyl dieselReference
Engine (gross)9.3 kWReference
Kubota Z-600AReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.6 LReference
Bore/Stroke70 x 72 mmReference
Power (gross)9.3 kWReference
Rated RPM2600Reference
Torque34.9 NmReference
Torque RPM2000Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears (1-3), plus reverse (R), in two ranges.Reference
PTO & Hydraulics
PTO (claimed)7.5 kWReference
Hydraulic system0.0 LReference
Capacity0.0 LReference
Pump flow10.4 lpmReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM860@2600Reference
Mid PTO Type2563Reference
Capacities
Fuel7.9 LReference
Dimensions
Wheelbase122 cmReference
Weight420 kgReference
Front tire4.5-10Reference
Rear tire7-16Reference
Weight90 kgReference
Ag front4.5-10Reference
Ag rear7-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear212/80D-15Reference
Length221 cmReference
Width84 cmReference
Height (steering wheel)112 cmReference
Shipping weight420 kgReference
Ground clearance22 cmReference
Front tread68 cmReference
Rear tread64/73/80 cmReference
Kubota B4200 attachments
44" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
44" mid-mount mower deckReference
Front-end loaderReference
44" Mower deck
Typemid-mount Kubota RC44-42Reference
Type3-bladeReference
Cutting width111 cmReference
Overall width143 cmReference
Cut height3 to 8 cmReference
Speeds
With 7-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
