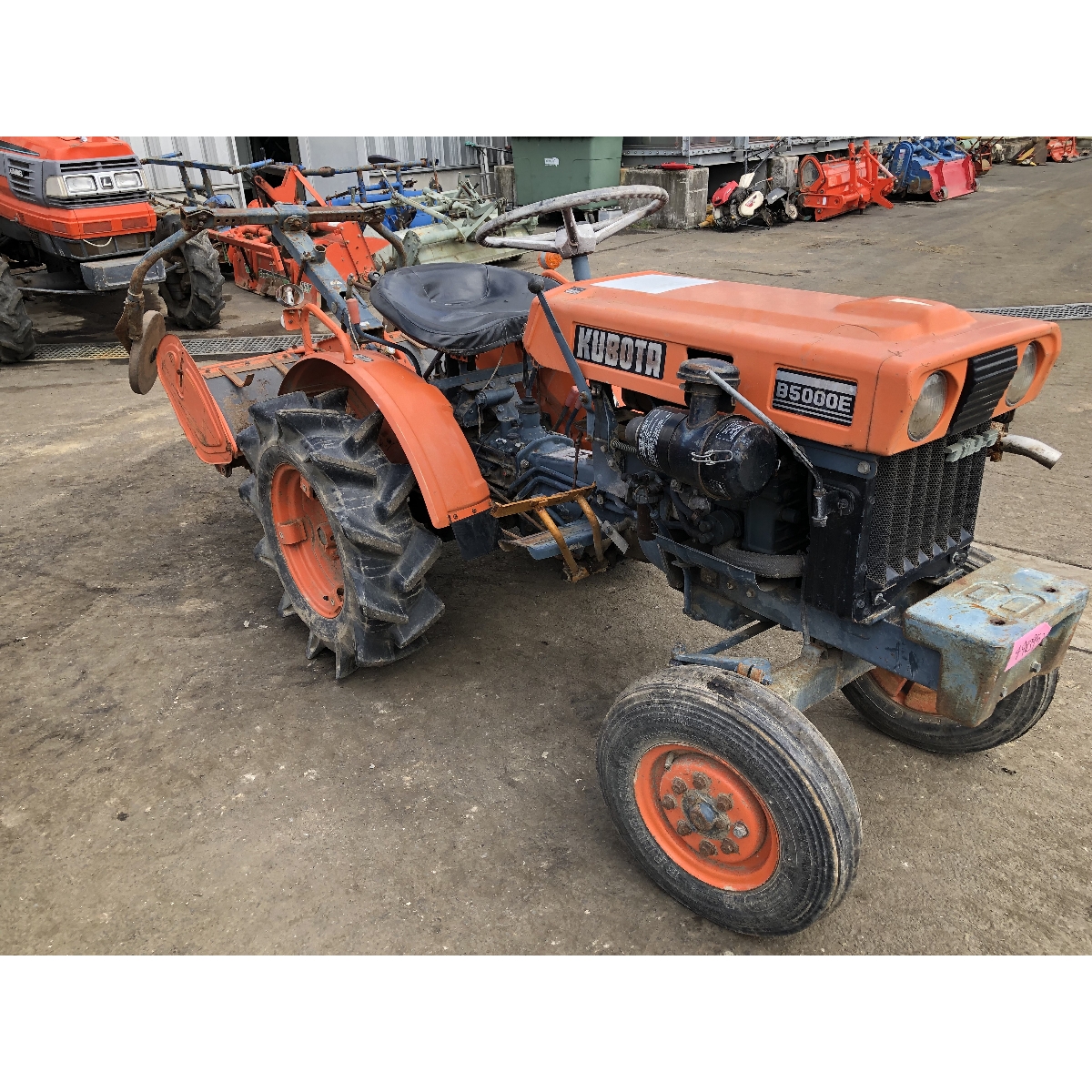

The Kubota B5000 is a tractor with an approximate power rating of 9 hp, positioning it at the lower end of its class. This model was produced from 1973 to 1977. It features a 2-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 6-speed gearbox, and has an operating weight of 408 kg. The B5000 is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
9 hp
Weight
408 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
9 hp
Recorded weight
408 kg
Transmissions
6-speed unsynchronized gear
Production years
1973-1977
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
B5000DT4WDReference
B5000E2WDReference
Engine
Kubota 0.5L 2-cyl dieselReference
Engine (net)6.7 kWReference
Kubota Z500Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Power (net)6.7 kWReference
Rated RPM3000Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)6.0 kWReference
Rear TypeIReference
Rear PTO Type540/860/1000 (1.375)Reference
Dimensions
Wheelbase116 cmReference
Weight408 kgReference
Front tire4.00-10Reference
Rear tire7-14Reference
Ag front4.00-10Reference
Ag rear7-14Reference
Length190 cmReference
Width104 cmReference
Height111 cmReference
Ground clearance21 cmReference
Front tread76 cmReference
Rear tread73 to 84 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
