Tractor · 1976Unverified

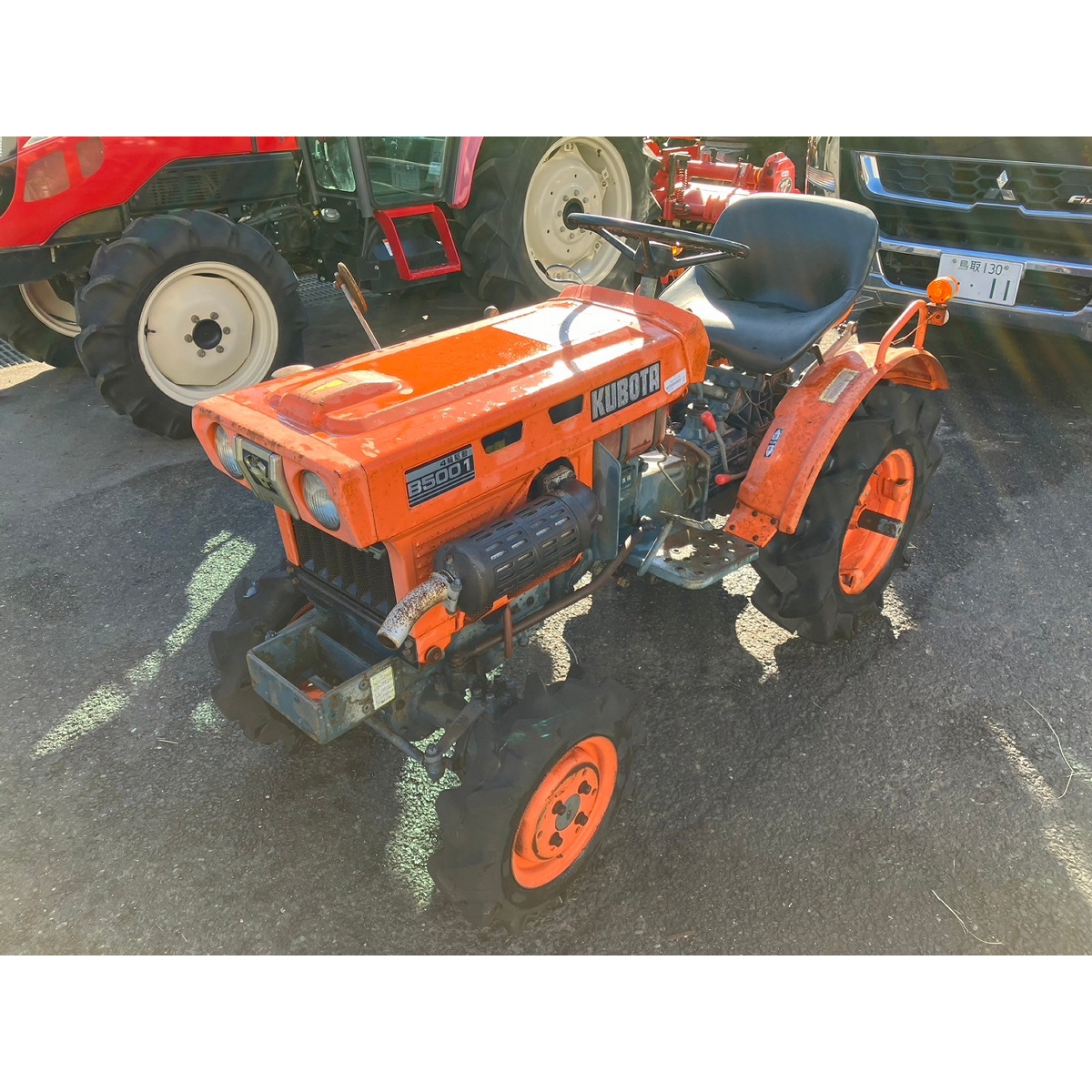

Kubota B5001
Kubota B5001 — Sub-Compact Utility tractor · 9 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
9 hp
Weight
860 to 882 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
B5001DT4WDReference
B5001E2WDReference
Engine
Kubota 0.5L 2-cyl dieselReference
Fuel tank7.9 LReference
Engine (net)7.0 kWReference
Kubota Z500Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Power (net)7.0 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)6.0 kWReference
Rear TypeIReference
Rear PTO Type540/860/1000 (1.375)Reference
Dimensions
Wheelbase117 cmReference
Weight860 to 882 poundsReference
Front tire4.00-9Reference
2WD Rear tire7-14Reference
2WD Standard tires (ag)Front: 4.00-9. Rear: 7-14Reference
4WD Standard tires (ag)Front: 4.00-10. Rear: 7-14Reference
Length182 cmReference
Width84 cmReference
Height (steering wheel)110 cmReference
2WD Weight390 kgReference
4WD Weight400 kgReference
Ground clearance21 cmReference
Front tread76 cmReference
Rear tread73 to 84 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
