Tractor · 1978Unverified

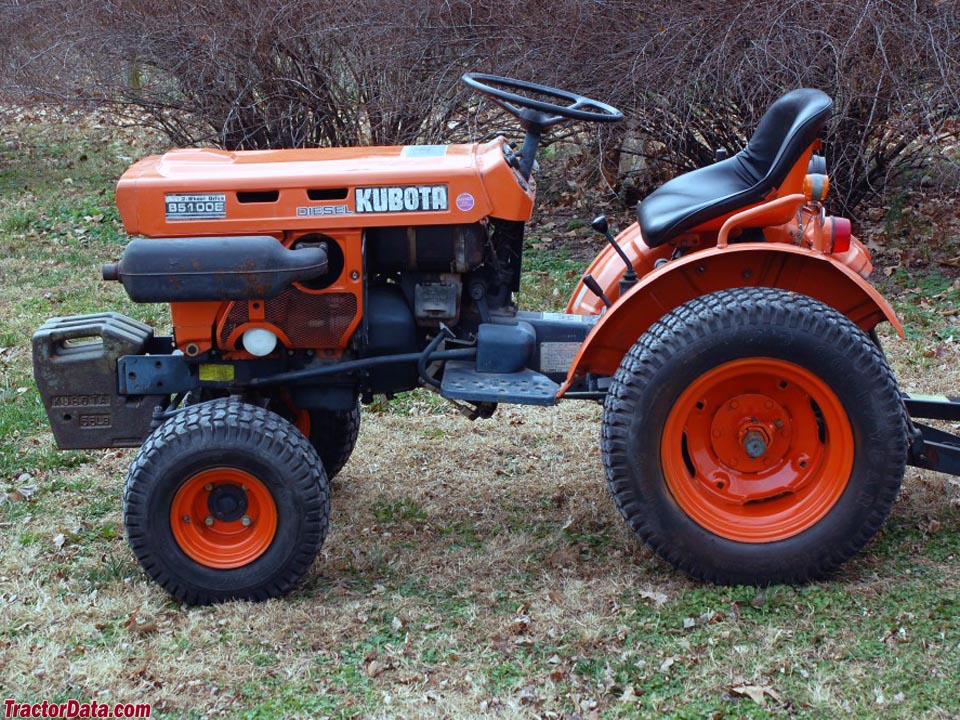

Kubota B5100
Kubota B5100 — Sub-Compact Utility tractor · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
805 to 893 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical wet disc brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Variants
B5100DT4WDReference
B5100E2WDReference
Engine
Kubota 0.5L 2-cyl dieselReference
Fuel tank7.9 LReference
Engine8.9 kWReference
Kubota Z500-1AReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Bore/Stroke67 x 70 mmReference
Power8.9 kWReference
Pre-heatingglow plugsReference
Rated RPM3000Reference
Starter volts12Reference
Starter power0.8 kWReference
Coolant capacity3.0 LReference
Oil capacity2.3 LReference
Oil change75 hReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity8.5 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)7.5 kWReference
Typeopen centerReference
Pump flow12.0 lpmReference
Rear TypeIReference
Rear lift136 kgReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Front PTO Type3000Reference
Dimensions
Wheelbase118 cmReference
Weight805 to 893 poundsReference
Front tire4.00-9Reference
Rear tire7.00-16Reference
Ag front4.00-9 (2WD)Reference
Ag front4.50-10 (4WD)Reference
Ag rear7.00-16Reference
Lawn/turf front18x6.50-8Reference
Lawn/turf rear27x8.50-15Reference
Length181 cmReference
Width92 cmReference
Height (steering wheel)112 cmReference
2WD Weight365 kgReference
4WD Weight405 kgReference
4WD Clearance (front axle)21 cmReference
2WD Clearance (rear axle)26 cmReference
2WD Front tread66 cmReference
4WD Front tread67 cmReference
Rear tread63/73 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH35Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
