Tractor · 1978Unverified

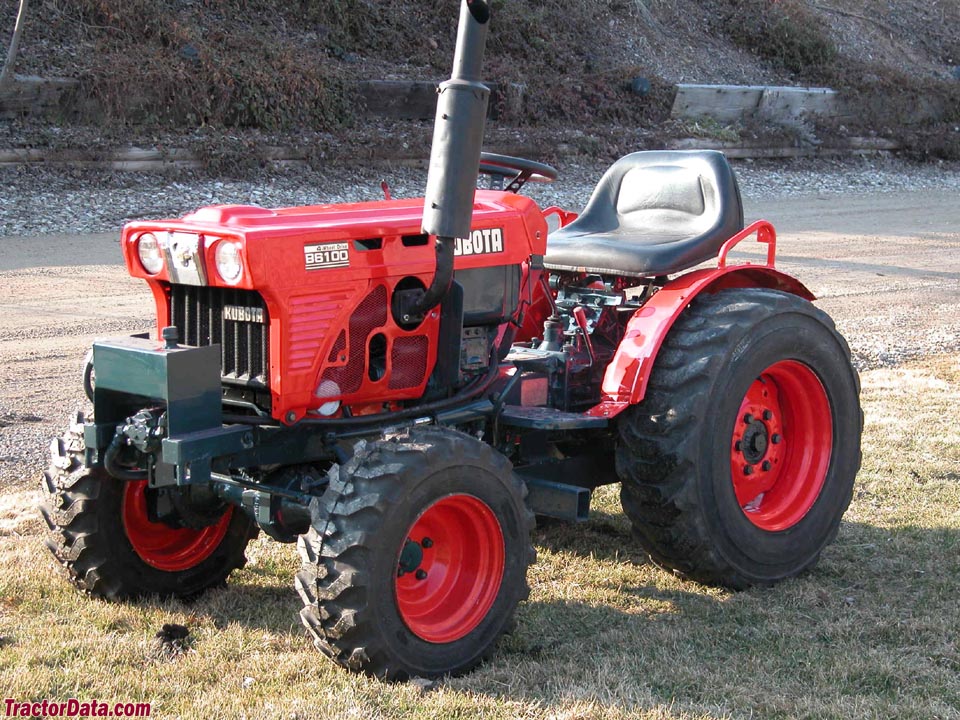

Kubota B6100
Kubota B6100 — Sub-Compact Utility tractor · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
970 to 1036 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical wet disc brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Variants
B6100D4WDReference
B6100E2WDReference
B6100HSThydrostaticReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine10.4 kWReference
Kubota D650-AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke64 x 70 mmReference
Power10.4 kWReference
Rated RPM2800Reference
Starter volts12Reference
Starter power0.8 kWReference
Coolant capacity4.6 LReference
Oil capacity3.9 LReference
Oil change75 hReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Oil capacity11.5 LReference
PTO & Hydraulics
PTO (claimed)8.9 kWReference
Typeopen centerReference
Pump flow11.2 lpmReference
Rear TypeIReference
Rear lift181 kgReference
Rear PTOtransmissionReference
Rear PTO Type540/750/1000Reference
Front PTO Type2800Reference
Dimensions
2WD Wheelbase124 cmReference
4WD Wheelbase124 cmReference
Weight970 to 1036 poundsReference
Front tire6.90-9Reference
2WD Rear tire8.3-16Reference
Weight340 kgReference
2WD Standard tires (ag)Front: 6.90-9. Rear: 8.3-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 7.2-16Reference
2WD Lawn/turf front20x8.00-10Reference
4WD Lawn/turf front20.5x8.00-10Reference
2WD Lawn/turf rear29x12.00-15Reference
4WD Lawn/turf rear27x8.50-10Reference
Length194 cmReference
2WD Width92 cmReference
4WD Width97 cmReference
2WD Height (steering wheel)114 cmReference
4WD Height (steering wheel)113 cmReference
2WD Weight439 kgReference
4WD Weight469 kgReference
Ground clearance24 cmReference
4WD Clearance (front axle)24 cmReference
2WD Front tread69 cmReference
4WD Front tread78 cmReference
Rear tread66/71/76 cmReference
Kubota B6100 attachments
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Kubota B219 loaderReference
Kubota B1630 loaderReference
BackhoeReference
Kubota B670 Backhoe
Backhoe typeKubota B670 BackhoeReference
Transport height154 cmReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
2-Foot flat digging depth185 cmReference
Reach from pivot254 cmReference
Loading height152 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1088 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
