Tractor · 1977Unverified

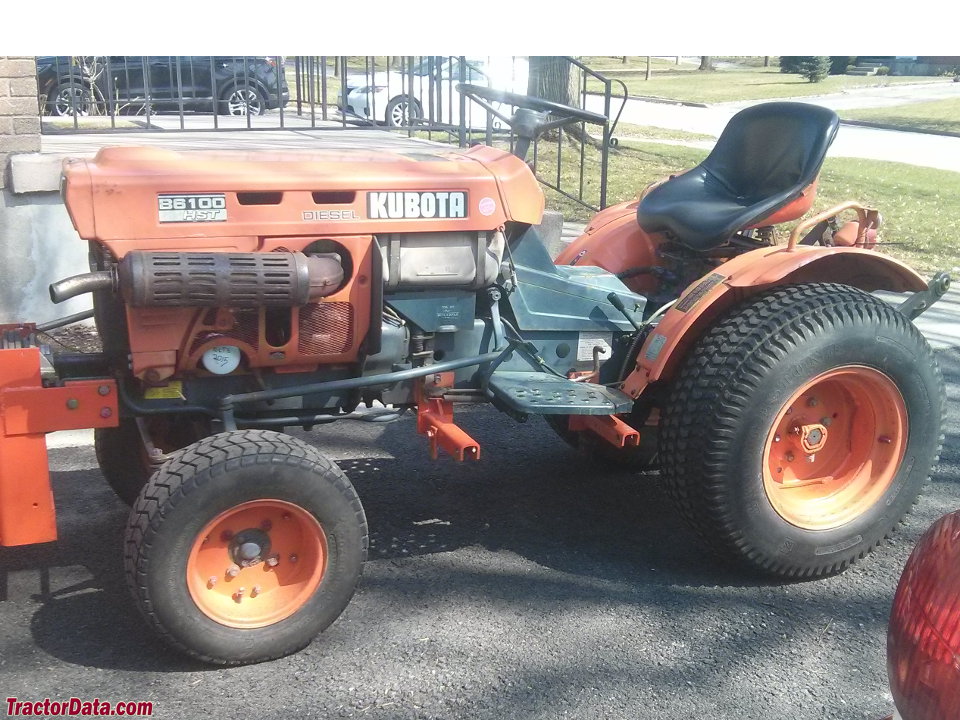

Kubota B6100HST
Kubota B6100HST — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1151 to 1265 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
SteeringmanualReference
Mechanical internal expanding brakesReference
Open operator station. Two-post ROPS available.Reference
Variants
B6100HST-D4WDReference
B6100HST-E2WDReference
B6100gear driveReference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine10.4 kWReference
Kubota D-650AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke64 x 70 mmReference
Power10.4 kWReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Starter power0.8 kWReference
Coolant capacity4.6 LReference
Oil capacity3.1 LReference
Oil change75 hReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity13.4 LReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540/850Reference
Engine RPM540@2800Reference
Engine RPM850@2800Reference
Mid PTO Type2450Reference
Engine RPM2450@2800Reference
Dimensions
4WD Wheelbase139 cmReference
2WD Wheelbase138 cmReference
Weight1151 to 1265 poundsReference
Front tire4.00-9Reference
Rear tire7-16 (2WD)Reference
Weight99 kgReference
Weight340 kgReference
Standard tires (ag)Front: 4.00-9. Rear: 7-16 (2WD)Reference
Standard tires (ag)Front: 4.00-9. Rear: 8-16 (2WD)Reference
Standard tires (ag)Front: 5-12. Rear: 7-16 (4WD)Reference
Standard tires (ag)Front: 6-12. Rear:Reference
Standard tires (ag)Front: 8-16 . Rear: (4WD)Reference
Lawn/turf front20x8.0-10 (2WD)Reference
Lawn/turf front20.5x8.00-10 (4WD)Reference
Lawn/turf rear29x12.00-15Reference
Length212 cmReference
Width98 cmReference
Height119 cmReference
4WD Weight573 kgReference
2WD Weight522 kgReference
4WD Ground clearance23 cmReference
2WD Ground clearance24 cmReference
Front tread72 cmReference
Front tread76 cmReference
Rear tread66/71/76 cmReference
Kubota B6100HST attachments
48" mid-mount mower deckReference
backhoeReference
B6100HST Serial Numbers
Location:Left side of the tractor, on the clutch housing.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Attachment overview
48" mid-mount mower deckReference
BackhoeReference
48" Mower deck
Typemid-mount Kubota MR4800Reference
Type3-blade with hydraulic liftReference
Cutting width121 cmReference
Overall width153 cmReference
Cut height3 to 10 cmReference
Kubota B670 Backhoe
Backhoe typeKubota B670 BackhoeReference
Transport height154 cmReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
2-Foot flat digging depth185 cmReference
Reach from pivot254 cmReference
Loading height152 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1088 kgReference
Speeds
With 8-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
