Tractor · 1983Unverified

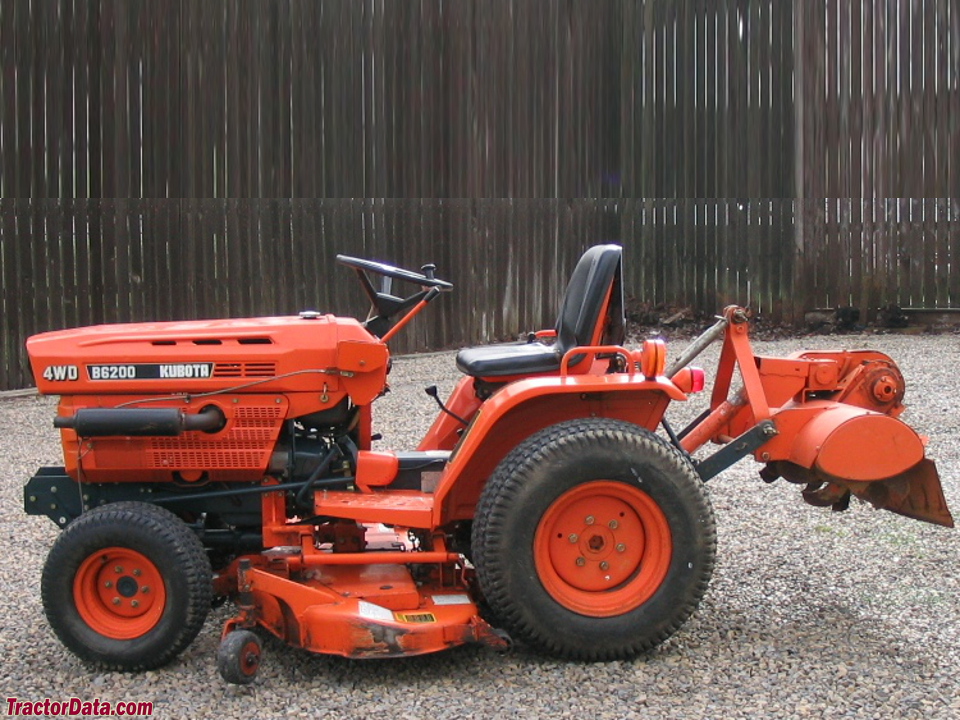

Kubota B6200
Kubota B6200 — B Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1102 to 1223 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Original price was $10,230 in 1990 with B6200HST-DReference
Two- or four-wheel driveReference
Manual steeringReference
Dry internal expanding brakesReference
Two-post ROPSReference
Variants
B6200E2WD gearReference
B6200D4WD gearReference
B6200HST-E2WD hydroReference
B6200HST-D4WD hydroReference
Engine
Kubota 0.9L 3-cyl dieselReference
Engine (gross)11.2 kWReference
Plows1Reference
Kubota D850Reference
dieselReference
3-cylinder 8-valveReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 70 mmReference
Power (gross)11.2 kWReference
Air cleanerdry paper elementReference
Rated RPM2500Reference
Starter volts12Reference
Starter power0.8 kWReference
Oil capacity3.4 LReference
Coolant capacity3.4 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch7.2-inch dry plateReference
Oil capacity12.0 LReference
Three gears (1-3) plus reverse with high and low ranges.Reference
PTO & Hydraulics
PTO (claimed)9.3 kWReference
Hydraulic system12.1 LReference
Hydraulic system13.6 LReference
Typeopen centerReference
Capacity12.1 LReference
Capacity13.6 LReference
Pressure112.4 barReference
Total flow15.1 lpmReference
Rear TypeIReference
Rear lift (at ends)469 kgReference
Rear lift (at 24"/610mm)319 kgReference
Rear PTO Type540/825Reference
Front PTOoptionalReference
Front PTO Type2500Reference
Capacities
Fuel14.4 LReference
Dimensions
Wheelbase147 cmReference
Weight1102 to 1223 poundsReference
Front tire4.5-10Reference
Rear tire7.00-16Reference
Ag front4.5-10Reference
Ag rear7.00-16Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length259 cmReference
Width114 cmReference
Height (exhaust)180 cmReference
2WD Shipping weight499 kgReference
4WD Shipping weight554 kgReference
Ground clearance21 cmReference
Front tread71 cmReference
Front tread78 cmReference
Rear tread69 to 90 cmReference
Kubota B6200 attachments
48" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
B6200 Serial Numbers
198350001 (4WD)Reference
198450972 (4WD)Reference
198551943 (4WD)Reference
198652916 (4WD)Reference
198753886 (4WD)Reference
198854856 (4WD)Reference
198310001 (2WD)Reference
198411022 (2WD)Reference
198520183 (2WD)Reference
198629344 (2WD)Reference
198738505 (2WD)Reference
198849666 (2WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota B1630C loaderReference
Kubota B1640 loaderReference
Kubota B1640A loaderReference
Kubota LA300 loaderReference
BackhoeReference
Mowers for the Kubota B6200 included the mid-mount RC48-62/RC60-72 (front PTO mount for gear-driven tractors), the RC48-62H/RC60-72H (mid PTO mount for hydrostatic tractors), and the B3538 48-inch rear-mounted finish mower. Three tillers were available: Kubota models FL850 (33.5 inch), B422 (42-inch), and the FL1000 (39.1 inch). Additional tillage tools included the B340 48-inch tandem disc harrow and B380 single-bottom (14-inch) moldboard plow. The B2551 snowblower could be front or rear mounted.Reference
Kubota L4520 Backhoe
Backhoe typeKubota L4520 BackhoeReference
Transport height155 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth201 cmReference
Reach from pivot248 cmReference
Loading height213 cmReference
Bucket Rotation170°Reference
Swing Arc177°Reference
Bucket force657 kgReference
Dipperstick force1308 kgReference
Speeds
With 8-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
