Tractor · 1983Unverified
Kubota B6200HST
Kubota B6200HST — B Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1180 to 1323 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Original price$10,230 (1990 B6200HST-D)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (B6200HST-D)Reference
SteeringmanualReference
Differential dry internal expanding brakesReference
Two-post ROPSReference
Variants
B6200E2WD gearReference
B6200D4WD gearReference
B6200HST-E2WD hydroReference
B6200HST-D4WD hydroReference
Engine
Kubota 0.9L 3-cyl dieselReference
Engine (gross)11.2 kWReference
Plows1 (12-inch)Reference
Kubota D850Reference
dieselReference
3-cylinder 8-valveReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 70 mmReference
Power (gross)11.2 kWReference
Air cleanerdry paper elementReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
Starter volts12Reference
Starter power0.8 kWReference
Oil capacity3.1 LReference
Coolant capacity2.8 LReference

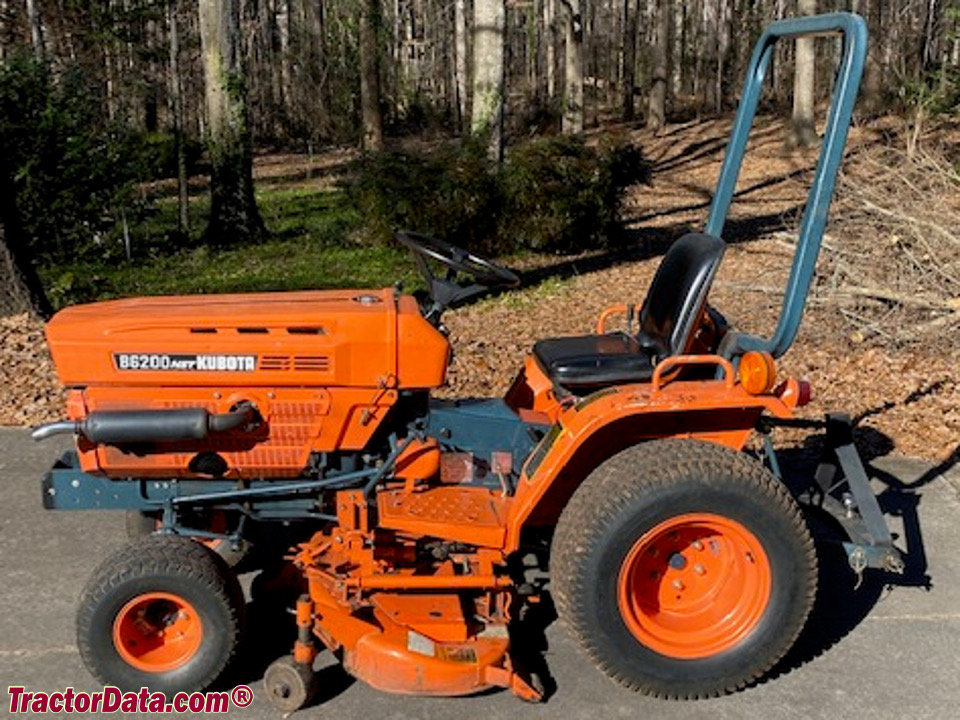

Image courtesy of Wesley WhiteReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity13.5 LReference
PTO & Hydraulics
PTO (claimed)9.3 kWReference
Hydraulic system13.6 LReference
Typeopen centerReference
Capacity13.6 LReference
Pressure112.4 barReference
Total flow15.1 lpmReference
Rear TypeIReference
Rear lift (at ends)469 kgReference
Rear lift (at 24"/610mm)319 kgReference
Rear PTO Type540/825 (1-3/8)Reference
Mid PTO Type1,546/2,455Reference
Front PTOoptionalReference
Front PTO Type2500Reference
Capacities
Fuel14.4 LReference
Dimensions
Wheelbase147 cmReference
Weight1180 to 1323 poundsReference
Front tire4.5-10Reference
Rear tire7-16Reference
Ag front4.5-10 (2WD)Reference
Ag front5.00-10 (2WD)Reference
Ag front5-12 (4WD)Reference
Ag front6-12 (4WD)Reference
Ag rear7-16Reference
Ag rear8-16Reference
Lawn/turf front18x9.50-8 (2WD)Reference
Lawn/turf front20.5x8.00-10 (4WD)Reference
Lawn/turf rear29x12.00-15Reference
Length259 cmReference
Width114 cmReference
Height (exhaust)180 cmReference
Shipping weight535 kgReference
Shipping weight600 kgReference
Ground clearance21 cmReference
Front tread71 cmReference
Front tread78 cmReference
Rear tread69 to 90 cmReference
Kubota B6200HST attachments
60" mower deckReference
snowblowerReference
front-end loaderReference
B6200HST Serial Numbers
198350001 (4WD)Reference
198450972 (4WD)Reference
198551943 (4WD)Reference
198652916 (4WD)Reference
198753886 (4WD)Reference
198854856 (4WD)Reference
198310001 (2WD)Reference
198411022 (2WD)Reference
198520183 (2WD)Reference
198629344 (2WD)Reference
198738505 (2WD)Reference
198849666 (2WD)Reference
FAQ: How to read a serial number table.Reference
Attachment overview
60" mower deckReference
SnowblowerReference
Front-end loaderReference
Mowers for the Kubota B6200HST included the RC60-72H and the B3538 48-inch rear-mounted finish mower. Three tillers were available: Kubota models FL850 (33.5 inch), B422 (42-inch), and the FL1000 (39.1 inch). Additional tillage tools included the B340 48-inch tandem disc harrow and B380 single-bottom (14-inch) moldboard plow. The B2551 snowblower could be front or rear mounted.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
