Tractor · 1976Unverified

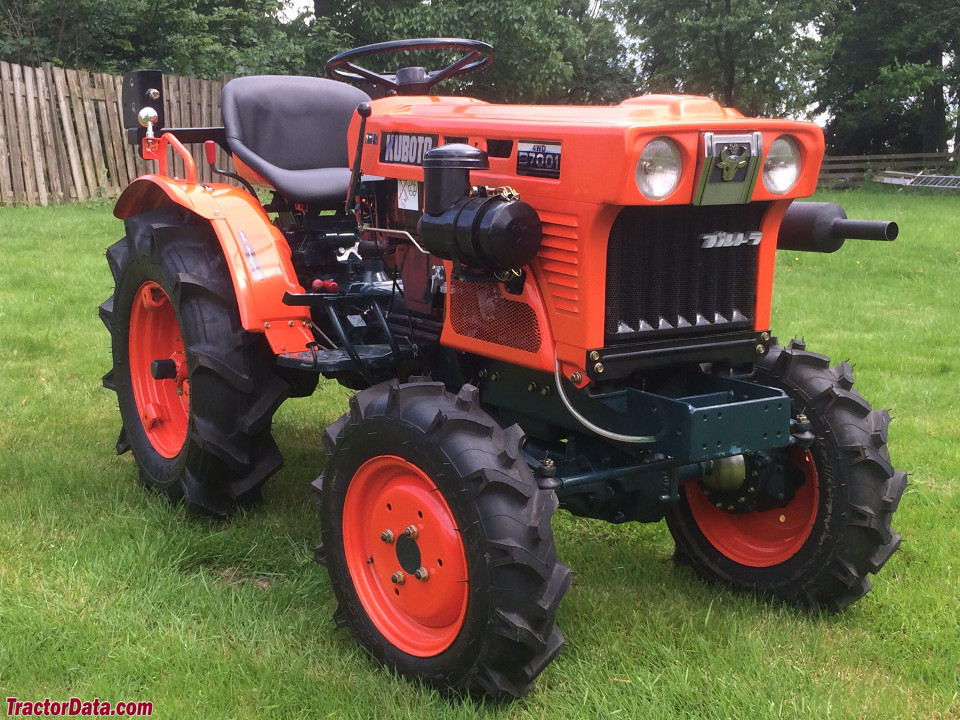

Kubota B7001
Kubota B7001 — Sub-Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
476 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
B7001E2WDReference
Engine
Kubota 0.8L 3-cyl dieselReference
Engine (net)10.3 kWReference
Kubota D750Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 70 mmReference
Power (net)10.3 kWReference
Rated RPM2800Reference
Firing order1-2-3Reference
Starter volts12Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@3000Reference
Engine RPM860@3000Reference
Engine RPM1000@3000Reference
Dimensions
Wheelbase125 cmReference
Weight476 kgReference
Front tire5.00-12Reference
Rear tire8-16Reference
Ag front5.00-12Reference
Ag rear8-16Reference
Length199 cmReference
Width89 cmReference
Height116 cmReference
Ground clearance23 cmReference
Front tread76 cmReference
Rear tread73 to 84 cmReference
B7001 Serial Numbers
Location:Serial number stamped into the left side of the transmission housing, above the foot rest.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
