Tractor · 1976Unverified
Kubota B7100
Kubota B7100 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
489 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
The Kubota B7100 was not available in the late 1980s, after that only the hydrostatic was available. Early model B7100 serial numbers began with "B7001", which is the Asian-market model designation.Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical wet disc brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Variants
B7100E2WD gearReference
B7100D4WD gearReference
B7100HSThydrostaticReference
Engine
Kubota 0.8L 3-cyl dieselReference
Engine (gross)11.9 kWReference
Plows1Reference
Kubota D750-AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke68 x 70 mmReference
Power (gross)11.9 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
Firing order1-2-3Reference
Starter volts12Reference
Starter power0.8 kWReference
Coolant capacity4.6 LReference
Oil capacity3.9 LReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutchdry plateReference
Oil capacity11.5 LReference
Transmission shifted using two levers. Left-hand lever selects three forward gears or reverse, right-hand lever selects high or low range.Reference
PTO & Hydraulics
PTO (claimed)9.7 kWReference
Hydraulic system13.6 LReference
Typeopen centerReference
Capacity13.6 LReference
Pump flow11.4 lpmReference
Rear TypeIReference
Rear lift181 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM514@2800Reference
Engine RPM876@2800Reference
Engine RPM1498@2800Reference
Front PTO Type2800Reference
Capacities
Fuel12.9 LReference
Dimensions
Wheelbase125 cmReference
Weight489 kgReference
Front tire6-12Reference
4WD Rear tire8.3-16Reference
Weight340 kgReference
4WD Standard tires (ag)Front: 6-12. Rear: 8.3-16Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length200 cmReference
Width101 cmReference
Height (steering wheel)115 cmReference
Ground clearance28 cmReference
Clearance (front axle)24 cmReference
Front tread82 cmReference
Rear tread66/71/76 cmReference
Kubota B7100 attachments

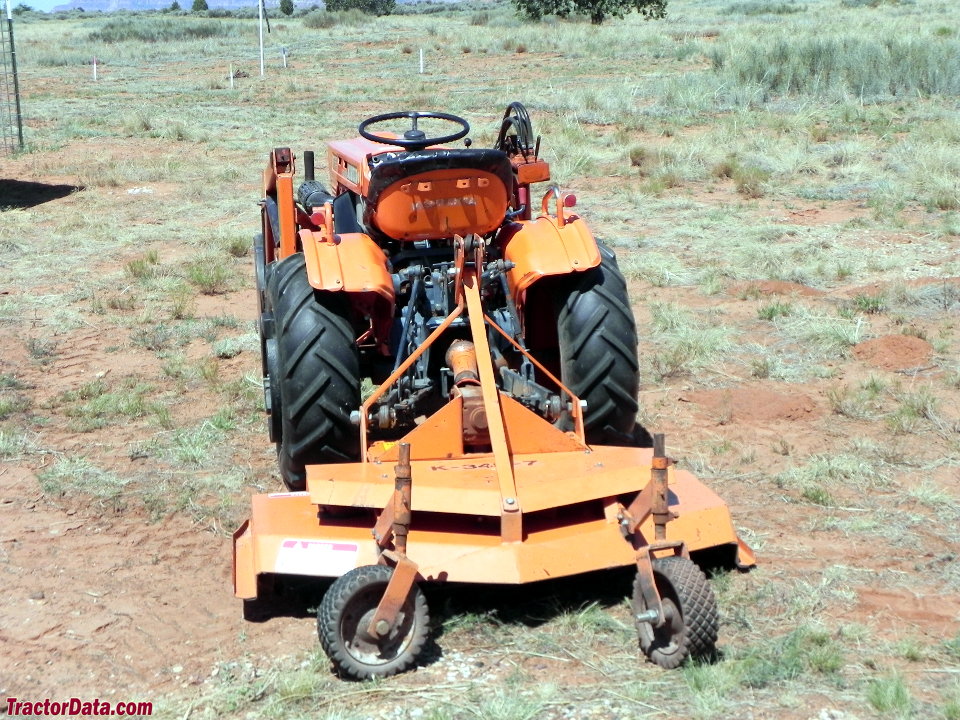

snowblowerReference

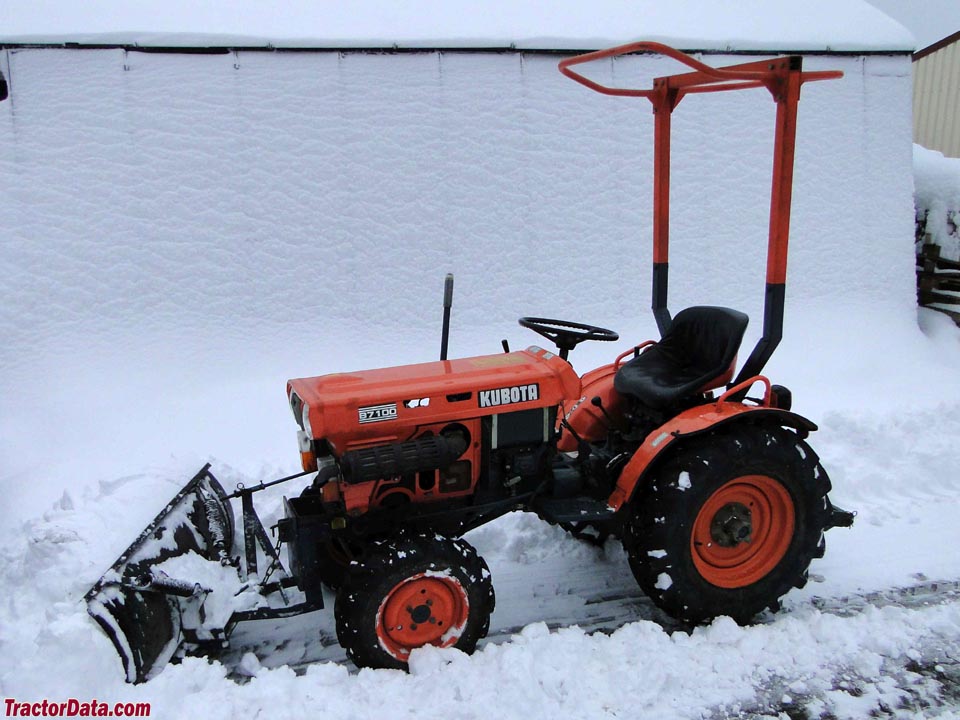

bladeReference

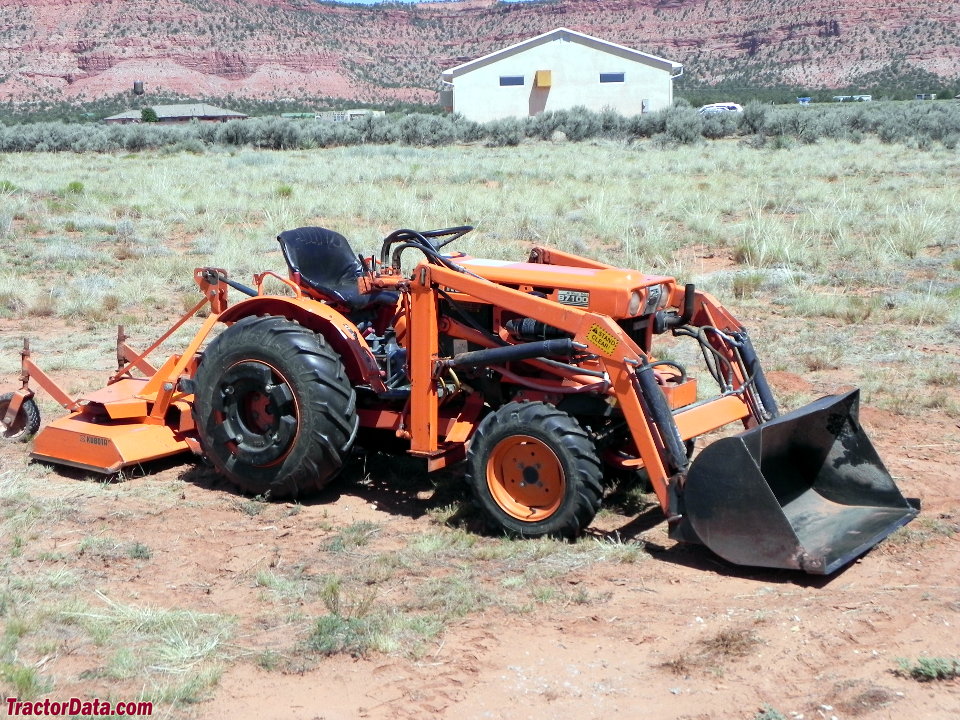

front-end loaderReference
backhoeReference
B7100 Serial Numbers
Location:Clutch housing, left sideReference
197610001Reference
197713931Reference
197836646Reference
197954221Reference
198064448Reference
198170678Reference
198274217Reference
198376009Reference
198477309Reference
198578435Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Attachment overview
SnowblowerReference
BladeReference
Kubota B219 loaderReference
Kubota B1630 loaderReference
BackhoeReference
Kubota B670 Backhoe
Backhoe typeKubota B670 BackhoeReference
Transport height154 cmReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
2-Foot flat digging depth185 cmReference
Reach from pivot254 cmReference
Loading height152 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1088 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
