Tractor · 1990Unverified

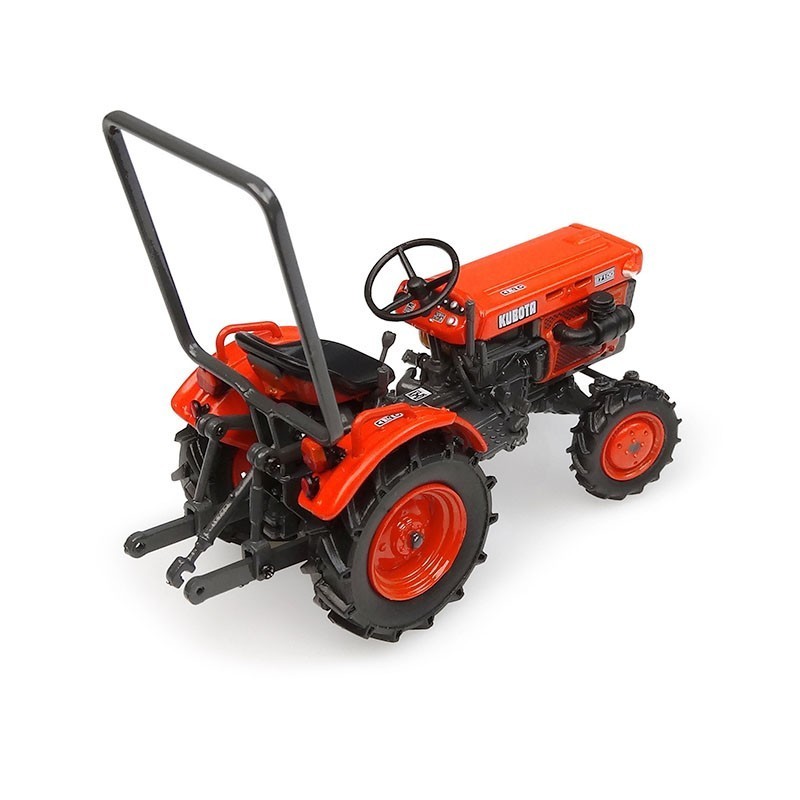

Kubota B7100HSD
Kubota B7100HSD — B Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
570 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Two-post fixed ROPS.Reference
Engine
Kubota 0.8L 3-cyl dieselReference
Fuel tank12.9 LReference
Engine (gross)11.9 kWReference
Kubota D750-AHReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.8 LReference
Bore/Stroke67 x 70 mmReference
Power (gross)11.9 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)9.7 kWReference
Typeopen centerReference
Pump flow11.2 lpmReference
Rear TypeIReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2800Reference
Engine RPM857@2800Reference
Mid PTO Type2500 (Kubota 1x10)Reference
Engine RPM2453@2800Reference
Dimensions
Wheelbase140 cmReference
Weight570 kgReference
Front tire6-12Reference
Rear tire8.3-16Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-16Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.50-15Reference
Length213 cmReference
Width103 cmReference
Height (steering wheel)118 cmReference
Ground clearance24 cmReference
Front tread84 cmReference
Rear tread72/77/83 cmReference
Kubota B7100HSD attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
B7100HSD Serial Numbers
199163826Reference
199265176Reference
199368005Reference
199471302Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
Kubota B4572 Backhoe
Backhoe typeKubota B4572 BackhoeReference
Transport height179 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Kubota B4672 Backhoe
Backhoe typeKubota B4672 BackhoeReference
Transport height179 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
