Tractor · 1983Unverified

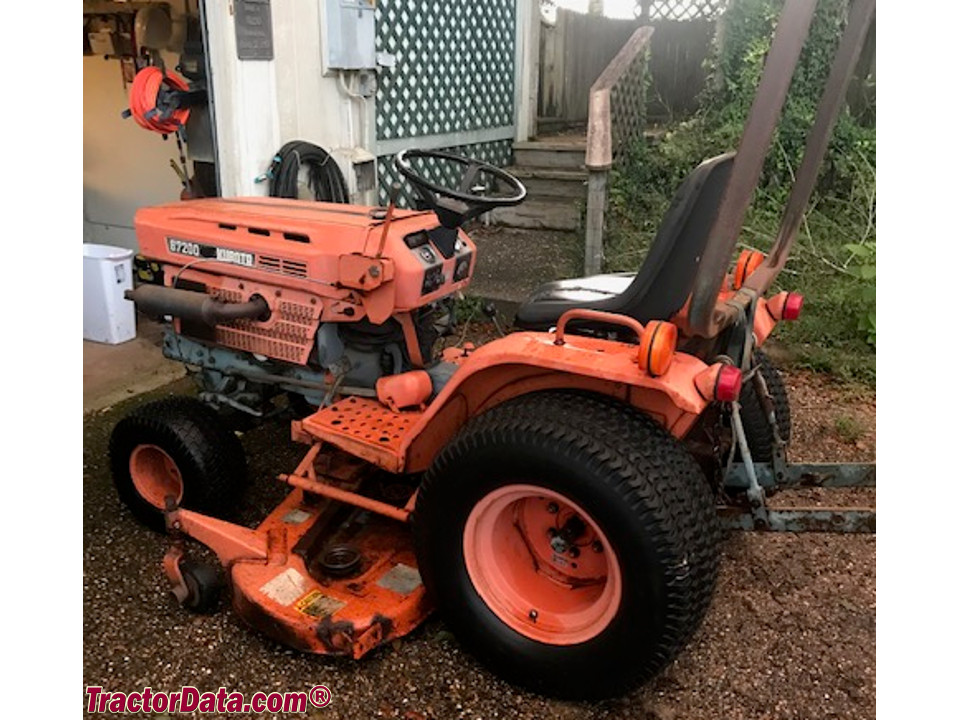

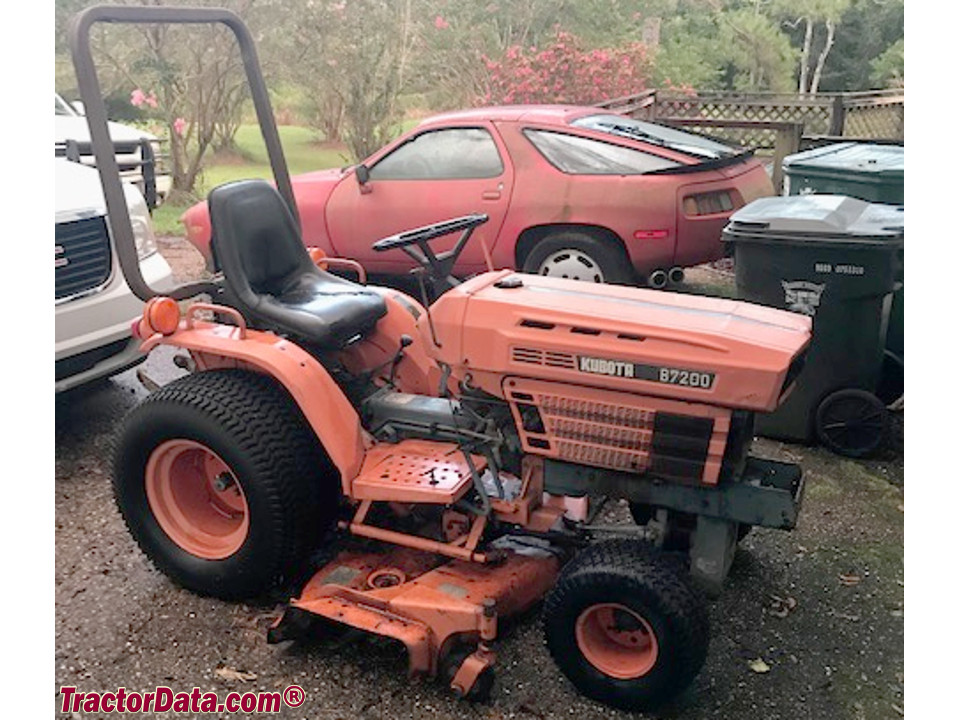

Kubota B7200
Kubota B7200 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1113 to 1356 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Original price was $10,500 in 1990 with B7200HST-DReference
Two- or four-wheel driveReference
Manual steeringReference
Dry internal expanding brakesReference
Two-post ROPS.Reference
Variants
B7200E2WD gearReference
B7200D4WD gearReference
B7200HST-E2WD hydroReference
B7200HST-D4WD hydroReference
Engine
Kubota 0.9L 3-cyl dieselReference
Engine (gross)12.7 kWReference
Plows1 (12-inch)Reference
Kubota D950Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke75 x 70 mmReference
Power (gross)12.7 kWReference
Air cleanerdry paper elementReference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity3.4 LReference
Coolant capacity2.8 LReference
Transmission
6-speed gearReference
hydrostaticReference
Gear Fuel14.4 LReference
Gear Wheelbase139 cmReference
Gear Length254 cmReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch7.2-inch dry discReference
Oil capacity12.0 LReference
Three gears (1-3) plus reverse with high and low ranges.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity13.5 LReference
PTO & Hydraulics
PTO (claimed)10.4 kWReference
Gear Hydraulic system12.1 LReference
Hydro Hydraulic system13.6 LReference
Typeopen centerReference
Gear Capacity12.1 LReference
Hydro Capacity13.6 LReference
Valves1Reference
Total flow15.1 lpmReference
Rear TypeIReference
Rear lift (at ends)469 kgReference
Rear lift (at 24"/610mm)319 kgReference
Rear PTO Type540/825Reference
Hydro Mid PTO Type1546/2455Reference
Front PTOoptionalReference
Front PTO Type2500Reference
Capacities
Hydro Fuel20.1 LReference
Dimensions
Hydro Wheelbase147 cmReference
Weight1113 to 1356 poundsReference
Front tire5.00-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 5.00-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 8-16Reference
Optional tires (ag)Front: 5.00-10. Rear: 9.5-16Reference
2WD Lawn/turf front18x9.50-8Reference
4WD Lawn/turf front20x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Lawn/turf rear31x13.5-15Reference
Hydro Length259 cmReference
Width114 cmReference
2WD Height (exhaust)181 cmReference
4WD Height (exhaust)182 cmReference
2WD Front tread71 cmReference
4WD Front tread86 cmReference
Rear tread73 to 90 cmReference
Shipping504 kgReference
Shipping569 kgReference
Shipping550 kgReference
Shipping615 kgReference
Kubota B7200 attachments
48" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
B7200 Serial Numbers
Location:Serial number stamped into the left side of transmission case, above the foot rest.Reference
198350532Reference
198451758Reference
198560683Reference
198662548Reference
198764737Reference
198865307Reference
198450026 (HST)Reference
198550711 (HST)Reference
198652531 (HST)Reference
198755065 (HST)Reference
198855977 (HST)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota B1630C loaderReference
Kubota B1640 loaderReference
Kubota B1640A loaderReference
Kubota LA300 loaderReference
BackhoeReference
Mowers for the Kubota B7200 included the mid-mount RC48-62/RC60-72 (front PTO mount for gear-driven tractors), the RC48-62H/RC60-72H (mid PTO mount for hydrostatic tractors), and the B3538 48-inch rear-mounted finish mower. Three tillers were available: Kubota models FL850 (33.5 inch), B422 (42-inch), and the FL1000 (39.1 inch). Additional tillage tools included the B340 48-inch tandem disc harrow and B380 single-bottom (14-inch) moldboard plow. The B2551 snowblower could be front or rear mounted.Reference
Kubota L4520 Backhoe
Backhoe typeKubota L4520 BackhoeReference
Transport height155 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth201 cmReference
Reach from pivot248 cmReference
Loading height213 cmReference
Bucket Rotation170°Reference
Swing Arc177°Reference
Bucket force657 kgReference
Dipperstick force1308 kgReference
Speeds
With 8-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
