Tractor · 1997Unverified

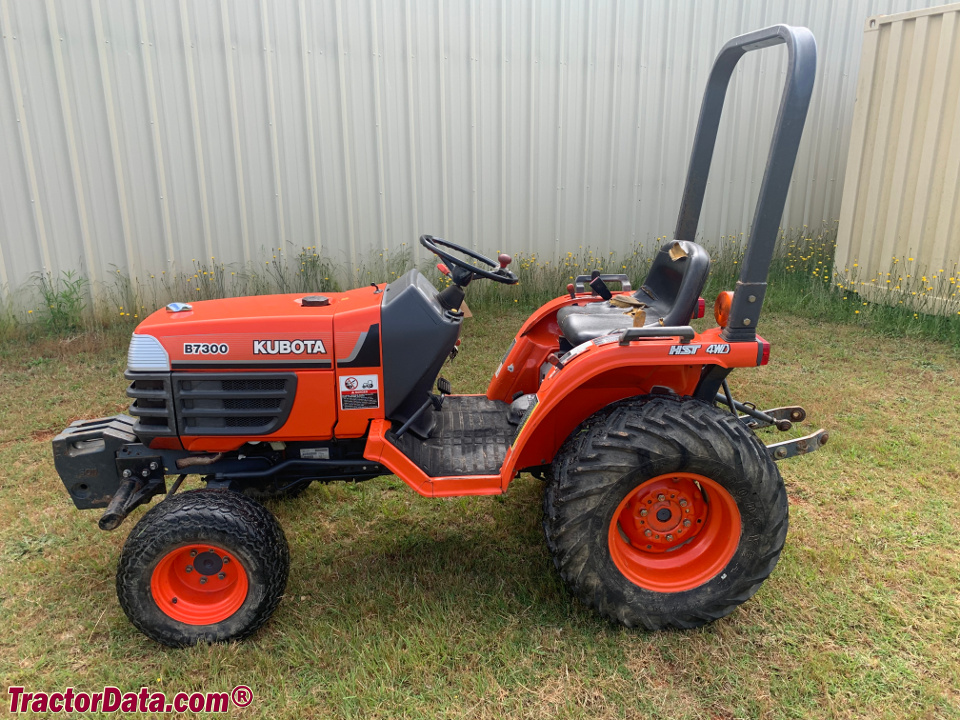

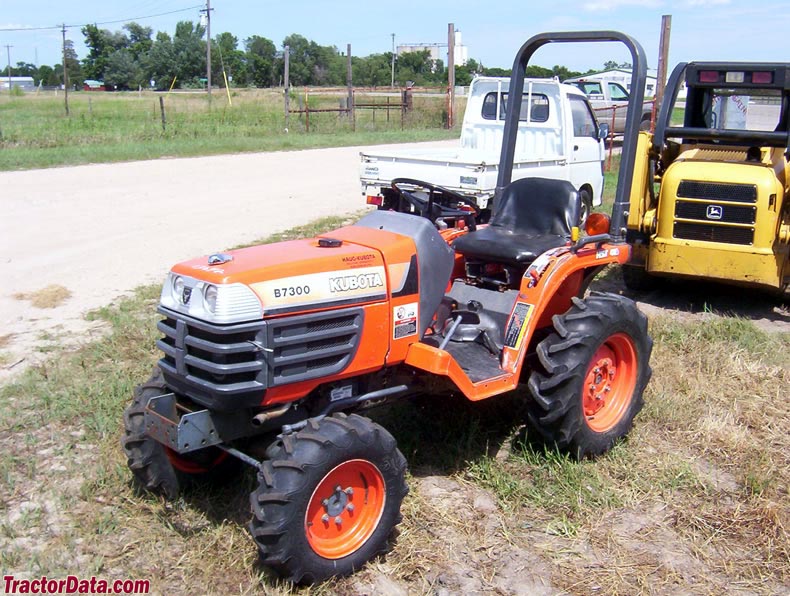

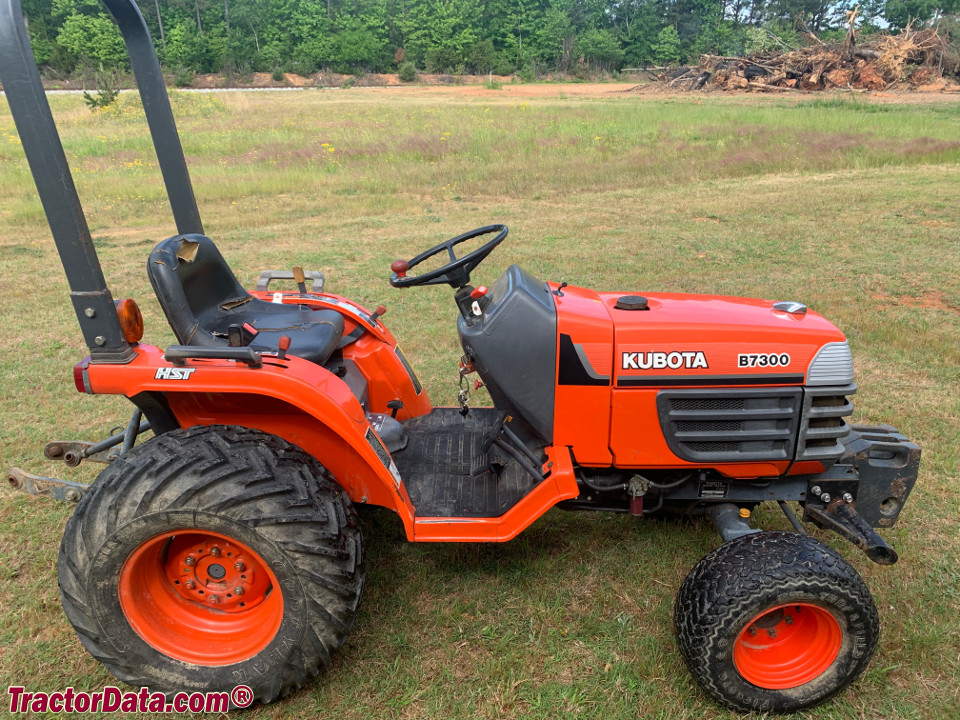

Kubota B7300

Name: Kubota B7300
Brand: Kubota

Kubota B7300 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.

The Kubota B7300 is a tractor model with a rating of approximately 16 horsepower, positioning it at the lower end of its class. Produced from 1997 to 1999, it features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 595 kg, and it is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

595 kg

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

16 hp

Recorded weight

595 kg

Transmissions

hydrostatic

Production years

1997-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesspur gearReference

Manual steeringReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Engine

Kubota 0.7L 3-cyl dieselReference

Fuel tank12.9 LReference

Engine (gross)11.9 kWReference

Kubota D722Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke67 x 68 mmReference

Power (gross)11.9 kWReference

Rated RPM2900Reference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3-cylinderReference

Rated engine speed2,900Reference

Bore and stroke2.64x2.68 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

forward and reverse optionsinfinite (2-range) forward and reverseReference

Rear Axle Drive Typespur gearReference

PTO & Hydraulics

PTO (claimed)9.3 kWReference

Typeopen centerReference

Pump flow14.8 lpmReference

Rear TypeIReference

Rear lift (at ends)498 kgReference

Rear lift (at 24"/610mm)390 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM527@2900Reference

Engine RPM954@2900Reference

Mid PTO Type2500 (Kubota 1x10)Reference

Engine RPM2461@2900Reference

Dimensions

Wheelbase149 cmReference

Weight595 kgReference

Front tire6-12Reference

Rear tire8.3-16Reference

Ag front6-12Reference

Ag rear8.3-16Reference

Lawn/turf front21x8.00-10Reference

Lawn/turf rear31x15.5-15Reference

Lawn/turf rear29x12.5-15Reference

Length261 cmReference

Width115 cmReference

Height117 cmReference

Height (ROPS)189 cmReference

Ground clearance26 cmReference

Kubota B7300 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

front-end loaderReference

B7300 Serial Number Location

Serial number decal on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

Front-end loaderReference

General

Make & ModelKubotaReference

Country of manufacturerCompact Utility tractorReference

Capacities

Capacity43.4 ciReference

PTO

Rear PTO PowerAvailableReference

Mid PTOAvailableReference

Steering & brakes

Brakeswet discReference

Steering typemanualReference

Hydraulics

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity499 kgReference

Dimensions & weight

Overall Height117.6 cmReference

Overall Length261.6 cmReference

Overall Width115.8 cmReference

Wheels & tyres

Rear wheel tread range8.3-16 inchReference

Front Wheel tread range6-12Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialTwo-post fixed ROPS.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
