Tractor · 2000Unverified

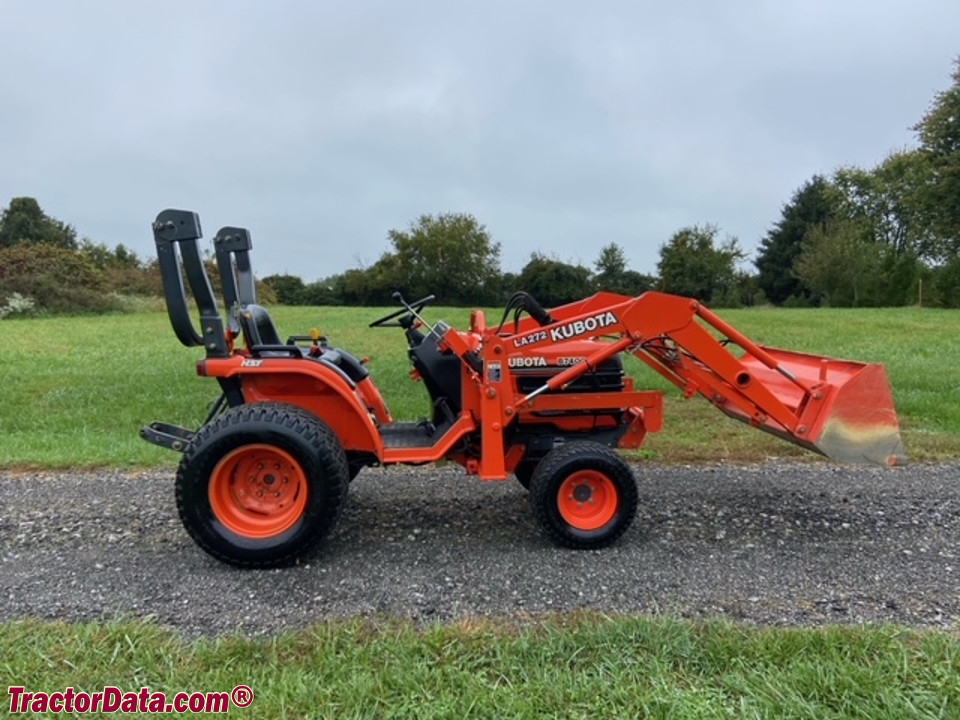

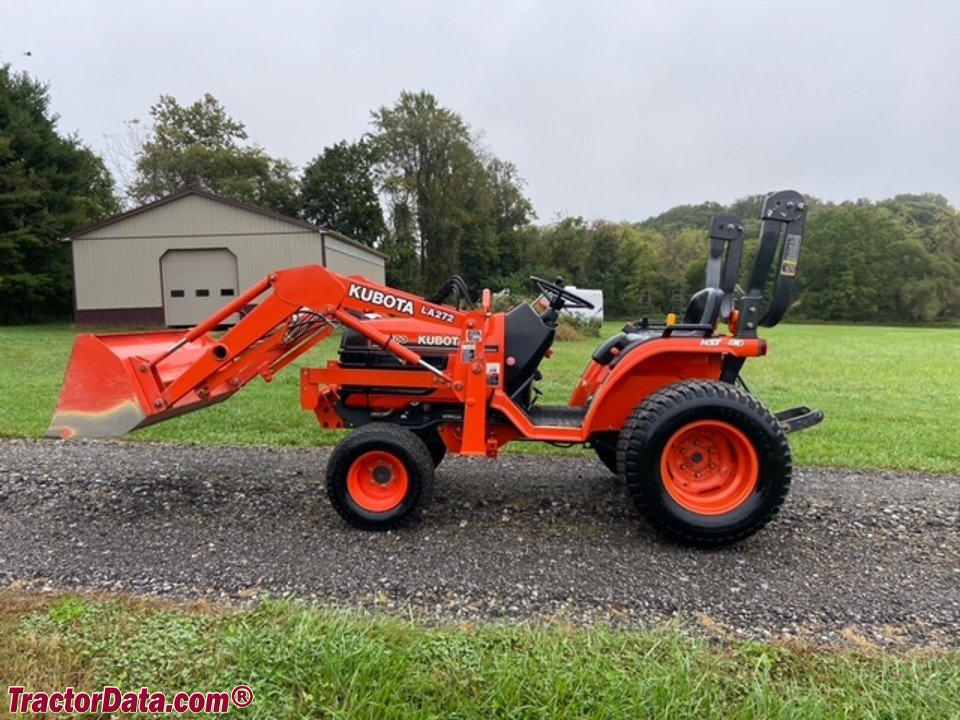

Kubota B7400
Kubota B7400 — B Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
585 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Manual steeringReference
Wet disc brakesReference
Two-post ROPSReference
Engine
Kubota 0.7L 3-cyl dieselReference
Engine (gross)11.9 kWReference
Kubota D722-E-D16Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power (gross)11.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdual paper elementReference
Rated RPM2900Reference
Torque44.7 NmReference
Starter volts12Reference
Starter power1.4 kWReference
Oil capacity2.4 LReference
Coolant capacity2.7 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity11.2 LReference
PTO & Hydraulics
PTO (claimed)9.3 kWReference
Typeopen centerReference
Total flow14.8 lpmReference
Rear TypeIReference
Controldirectional controlReference
Rear lift (at ends)615 kgReference
Rear lift (at 24"/610mm)479 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2500Reference
Capacities
Fuel12.9 LReference
Front axle3.2 LReference
Dimensions
Wheelbase149 cmReference
Weight585 kgReference
Front tire6-12Reference
Rear tire8.3-16Reference
Weight383 kgReference
Ag front6-12Reference
Ag rear8.3-16Reference
Length228 cmReference
Width98 cmReference
Height (steering wheel)124 cmReference
Height (ROPS)191 cmReference
Ground clearance29 cmReference
Kubota B7400 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA390Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Kubota B4672A Backhoe
Backhoe typeKubota B4672A BackhoeReference
Transport height171 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
