Tractor · 2004Unverified

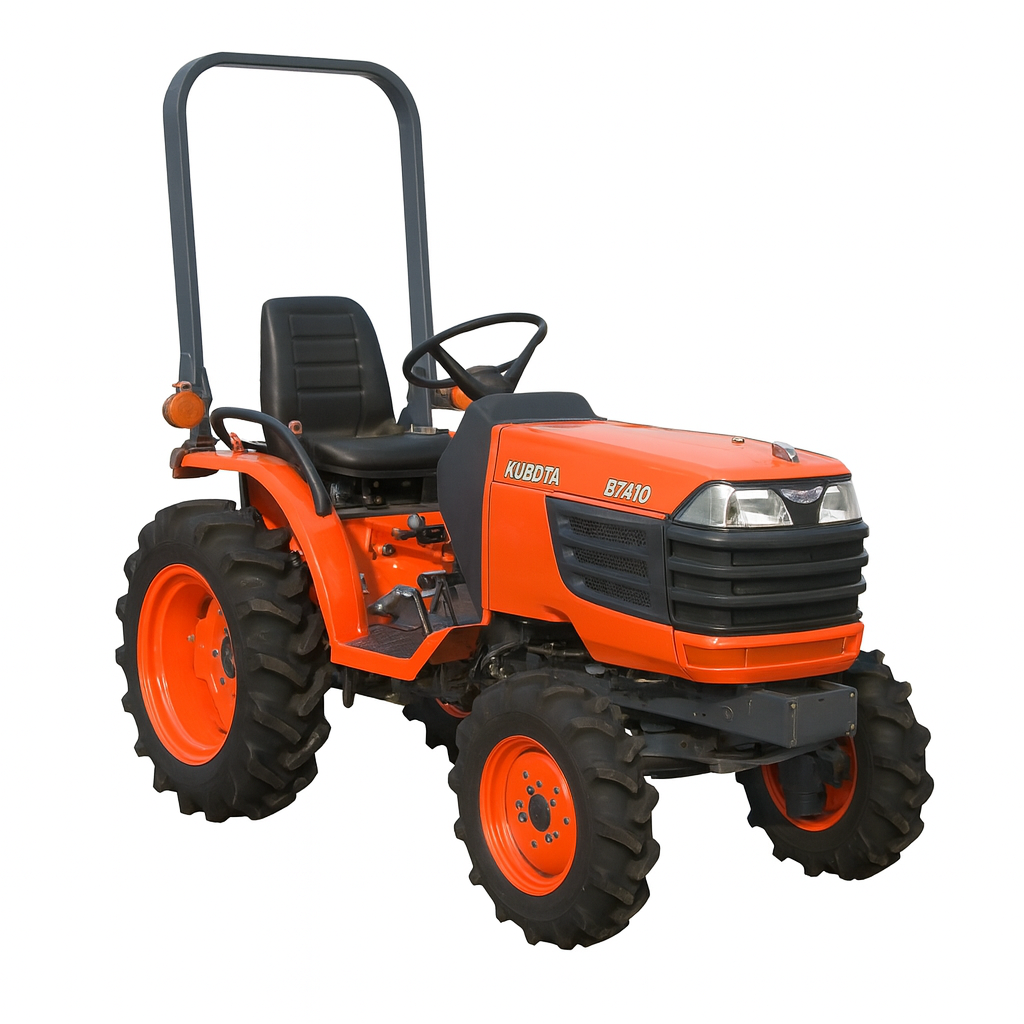

Kubota B7410

Name: Kubota B7410
Brand: Kubota

Kubota B7410 — B7x10 Series · 18 hp. Reference specifications; pending source verification.

The Kubota B7410 is a compact tractor model with a rated output of 18 hp, produced from 2004 to 2007. It is equipped with a 3-cylinder diesel liquid-cooled engine, transmitting power to four-wheel drive via a 6-speed gearbox. The listed weight of the tractor is 600 kg, and it is suitable for tasks of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

600 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

18 hp

Recorded weight

600 kg

Transmissions

6-speed gear

Production years

2004-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Manual steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 0.8L 3-cyl dieselReference

Fuel tank14.0 LReference

Engine (gross)13.4 kWReference

Kubota D782-E2-D20Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement0.8 LReference

Bore/Stroke67 x 74 mmReference

Power (gross)13.4 kWReference

Air cleanerdual paper elementReference

Rated RPM2900Reference

Torque46.1 NmReference

Starter volts12Reference

Oil capacity2.4 LReference

Coolant capacity2.7 LReference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutchdry discReference

Oil capacity11.8 LReference

PTO & Hydraulics

PTO (claimed)11.2 kWReference

Typeopen centerReference

Valves1Reference

Total flow14.8 lpmReference

Rear TypeIReference

Controlquarter inching valveReference

Rear lift (at ends)615 kgReference

Rear lift (at 24"/610mm)479 kgReference

Rear PTOtransmissionReference

Rear PTO Type540 (1.375)Reference

Engine RPM540Reference

Engine RPM960Reference

Mid PTO Type2500Reference

Dimensions

Wheelbase150 cmReference

Weight600 kgReference

Front tire6-12Reference

Rear tire9.5-16Reference

Weight383 kgReference

Ag front6-12Reference

Ag rear9.5-16Reference

Length230 cmReference

Width107 cmReference

Height (steering wheel)132 cmReference

Height (ROPS)194 cmReference

Ground clearance30 cmReference

Kubota B7410 attachments

54" mid-mount mower deckReference

mid-mount mower deckReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery CCA433Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

Mid-mount mower deckReference

BladeReference

Front-end loaderReference

BackhoeReference

Kubota B4672 Backhoe

Backhoe typeKubota B4672 BackhoeReference

Transport height171 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width60 cmReference

Digging depth187 cmReference

Reach from pivot249 cmReference

Loading height165 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1338 kgReference

Dipperstick force789 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
