Kubota B7500
Kubota B7500 — B Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1323 to 1367 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPSReference
Variants
B7500Dgear driveReference
B7500HSDhydrostaticReference
Engine
Kubota 1.0L 3-cyl dieselReference
Engine (gross)15.7 kWReference
Kubota D1005-E-D16Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power (gross)15.7 kWReference
Air cleanerdual paper elementReference
Rated RPM2600Reference
Torque59.7 NmReference
Starter volts12Reference
Starter power1.4 kWReference
Oil capacity3.0 LReference
Coolant capacity3.8 LReference
Transmission
6-speed gearReference
hydrostaticReference
Gear Weight600 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity11.5 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity12.5 LReference
PTO & Hydraulics
Gear PTO (claimed)12.7 kWReference
Hydro PTO (claimed)11.9 kWReference
Typeopen centerReference
Total flow26.5 lpmReference
Rear TypeIReference
Controldirectional controlReference
Rear lift (at ends)615 kgReference
Rear lift (at 24"/610mm)479 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2500Reference
Capacities
Fuel18.9 LReference
Front axle3.2 LReference
Dimensions
Wheelbase149 cmReference
Weight1323 to 1367 poundsReference
Front tire6-12Reference
Rear tire9.5-16Reference
Weight383 kgReference
Ag front6-12Reference
Ag rear9.5-16Reference
Length229 cmReference
Width107 cmReference
Height (steering wheel)132 cmReference
Height (ROPS)194 cmReference
Hydro Weight620 kgReference
Ground clearance30 cmReference
Kubota B7500 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA433Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference

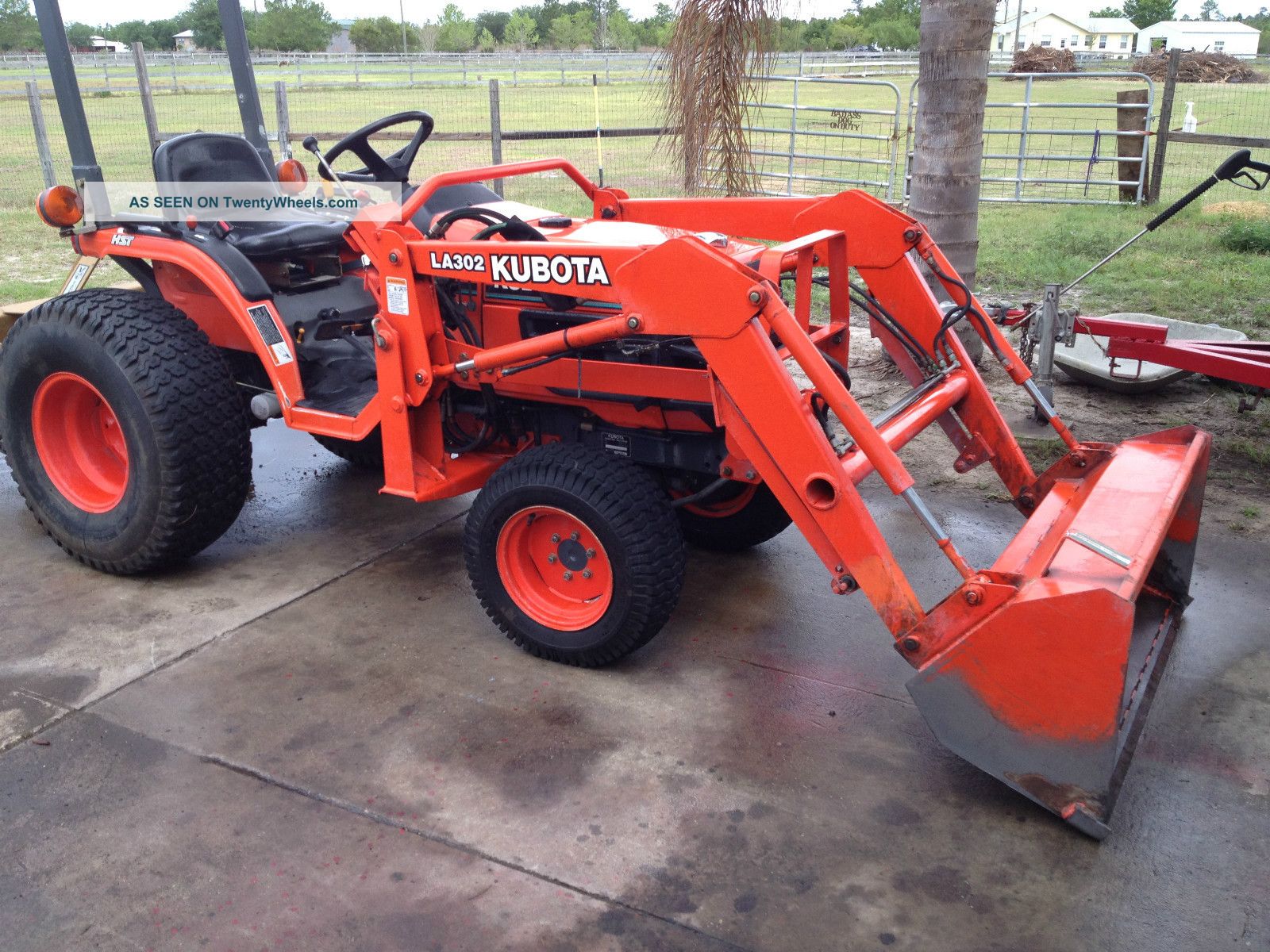

Kubota LA272 loaderReference
Kubota LA302 loaderReference
BackhoeReference
Kubota B4672A Backhoe
Backhoe typeKubota B4672A BackhoeReference
Transport height171 cmReference
Digging depth187 cmReference
Reach from pivot249 cmReference
Loading height165 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
