Tractor · 2003Unverified

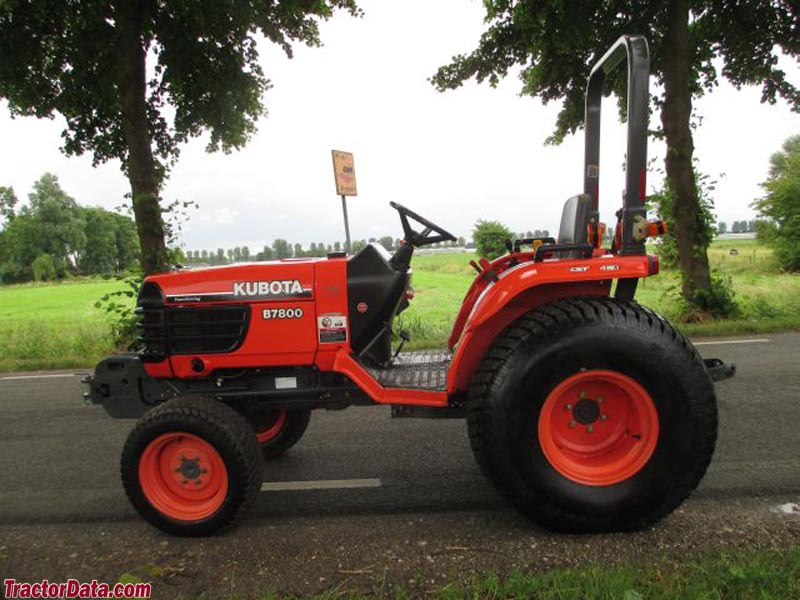

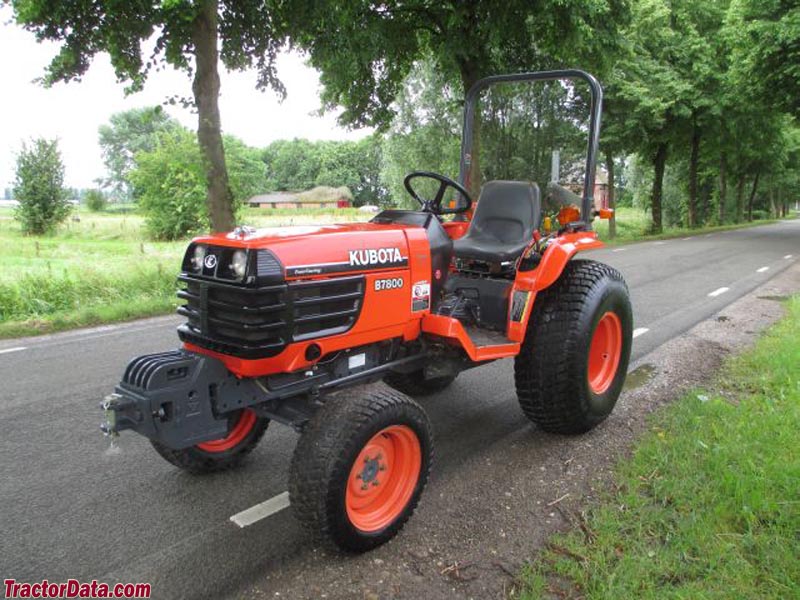

Kubota B7800

Name: Kubota B7800
Brand: Kubota

Kubota B7800 — B Series · 30 hp. Reference specifications; pending source verification.

The Kubota B7800 is a tractor model with a rated power output of 30 hp, categorising it as a light-duty machine within its class. Manufactured from 2003 to 2008, the B7800 features a 4-cylinder diesel liquid-cooled engine paired with a hydrostatic transmission and four-wheel drive. Its operating weight is 789 kg, and it is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

789 kg

Catalogue coverage

Variants represented

Richest spec table

126 rows

Recorded power

30 hp

Recorded weight

789 kg

Transmissions

hydrostatic

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS. Folding ROPS optional.Reference

Variants

B2910deluxeReference

B7800economyReference

Engine

Kubota 1.5L 4-cyl dieselReference

Fuel tank26.1 LReference

Engine (gross)22.4 kWReference

Kubota V1505-E-D16Reference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement1.5 LReference

Bore/Stroke78 x 78 mmReference

Power (gross)22.4 kWReference

Air cleanerdryReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity4.1 LReference

Coolant capacity4.4 LReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.07x3.09 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity14.5 LReference

Transmission TypeHSTReference

forward and reverse optionsinfinite forward and infinite reverse (3-range)Reference

Rear Axle Drive Typespur gearReference

PTO & Hydraulics

PTO (claimed)16.4 kWReference

Typeopen centerReference

Pump flow24.2 lpmReference

Total flow36.0 lpmReference

Steering flow11.7 lpmReference

Rear TypeIReference

Controlquarter-inching valveReference

Rear lift (at ends)750 kgReference

Rear lift (at 24"/610mm)589 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2600Reference

Mid PTOliveReference

Mid PTO Type2500 (Kubota 10-spline)Reference

Engine RPM2500@2578Reference

Dimensions

Wheelbase166 cmReference

Weight789 kgReference

Front tire7-12Reference

Rear tire12.4-16Reference

Weight383 kgReference

Weight403 kgReference

Ag front7-12Reference

Ag rear12.4-16Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6-16Reference

Industrial front23x8.50-14Reference

Industrial rear12.4-16Reference

Length251 cmReference

Width136 cmReference

Height (ROPS)199 cmReference

Ground clearance37 cmReference

Kubota B7800 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery CCA443Reference

Battery volts12Reference

Total cold cranking amps443 CCAReference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Kubota B4672A Backhoe

Backhoe typeKubota B4672A BackhoeReference

Transport height171 cmReference

Digging depth187 cmReference

Reach from pivot249 cmReference

Loading height165 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1338 kgReference

Dipperstick force789 kgReference

Kubota BL4690A Backhoe

Backhoe typeKubota BL4690A BackhoeReference

Transport height193 cmReference

Digging depth229 cmReference

Reach from pivot295 cmReference

Loading height200 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1338 kgReference

Dipperstick force789 kgReference

Speeds

With 12.4-16 R1 rear tires.Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity91.5 ciReference

Crankcase oil volume4.3 qtsReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Mid PTO speed2,500@2,578 RPMReference

Engine Speed on Rear PTO speed540@2,600 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Steering & Implements flow3.1 gpm (6.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity750.7 kgReference

Rear Hitch Sensing Typequarter-inching valveReference

Dimensions & weight

Height Over ROPS199.4 cmReference

Overall Length252 cmReference

Overall Width136.7 cmReference

Wheels & tyres

Rear Wheel TypeAg rear: 12.4-16Reference

Rear wheel tread range12.4-16 inchReference

Front Wheel TypeAg front: 7-12Reference

Front Wheel tread range7-12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
