Tractor · 1986Unverified
Kubota B9200
Kubota B9200 · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1570 to 1676 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Dry internal expanding brakesReference
Two-post ROPS.Reference
Variants
B9200F2WD gearReference
B9200DT4WD gearReference
B9200HSE2WD hydroReference
B9200HSD4WD hydroReference
B9200HSThydrostatic transmissionReference
Engine
Kubota 1.2L 4-cyl dieselReference
Engine (gross)16.8 kWReference
Kubota V1200-AReference
dieselReference
4-cylinderReference
liquid-cooledReference
Some Kubota B9200s experienced timing gear problems that were replaced by Kubota during the first ten years of service.Reference
Displacement1.2 LReference
Bore/Stroke75 x 70 mmReference
Power (gross)16.8 kWReference
Air cleanerpaper with Cyclon pre-cleanerReference
Rated RPM2500Reference
Oil capacity4.2 LReference
Coolant capacity3.9 LReference
Transmission
9-speedReference
hydrostaticReference
Gears9 forward and 3 reverseReference
Clutchdry platesReference
Oil capacity18.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)11.9 kWReference
Hydraulic system18.0 LReference
Typeopen centerReference
Capacity18.0 LReference
Pressure133.1 barReference
Valves1Reference
Total flow26.9 lpmReference
Rear TypeIReference
Rear lift (at ends)580 kgReference
Rear lift (at 24"/610mm)459 kgReference
Rear PTOliveReference
Rear PTO Type540/748Reference
Mid PTO Type1847/2557Reference
Capacities
Fuel20.1 LReference
Dimensions
Wheelbase157 cmReference
Weight1570 to 1676 poundsReference
Front tire6.50-10Reference
Rear tire12.4-16Reference
Weight145 kgReference
Ag front6.50-10 (2WD)Reference
Ag front6-12 (4WD)Reference
Ag rear12.4-16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear13.6-16Reference
Length277 cmReference
Width136 cmReference
Height (exhaust)202 cmReference
Ground clearance23 cmReference
Front tread90 to 104 cmReference
Front tread89 cmReference
Rear tread89 cmReference
Shipping712 kgReference
Shipping760 kgReference
Shipping712 kgReference
Shipping760 kgReference
Kubota B9200 attachments
60" mid-mount mower deckReference

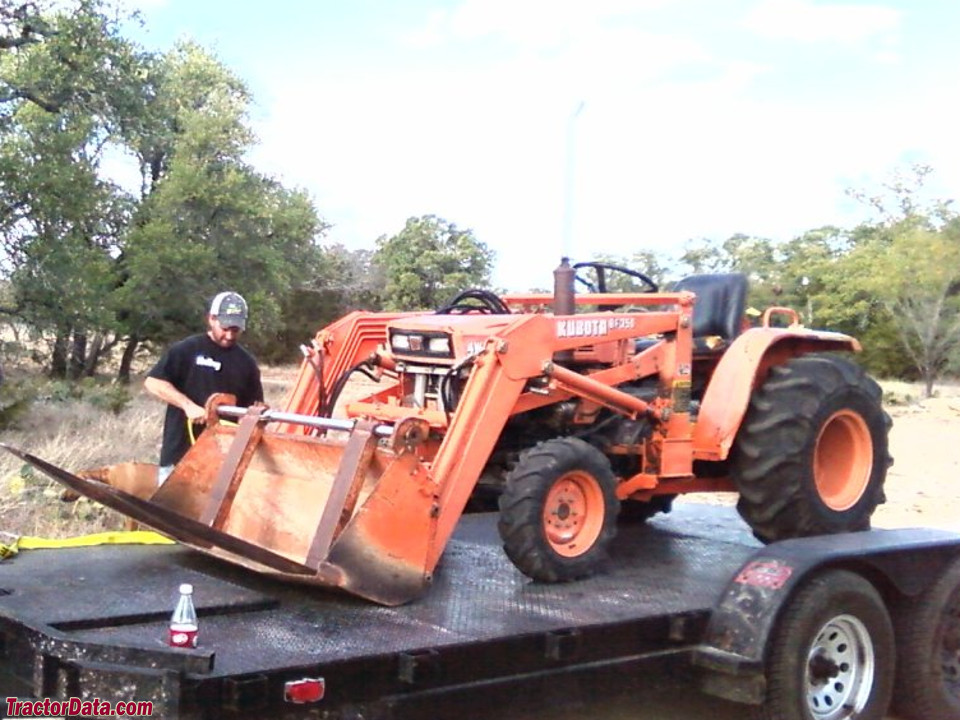

front-end loaderReference
backhoeReference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Kubota RC60-92HReference
Type3-bladeReference
Cutting width152 cmReference
Overall width183 cmReference
Cut height3 to 10 cmReference
Kubota BL4520A Backhoe
Backhoe typeKubota BL4520A BackhoeReference
Kubota BL4530 Backhoe
Backhoe typeKubota BL4530 BackhoeReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Speeds
With 12.4-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
