Tractor · 2003Unverified

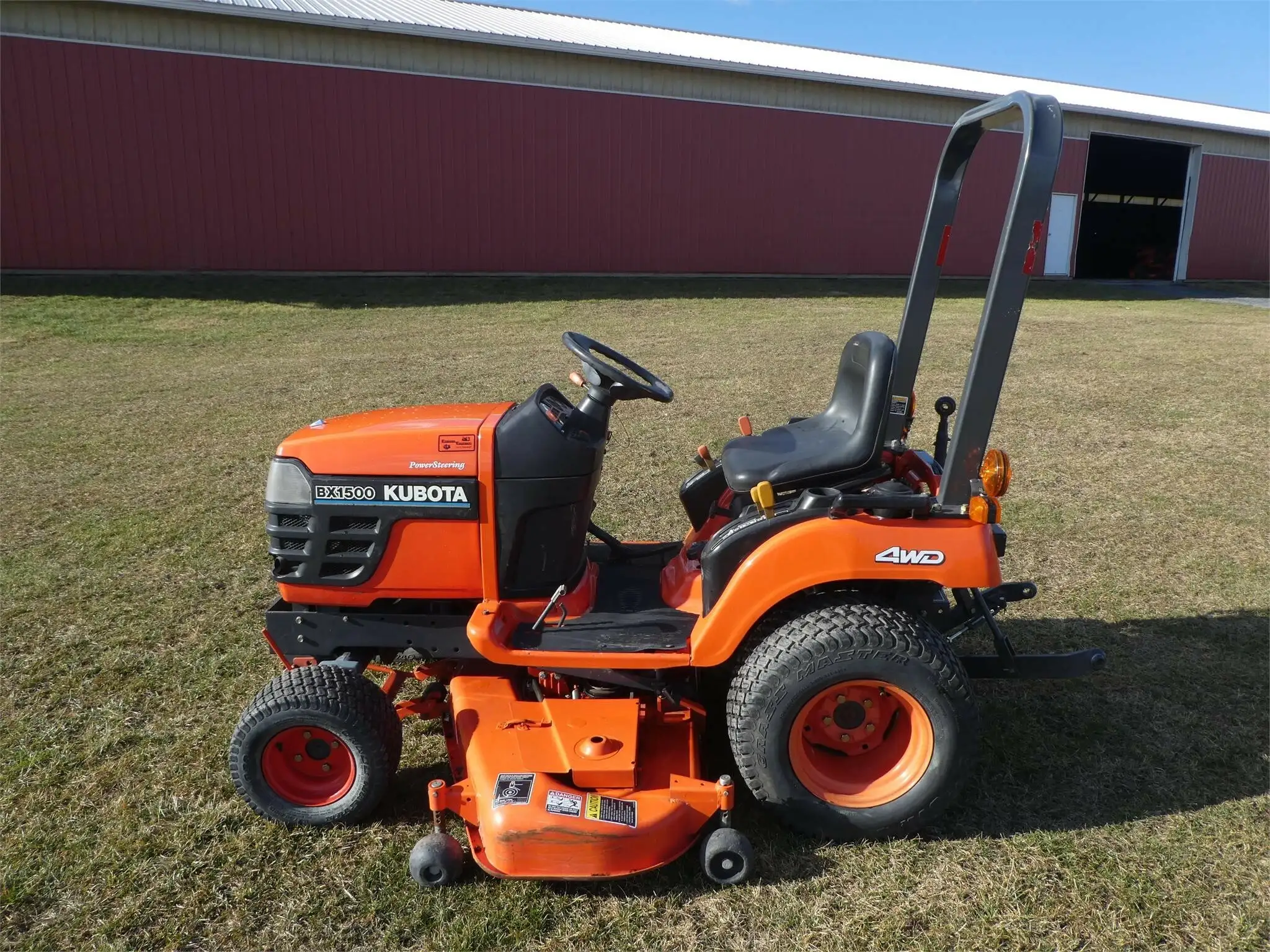

Kubota BX1500

Name: Kubota BX1500
Brand: Kubota

Kubota BX1500 — BX Series · 15 hp. Reference specifications; pending source verification.

The Kubota BX1500 is a lightweight tractor model with a rated power output of 15 hp, positioning it at the lower end of its class. It was manufactured from 2003 to 2005. The tractor features a 2-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 550 kg, and it is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

15 hp

Weight

550 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

15 hp

Recorded weight

550 kg

Transmissions

hydrostatic

Production years

2003-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Engine

Kubota 0.6L 2-cyl dieselReference

Fuel tank17.0 LReference

Engine (gross)11.2 kWReference

Kubota Z602 E-TVCSReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement0.6 LReference

Bore/Stroke72 x 74 mmReference

Power (gross)11.2 kWReference

Fuel systemindirect injectionReference

Rated RPM3600Reference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders2 cylinderReference

Rated engine speed3,600 RPMReference

Bore and stroke2.83x2.90 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse optionshydrostatic : infinite forward and nfinite reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)7.8 kWReference

Valves1Reference

Total flow20.8 lpmReference

Rear Type1Reference

Rear lift (at ends)548 kgReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Front PTOoptionalReference

Front PTO Type2500Reference

Dimensions

Wheelbase134 cmReference

Weight550 kgReference

Front tire16x7.5-8Reference

Rear tire24x12-12Reference

Ag front16x7.5-8Reference

Ag rear24x12-12Reference

Lawn/turf front16x7.5-8Reference

Lawn/turf rear24x12-12Reference

Length190 cmReference

Width114 cmReference

Height176 cmReference

Ground clearance14 cmReference

Kubota BX1500 attachments

48" mid-mount mower deckReference

54" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

48" mid-mount mower deckReference

54" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

The Kubota BX1500 was advertised as compatible with two mid-mount mowers (48-inch and 54-inch), a 54-inch front-mount blade, a two-stage snowblower, and front-end loader. Additional attachments include the BX2537 rotary sweeper, B40C (37-inch) rear tiller, 42- and 48-inch box scrapers, and a 48-inch rear-mounted blade.Reference

General

Make & ModelKubotaReference

Capacities

Capacity36.6 ciReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesWet disc brakesReference

Steering typehydrostatic powerReference

Hydraulics

Remote Valves1 ValvesReference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity548.8 kgReference

Dimensions & weight

Overall Height176.5 cmReference

Overall Length190.5 cmReference

Overall Width114.6 cmReference

Wheels & tyres

Rear Wheel TypeAg rear : 24x12-12Reference

Rear wheel tread range24x12-12 inchReference

Front Wheel TypeAg front : 16x7.5-8Reference

Front Wheel tread range16x7.5-8Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
