Tractor · 2001Unverified

Kubota BX1800

Name: Kubota BX1800
Brand: Kubota

Kubota BX1800 — BX Series · 18 hp. Reference specifications; pending source verification.

The Kubota BX1800 is a compact tractor model with a rated output of 18 hp, produced from 2001 to 2003. It features a 3-cylinder diesel liquid-cooled engine and a hydrostatic transmission, driving through four-wheel drive. The tractor is designed for use in areas of up to 200 acres, with specifications available in both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

18 hp

Transmissions

hydrostatic

Production years

2001-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 0.7L 3-cyl dieselReference

Fuel tank20.8 LReference

Engine (gross)13.4 kWReference

Kubota D722 E-TVCSReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement0.7 LReference

Bore/Stroke67 x 68 mmReference

Power (gross)13.4 kWReference

Fuel systemindirect injectionReference

Rated RPM3600Reference

Starter volts12Reference

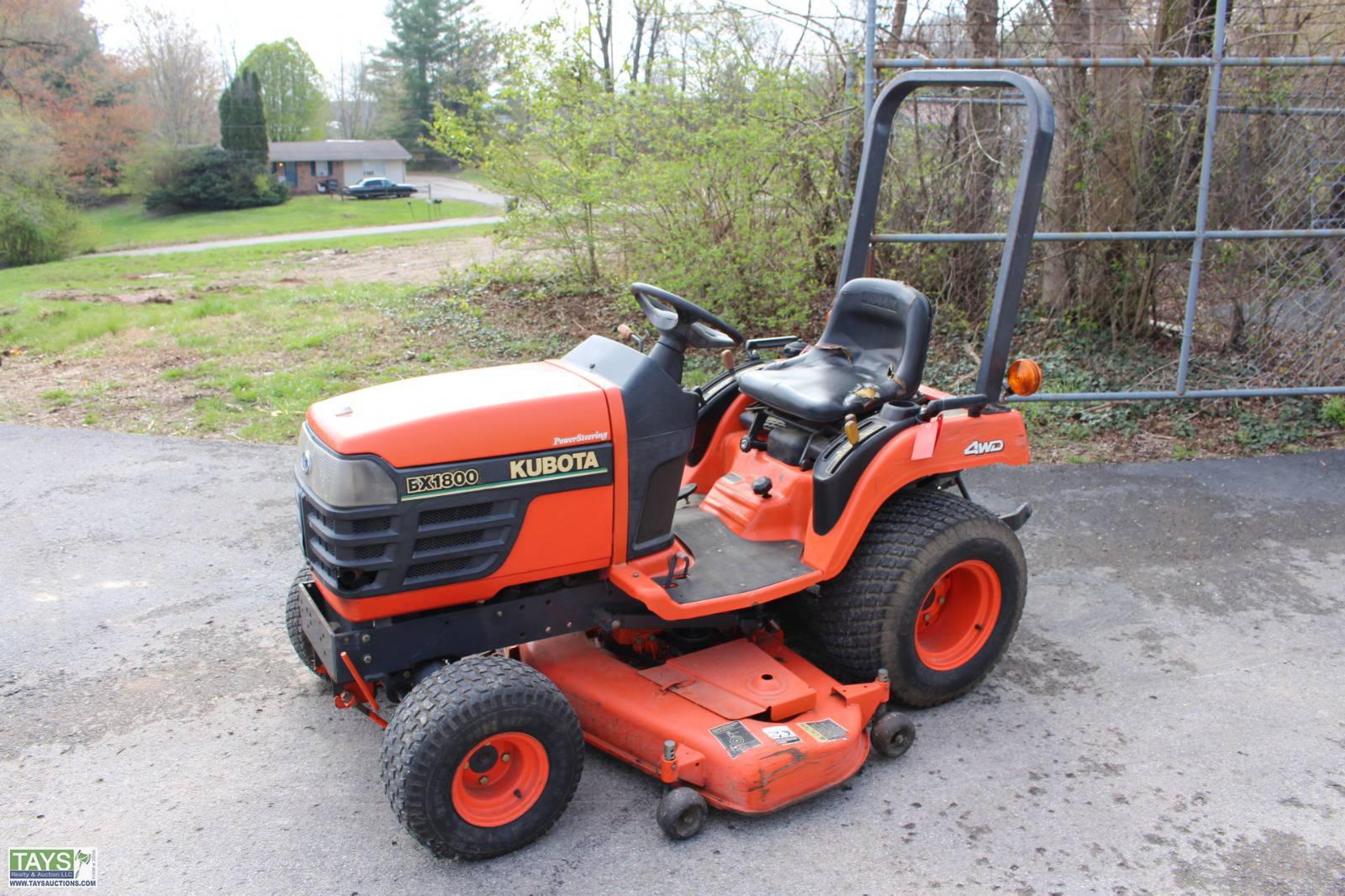

Image courtesy of Stanly TractorReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)10.2 kWReference

Rear Type1Reference

Rear lift295 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Dimensions

Wheelbase139 cmReference

Front tire18x8.5Reference

Rear tire26x12.0Reference

Ag front18x8.5Reference

Ag rear26x12.0Reference

Lawn/turf front18x8.5Reference

Lawn/turf rear26x12.0Reference

Length233 cmReference

Width114 cmReference

Ground clearance17 cmReference

Kubota BX1800 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

The Kubota BX1800 was advertised as compatible with two mid-mount mowers (54-inch and 60-inch), two front-mount blades, a two-stage snowblower, and front-end loader. Additional attachments include the BX2537 rotary sweeper, B40C (37-inch) rear tiller, 42- and 48-inch box scrapers, 48-inch rear blade, and 60-inch rear-mounted mower.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
