Tractor · 2004Unverified

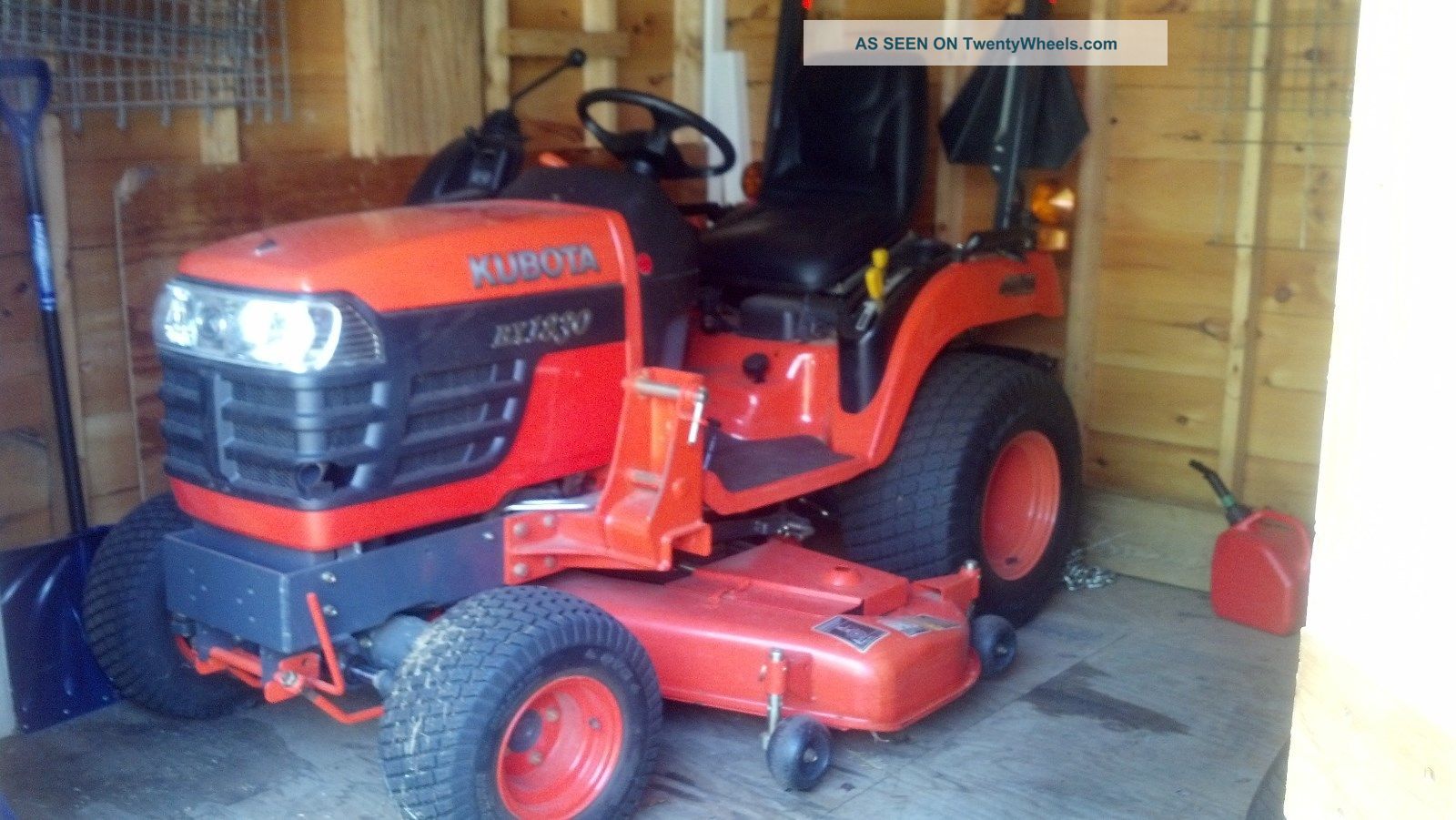

Kubota BX1830

Name: Kubota BX1830
Brand: Kubota

Kubota BX1830 — BX30 Series · 18 hp. Reference specifications; pending source verification.

The Kubota BX1830 is a compact tractor model with a rated engine power of 18 hp, making it a suitable option for smaller-scale applications. It was produced between 2004 and 2006. The tractor features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. Its listed weight is 569 kg, and it is designed for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

569 kg

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

18 hp

Recorded weight

569 kg

Transmissions

hydrostatic

Production years

2004-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Optional BX6730 hard-side weather cab with heater.Reference

Engine

Kubota 0.7L 3-cyl dieselReference

Fuel tank20.8 LReference

Engine (gross)13.4 kWReference

Kubota D722-E-BXReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke67 x 68 mmReference

Power (gross)13.4 kWReference

Rated RPM3200Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)10.2 kWReference

Pump flow20.8 lpmReference

Rear TypeIReference

Rear lift308 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3068Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@3125Reference

Dimensions

Wheelbase139 cmReference

Weight569 kgReference

Front tire18x8.50-8Reference

Rear tire26x12.00-12Reference

Ag front18x8.50-8Reference

Ag rear26x12.00-12Reference

Lawn/turf front18x8.50-8Reference

Lawn/turf rear26x12.00-12Reference

Length197 cmReference

Width114 cmReference

Height (ROPS)180 cmReference

Ground clearance17 cmReference

Front tread90 cmReference

Rear tread81 cmReference

Kubota BX1830 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

The Kubota BX1830 was advertised with the B40C 37-inch rear tiller, 42- (B7542) or 48-inch (BL7548) box scrapers, and the BX2537A 47-inch front-mount rotary sweeper. The GCK60-BX grass catcher, with PTO-driven turbine, was compatible with both mower decks.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
