Tractor · 2006Unverified

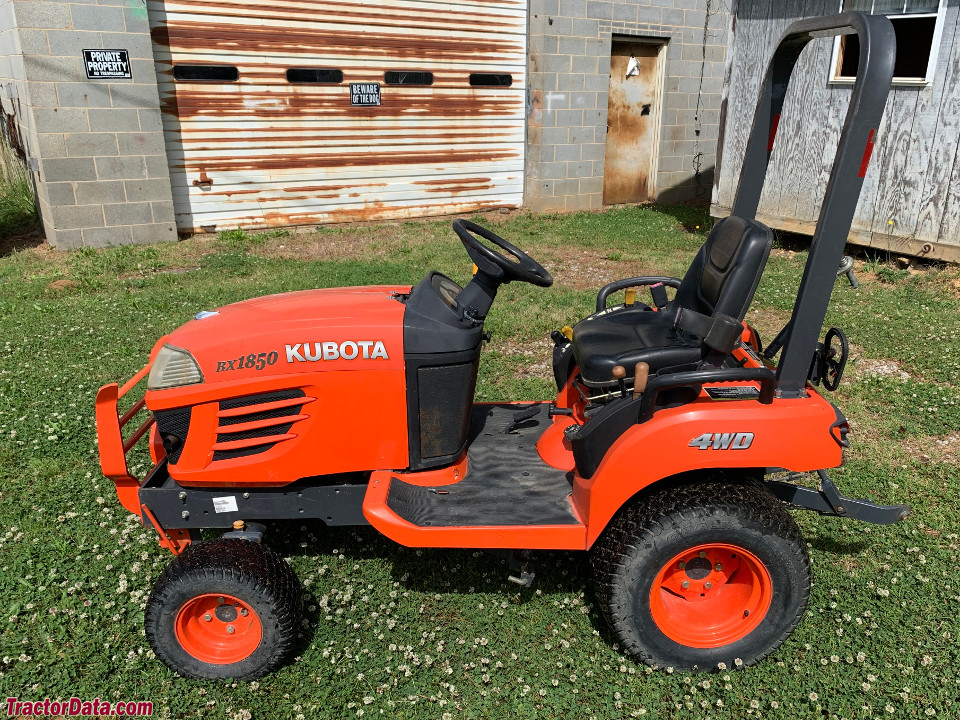

Kubota BX1850
Kubota BX1850 — BX50 Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
569 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $8,257 in 2009Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Optional canopy.Reference
Engine
Kubota 0.7L 3-cyl dieselReference
Engine13.4 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power13.4 kWReference
Air cleanerdual paper elementsReference
Rated RPM3200Reference
Starter volts12Reference
Oil capacity2.9 LReference
Coolant capacity2.9 LReference
PTO & Hydraulics
PTO (claimed)10.2 kWReference
Hydraulic system11.7 LReference
Typeopen centerReference
Capacity11.7 LReference
Total flow23.8 lpmReference
Rear TypeIReference
Rear lift (at ends)449 kgReference
Rear lift (at 24"/610mm)303 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Capacities
Fuel25.0 LReference
Dimensions
Wheelbase134 cmReference
Weight569 kgReference
Front tire16x7.5-8Reference
Rear tire24x12-12Reference
Ag front16x7.5-8Reference
Ag rear24x12-12Reference
Lawn/turf front16x7.2-8Reference
Lawn/turf rear24x12-12Reference
Length233 cmReference
Width113 cmReference
Height176 cmReference
Ground clearance22 cmReference
Kubota BX1850 attachments
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA435Reference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity11.7 LReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
