Tractor · 2015Unverified

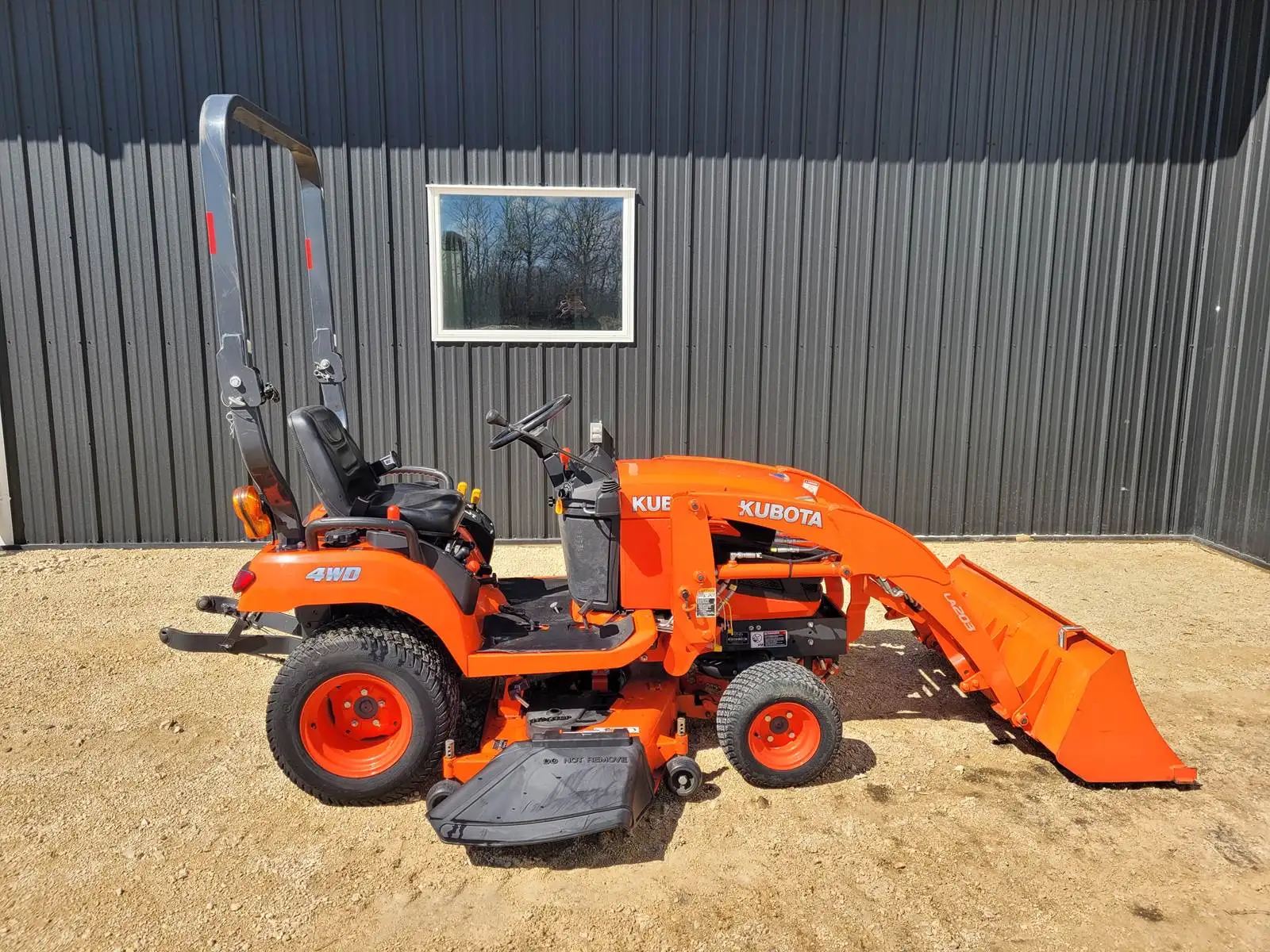

Kubota BX1870-1

Name: Kubota BX1870-1
Brand: Kubota

Kubota BX1870-1 — BX Series · 18 hp. Reference specifications; pending source verification.

The Kubota BX1870-1 is a compact tractor rated at 18 hp, making it a relatively small option within its class. Manufactured from 2015 to 2016, this model uses a 3-cylinder diesel liquid-cooled engine to power its four-wheel drive, which is equipped with a hydrostatic transmission. The BX1870-1 weighs 610 kg and is designed to handle tasks on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Max power

18 hp

Weight

610 kg

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

18 hp

Recorded weight

610 kg

Transmissions

hydrostatic

Production years

2015-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $9,971 in 2015Reference

Four-wheel driveReference

Differential lockrear standardReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Kubota 0.7L 3-cyl dieselReference

Engine (gross)13.4 kWReference

Kubota D722Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Power (gross)13.4 kWReference

Rated RPM3200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity2.9 LReference

Coolant capacity2.5 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,200 RPMReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity11.7 LReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite (2-range) forward and reverseReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)10.2 kWReference

Hydraulic system11.7 LReference

Typeopen centerReference

Capacity11.7 LReference

Pump flow23.5 lpmReference

Rear TypeIReference

Controlquarter-inching valveReference

Rear lift (at ends)449 kgReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3200Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@3200Reference

Capacities

Fuel25.0 LReference

Fuel tank25 LReference

Crankcase oil volume3.06 qtsReference

Dimensions

Wheelbase134 cmReference

Weight610 kgReference

Front tire16x7.5-8Reference

Rear tire24x12-12Reference

Ag front16x7.5-8Reference

Ag rear24x12-12Reference

Lawn/turf front16x7.5-8Reference

Lawn/turf rear24x12-12Reference

Length233 cmReference

Width113 cmReference

Height (ROPS)218 cmReference

Clearance (front axle)22 cmReference

Front tread87 cmReference

Rear tread81 cmReference

Kubota BX1870-1 attachments

48" mid-mount mower deckReference

54" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA435Reference

Battery volts12Reference

Total cold cranking amps435 CCAReference

Attachment overview

48" mid-mount mower deckReference

54" mid-mount mower deckReference

Front-end loaderReference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

Rollover protective structureTwo-post folding ROPS.Reference

Power

Max Power18 hpReference

PTO

PTO Power13.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Mid PTO speed2,500@3,200 RPMReference

Engine Speed on Rear PTO speed540@3,200 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity450 kgReference

Rear Hitch Sensing Typequarter-inching valveReference

Dimensions & weight

Height Over ROPS218.9 cmReference

Overall Length233.9 cmReference

Overall Width113 cmReference

Front axle clearance22.9 cmReference

Overall weight610.1 kgReference

Wheels & tyres

Rear Wheel Type24x12-12Reference

Rear wheel tread range81.8 cmReference

Front Wheel Type16x7.5-8Reference

Front Wheel tread range87.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
