Tractor · 2017Unverified
Kubota BX1880
Kubota BX1880 — BX80 Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
606 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $9,999 in 2017Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Kubota 0.7L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine13.4 kWReference
Kubota D722Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke67 x 68 mmReference
Power13.4 kWReference
Rated RPM3200Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)10.2 kWReference
Pump flow23.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)308 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase139 cmReference
Weight606 kgReference
Front tire16x7.5-8Reference
Rear tire24x12-12Reference
Standard tires (ag)Front: 16x7.5-8. Rear: 24x12-12Reference
Lawn/turf front16x7.5-8Reference
Lawn/turf rear24x12-12Reference
Length242 cmReference
Width112 cmReference
Height (ROPS)208 cmReference
Clearance (front axle)19 cmReference
Front tread92 cmReference
Rear tread81 cmReference
Kubota BX1880 attachments
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference

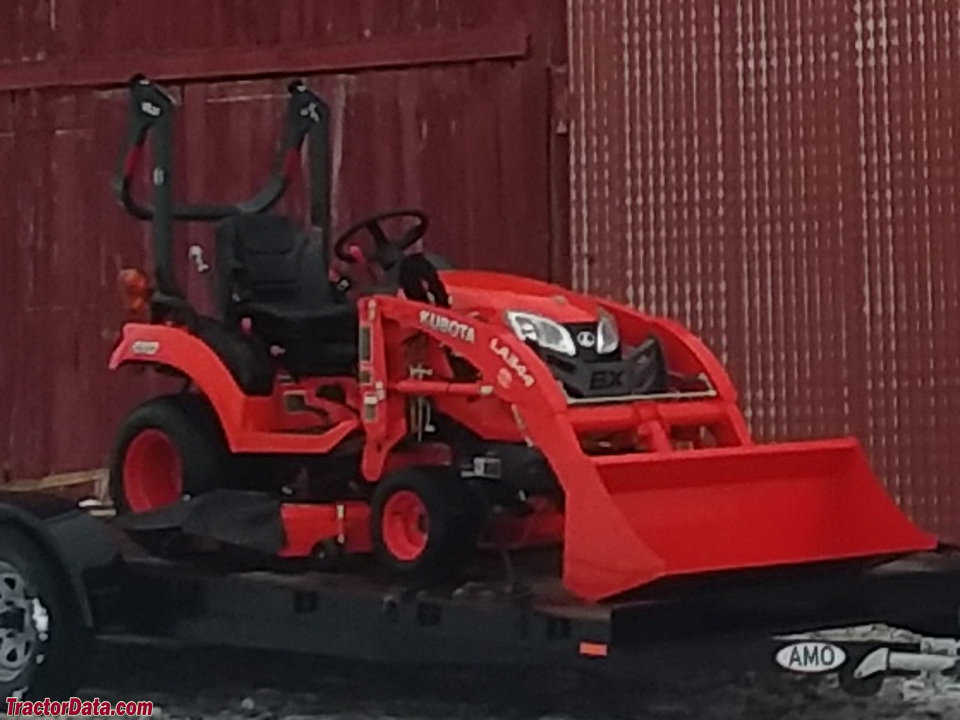

front-end loaderReference
BX1880 Serial Number Location
Serial number on the right side of the BX1880 frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
