Tractor · 2004Unverified

Kubota BX2230

Name: Kubota BX2230
Brand: Kubota

Kubota BX2230 — BX30 Series · 22 hp. Reference specifications; pending source verification.

The Kubota BX2230 is a tractor with an approximate engine rating of 22 hp, positioning it within the lower power range of its class. The BX2230 was produced from 2004 to 2006. It features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor has a listed operating weight of 585 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

585 kg

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

22 hp

Recorded weight

585 kg

Transmissions

hydrostatic

Production years

2004-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Optional BX6730 hard-side weather cab with heater.Reference

Engine

Kubota 0.9L 3-cyl dieselReference

Fuel tank20.8 LReference

Engine (gross)16.4 kWReference

Kubota D902-E-BXReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Bore/Stroke72 x 74 mmReference

Power (gross)16.4 kWReference

Rated RPM3200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,200 RPMReference

Bore and stroke2.83x2.90 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse optionsinfinite (2-range) forward and infinite reverseReference

PTO & Hydraulics

PTO (claimed)12.5 kWReference

Pump flow20.8 lpmReference

Rear TypeIReference

Rear lift308 kgReference

Rear PTOindependentReference

Clutchmanual hydraulic discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3068Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@3125Reference

Dimensions

Wheelbase139 cmReference

Weight585 kgReference

Front tire18x8.50-8Reference

Rear tire26x12.00-12Reference

Ag front18x8.50-8Reference

Ag rear26x12.00-12Reference

Lawn/turf front18x8.50-8Reference

Lawn/turf rear26x12.00-12Reference

Length197 cmReference

Width114 cmReference

Height (ROPS)180 cmReference

Ground clearance17 cmReference

Front tread90 cmReference

Rear tread81 cmReference

Kubota BX2230 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

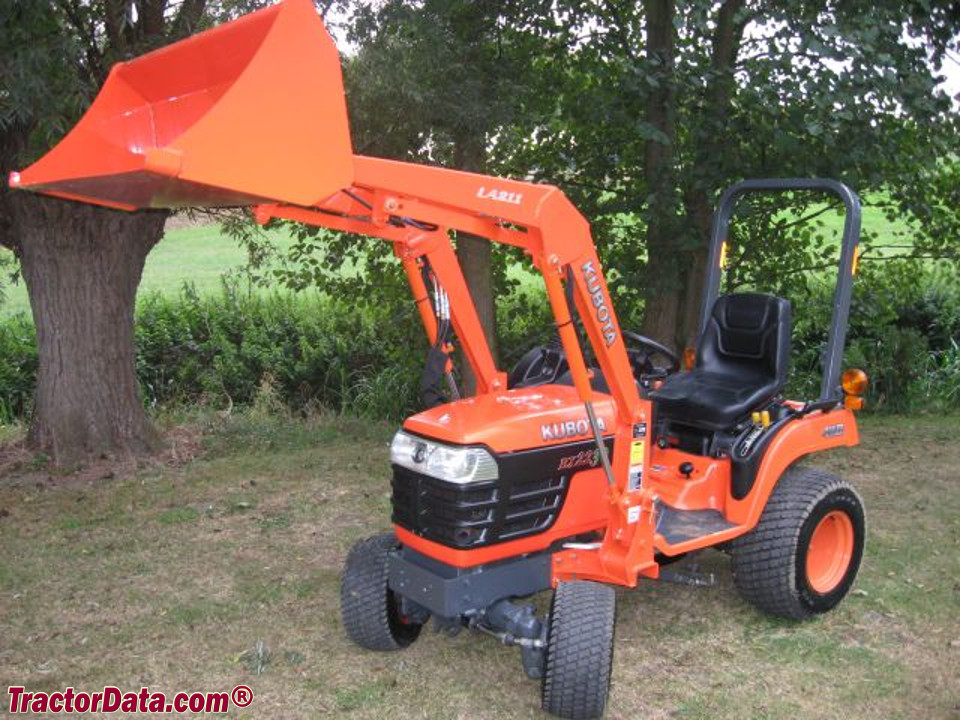

front-end loaderReference

BX2230 Serial Number Location

Serial number decal on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Battery Group26RReference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

The Kubota BX2230 was advertised with the B40C 37-inch rear tiller, 42- (B7542) or 48-inch (BL7548) box scrapers, and the BX2537A 47-inch front-mount rotary sweeper. The GCK60-BX grass catcher, with PTO-driven turbine, was compatible with both mower decks.Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPSReference

Country of manufacturerSub-Compact Utility tractorReference

Capacities

Capacity54.8 ciReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Mid PTO speed2,500@3,125 RPMReference

Engine Speed on Rear PTO speed540@3,068 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

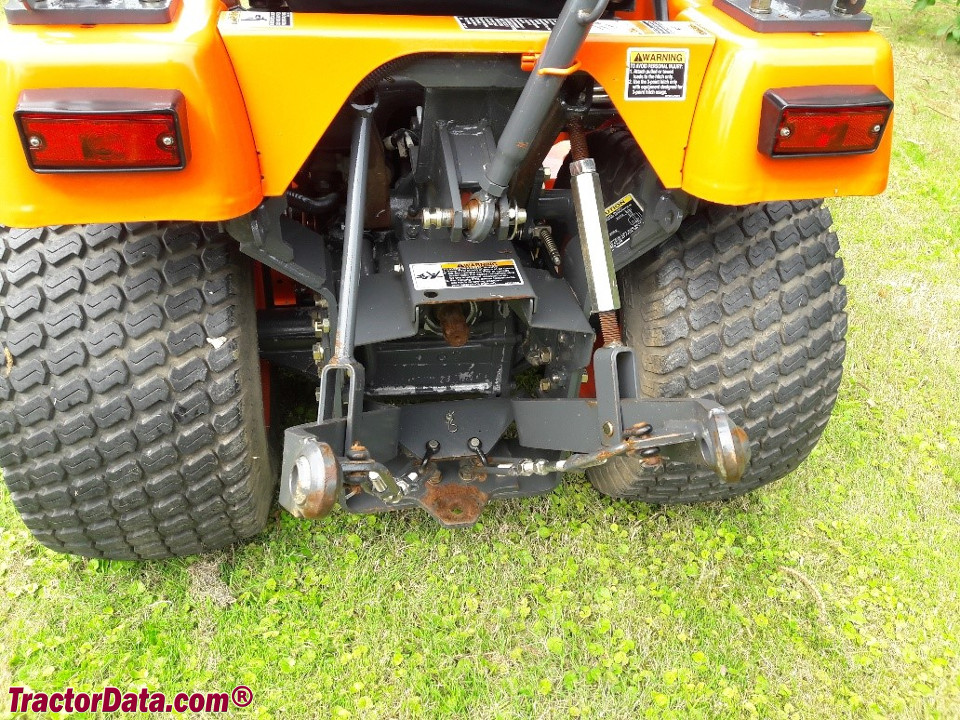

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity308.4 kgReference

Dimensions & weight

Height Over ROPS180.1 cmReference

Overall Length197.6 cmReference

Overall Width114.6 cmReference

Wheels & tyres

Rear Wheel TypeAg- 26x12.00-12 | Lawn/turf rear- 26x12.00-12Reference

Rear wheel tread range81.8 cmReference

Front Wheel TypeAg front:18x8.50-8 | Lawn/turf front:18x8.50-8Reference

Front Wheel tread range90.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
