Tractor · 2006Unverified

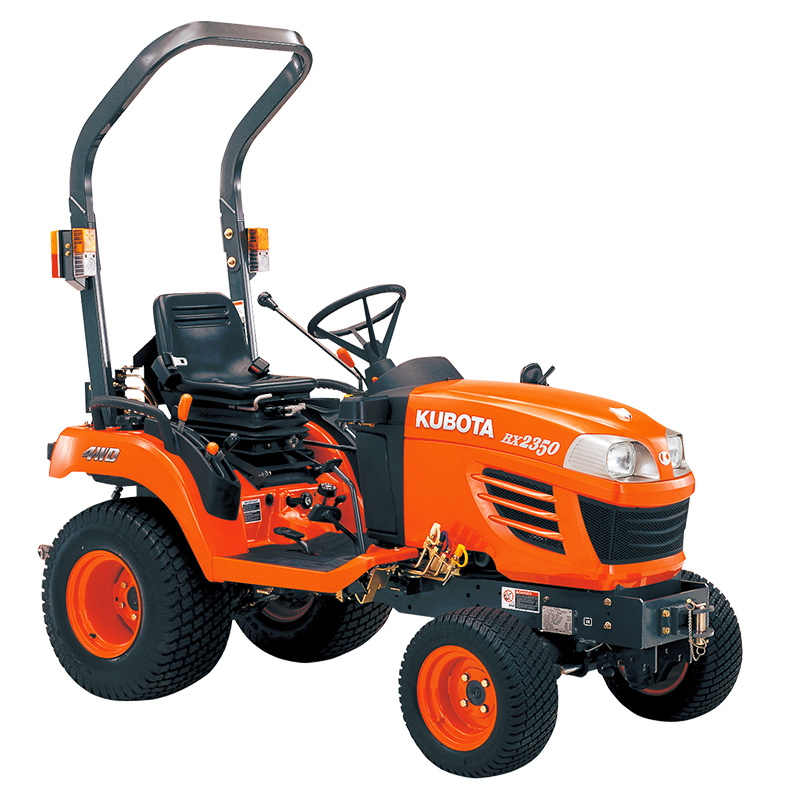

Kubota BX2350

Name: Kubota BX2350
Brand: Kubota

Kubota BX2350 — BX50 Series · 23 hp. Reference specifications; pending source verification.

The Kubota BX2350 is a compact tractor with a rated power output of 23 hp, situated in its class among smaller options. The model was produced between the years 2006 and 2008. It features a 3-cylinder diesel liquid-cooled engine, which transmits power to all four wheels via a hydrostatic transmission. The tractor's weight is listed as 599 kg, and it is suited for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

599 kg

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

23 hp

Recorded weight

599 kg

Transmissions

hydrostatic

Production years

2006-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $9,817 in 2009Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS. Optional canopy.Reference

Variants

BX2350compact tractorReference

BX24backhoeReference

Engine

Kubota 0.9L 3-cyl dieselReference

Engine (gross)17.2 kWReference

Kubota D902Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement0.9 LReference

Bore/Stroke71 x 74 mmReference

Power (gross)17.2 kWReference

Air cleanerdual paper elementReference

Rated RPM3200Reference

Starter volts12Reference

Oil capacity3.1 LReference

Coolant capacity3.1 LReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,200 RPMReference

Bore and stroke2.8 x 2.9 inchesReference

Cooling systemliquid-cooled | Pressurized radiatorReference

PTO & Hydraulics

PTO (claimed)13.2 kWReference

Hydraulic system11.7 LReference

Typeopen centerReference

Capacity11.7 LReference

Total flow23.5 lpmReference

Rear TypeIReference

Rear lift (at ends)548 kgReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3142Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@3043Reference

Capacities

Fuel25.0 LReference

Fuel tank25 LReference

Crankcase oil volume3.3 qtsReference

Dimensions

Wheelbase139 cmReference

Weight599 kgReference

Front tire18x8.5-10Reference

Rear tire26x12-12Reference

Ag front18x8.5-10Reference

Ag rear26x12-12Reference

Lawn/turf front18x8.5-10Reference

Lawn/turf rear26x12-12Reference

Length242 cmReference

Width113 cmReference

Height (ROPS)178 cmReference

Ground clearance22 cmReference

Kubota BX2350 attachments

48" mid-mount mower deckReference

54" mid-mount mower deckReference

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA535Reference

Battery volts12Reference

Total cold cranking amps535 CCAReference

Attachment overview

48" mid-mount mower deckReference

54" mid-mount mower deckReference

60" mid-mount mower deckReference

Front-end loaderReference

Transmission

TransmissionhydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity11.7 LReference

Transmission TypeHSTReference

forward and reverse optionshydrostatic : infinite (2-range) forward and infinite reverseReference

Rear Axle Drive TypeSpur gearReference

General

Make & ModelKubotaReference

LubricationForced lubricationReference

Rollover protective structureROPS.Reference

Country of manufacturerCompact Utility tractorReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Mid PTO speed2,500@3,125 RPMReference

Engine Speed on Rear PTO speed540@3,068 RPMReference

Steering & brakes

BrakesMulti wet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity450 kgReference

Rear Hitch Sensing TypeQuarter Inching ValveReference

Dimensions & weight

Overall Height178.8 cmReference

Overall Length242.6 cmReference

Overall Width81.8 cmReference

Wheels & tyres

Rear Wheel TypeRear : 26 x 12.00 - 12 | Turf - 26x12-12Reference

Rear wheel tread range26x12-12 inchReference

Front Wheel TypeFront : 18 x 8.50 - 10 | Turf-18x8.5-10Reference

Front Wheel tread range18x8.5-10Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
