Tractor · 2015Unverified

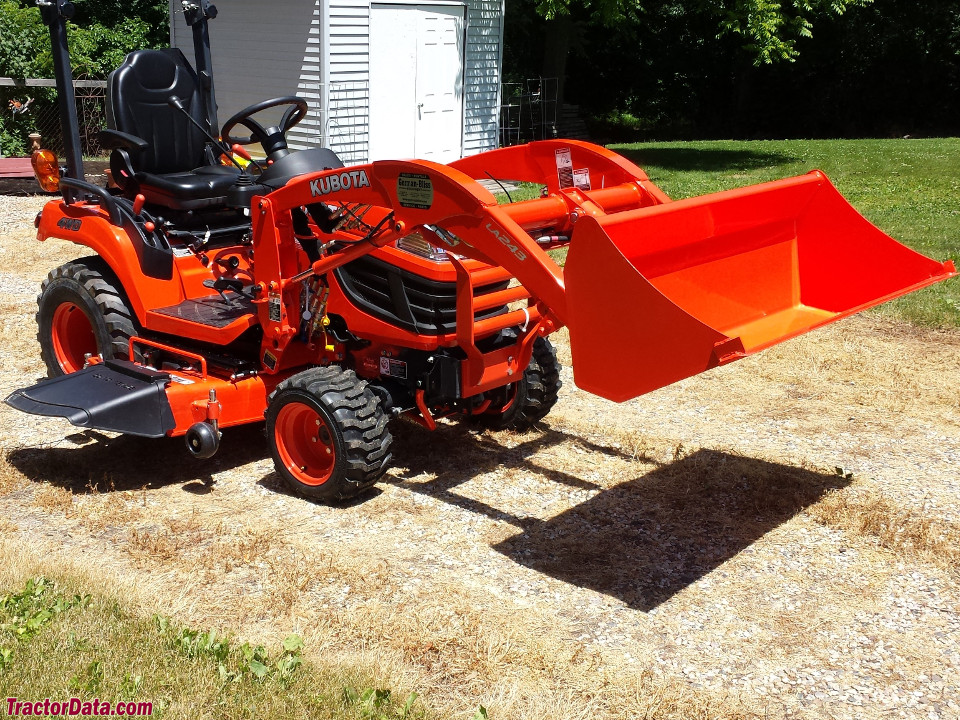

Kubota BX2370-1

Name: Kubota BX2370-1
Brand: Kubota

Kubota BX2370-1 — BX Series · 23 hp. Reference specifications; pending source verification.

The Kubota BX2370-1 is a compact tractor with a rated output of 23 hp, produced between 2015 and 2016. It features a 3-cylinder diesel liquid-cooled engine, powering four-wheel drive via a hydrostatic transmission. The tractor weighs 639 kg. It is designed to handle tasks on properties of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Max power

23 hp

Weight

639 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

23 hp

Recorded weight

639 kg

Transmissions

hydrostatic

Production years

2015-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $11,726 in 2015Reference

Four-wheel driveReference

Differential lockrear standardReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

BX2370-1tractorReference

BX25D-1loader-backhoeReference

Engine

Kubota 0.9L 3-cyl dieselReference

Engine (gross)17.2 kWReference

Kubota D902Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Power (gross)17.2 kWReference

Rated RPM3200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity3.1 LReference

Coolant capacity2.6 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,200 RPMReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity11.7 LReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : infinite (2-range) F and infinite RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)13.2 kWReference

Hydraulic system11.7 LReference

Typeopen centerReference

Capacity11.7 LReference

Pump flow23.5 lpmReference

Rear TypeIReference

Controlquarter-inching valveReference

Rear lift (at ends)449 kgReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3200Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@3200Reference

Capacities

Fuel25.0 LReference

Fuel tank25 LReference

Crankcase oil volume3.3 qtsReference

Dimensions

Wheelbase139 cmReference

Weight639 kgReference

Front tire18x8.5-10Reference

Rear tire26x12-12Reference

Ag front18x8.5-10Reference

Ag rear26x12-12Reference

Lawn/turf front18x8.5-10Reference

Lawn/turf rear26x12-12Reference

Industrial front18x8.5-10Reference

Industrial rear26x12-12Reference

Length242 cmReference

Width113 cmReference

Height (ROPS)221 cmReference

Clearance (front axle)22 cmReference

Front tread92 cmReference

Rear tread81 cmReference

Kubota BX2370-1 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA535Reference

Battery volts12Reference

Total cold cranking amps535 CCAReference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

Front-end loaderReference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

Rollover protective structureTwo-post folding ROPS.Reference

Power

Max Power23 hpReference

PTO

PTO Power17.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Rear PTO speed540@3,200 RPMReference

Engine Speed on Mid PTO speed2,500@3,200 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity450 kgReference

Rear Hitch Sensing Typequarter-inching valveReference

Dimensions & weight

Height Over ROPS221.5 cmReference

Overall Length242.6 cmReference

Overall Width113 cmReference

Front axle clearance22.1 cmReference

Overall weight639.6 kgReference

Wheels & tyres

Rear Wheel Type26x12-12Reference

Rear wheel tread range81.8 cmReference

Front Wheel Type18x8.5-10Reference

Front Wheel tread range93 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
