Tractor · 2013Unverified

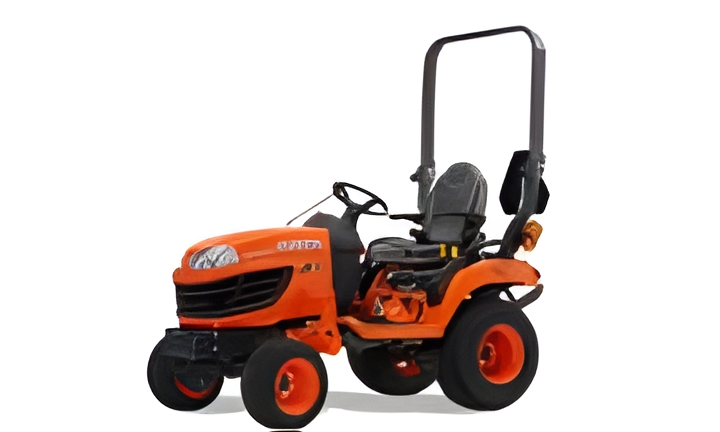

Kubota BX2670

Name: Kubota BX2670
Brand: Kubota

Kubota BX2670 — BX70 Series · 26 hp. Reference specifications; pending source verification.

The Kubota BX2670 is a compact tractor with a rated output of 26 hp. It was manufactured from 2013 to 2014 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with a hydrostatic transmission and four-wheel drive, with a listed weight of 664 kg. It is designed for use in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Max power

25.5 hp

Weight

664 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

26 hp

Recorded weight

664 kg

Transmissions

hydrostatic

Production years

2013-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $12,896 in 2013Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Optional canopy.Reference

Engine

Kubota 1.0L 3-cyl dieselReference

Engine (gross)19.0 kWReference

Kubota D1005Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke76 x 74 mmReference

Power (gross)19.0 kWReference

Rated RPM3200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity3.5 LReference

Coolant capacity2.9 LReference

Fuel TypedieselReference

No of Cylinders3 CylinderReference

Rated engine speed3,200 RPMReference

Bore and stroke3.00x2.90 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity11.7 LReference

Transmission TypeHSTReference

forward and reverse optionshydrostatic - infinite F and (2-range)RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)14.5 kWReference

Hydraulic system11.7 LReference

Typeopen centerReference

Capacity11.7 LReference

Pump flow23.5 lpmReference

Rear TypeIReference

Controlquarter-inching controlReference

Rear lift (at ends)548 kgReference

Rear lift (at 24"/610mm)303 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3200Reference

Mid PTOindependentReference

Mid PTO Type2500Reference

Engine RPM2500@3200Reference

Capacities

Fuel25.0 LReference

Fuel tank25 LReference

Crankcase oil volume3.7 qtsReference

Dimensions

Wheelbase139 cmReference

Weight664 kgReference

Length242 cmReference

Width113 cmReference

Height (ROPS)221 cmReference

Clearance (front axle)22 cmReference

Front tread67 to 92 cmReference

Rear tread81 cmReference

Kubota BX2670 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging volts40Reference

Battery CCA535Reference

Battery volts12Reference

Total cold cranking amps535 CCAReference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

Front-end loaderReference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

Rollover protective structureTwo-post foldable ROPSReference

Power

Max Power25.5 hpReference

PTO

PTO Power19.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,500 RPMReference

Engine Speed on Mid PTO speed2,500@3,200 RPMReference

Engine Speed on Rear PTO speed540@3,200 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)6.2 gpmReference

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity548.8 kgReference

Rear Hitch Sensing Typequarter-inching controlReference

Dimensions & weight

Height Over ROPS221.5 cmReference

Overall Length242.6 cmReference

Overall Width113 cmReference

Front axle clearance22.1 cmReference

Overall weight665 kgReference

Wheels & tyres

Rear wheel tread range81.8 cmReference

Front Wheel tread range26.6 to 36.6 inchesReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
