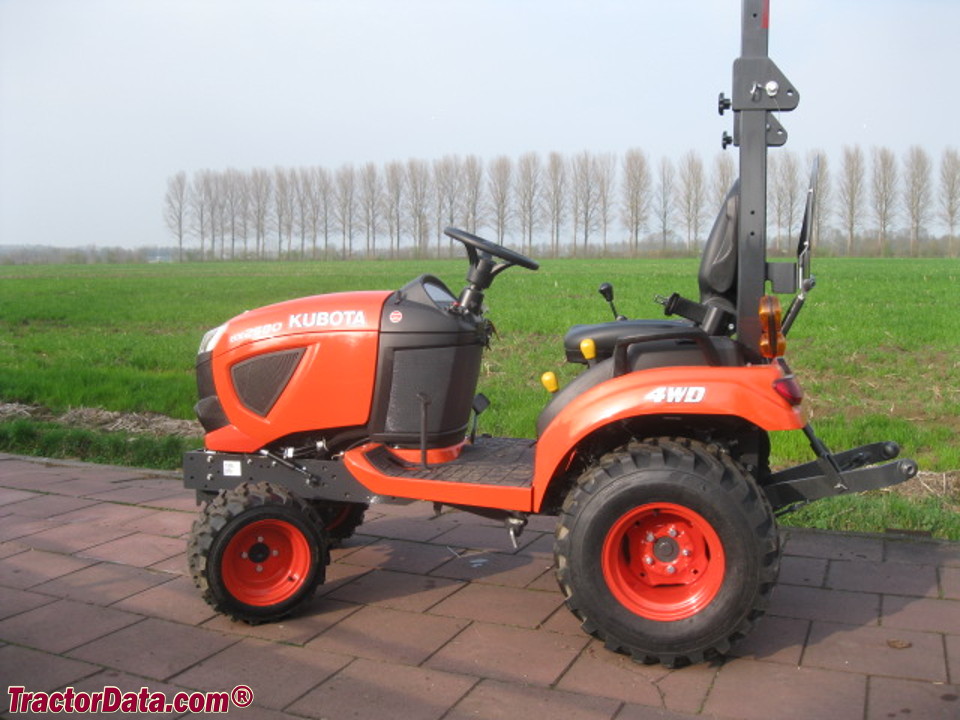

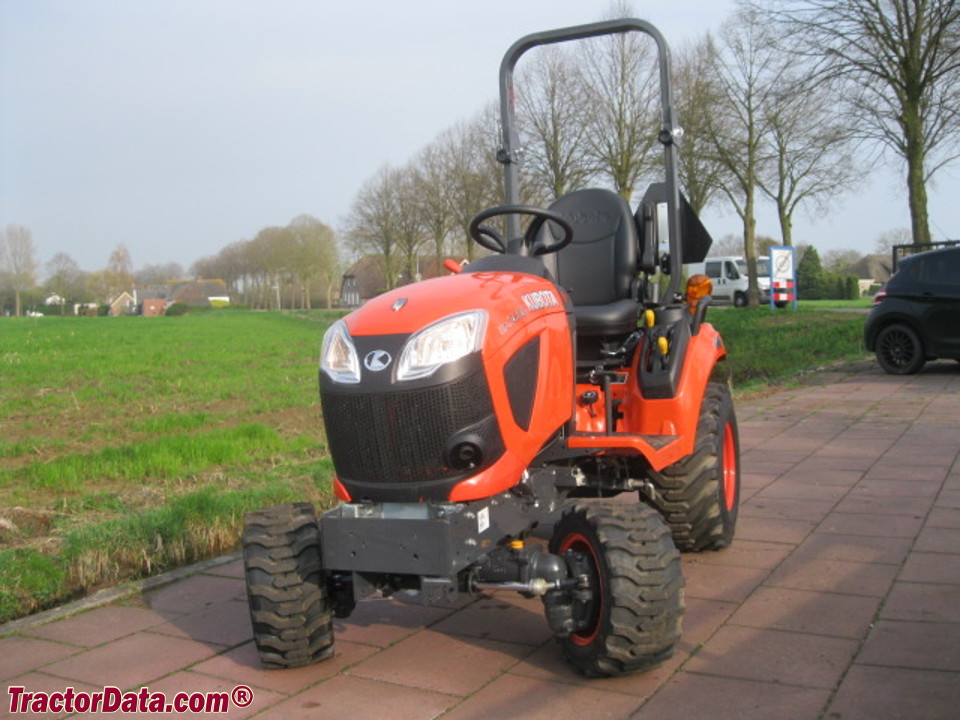

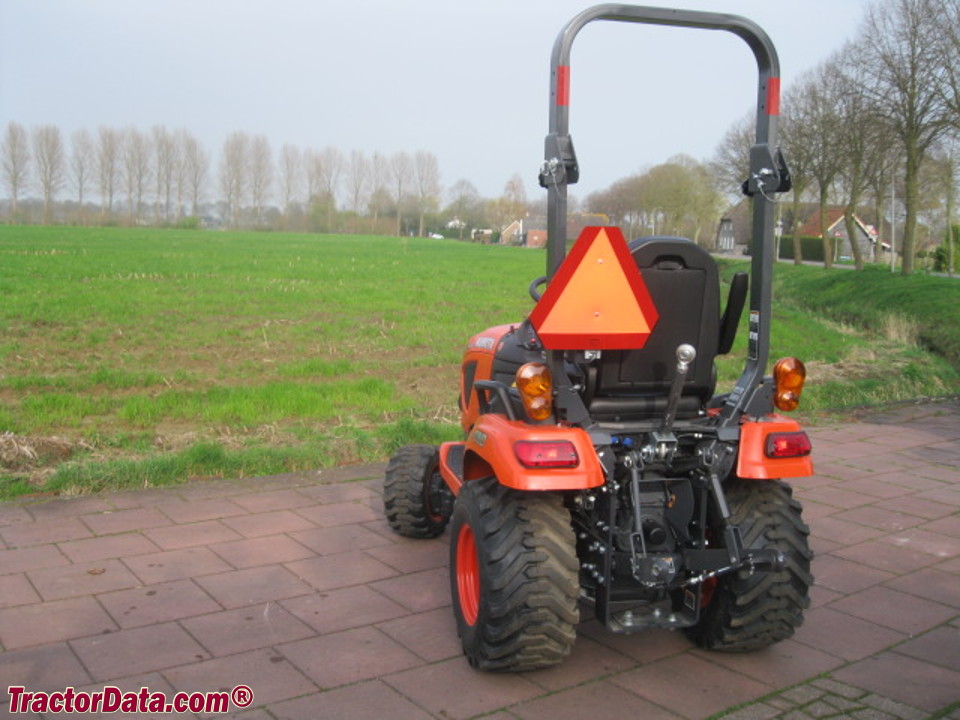

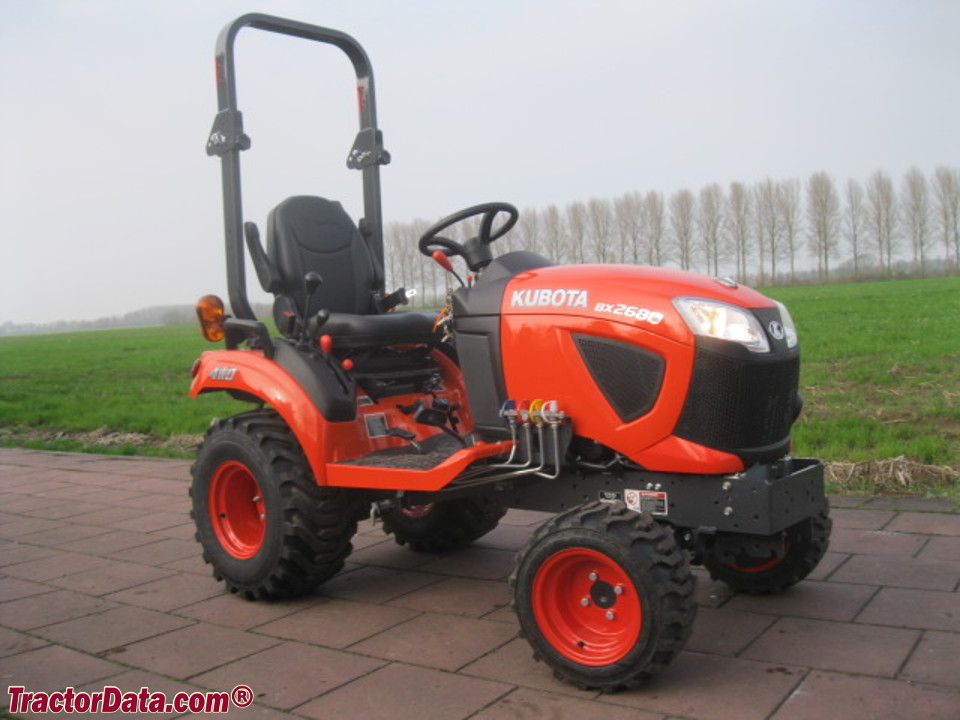

The Kubota BX2680 is a tractor model with a rated power of 20 hp, which positions it at the lower end of its power class. Built in 2017, the tractor features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has a listed operating weight of 689 kg, and is suited to operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Max power
24.8 hp (3,200 rpm)
Weight
689 kg
Catalogue coverage
Variants represented
2
Richest spec table
84 rows
Recorded power
20 hp
Recorded weight
689 kg
Transmissions
hydrostatic
Production years
2017-2017
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price was $13,347 in 2017Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine18.5 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power18.5 kWReference
Rated RPM3200Reference
StarterelectricReference
Starter volts12Reference
Fuel TypeDieselReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Transmission TypeHSTReference
forward and reverse options2x2Reference
forward speed range12.5 kmphReference
reverse speed range9.5 kmphReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)14.5 kWReference
Pump flow23.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)308 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase139 cmReference
Weight689 kgReference
Front tire18x8.5-10Reference
Rear tire26x12-12Reference
Standard tires (ag)Front: 18x8.5-10. Rear: 26x12-12Reference
Lawn/turf front18x8.5-10Reference
Lawn/turf rear26x12-12Reference
Length242 cmReference
Width114 cmReference
Height (ROPS)211 cmReference
Clearance (front axle)21 cmReference
Front tread92 cmReference
Rear tread81 cmReference
Kubota BX2680 attachments
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
BX2680 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference
