Tractor · 2012Unverified

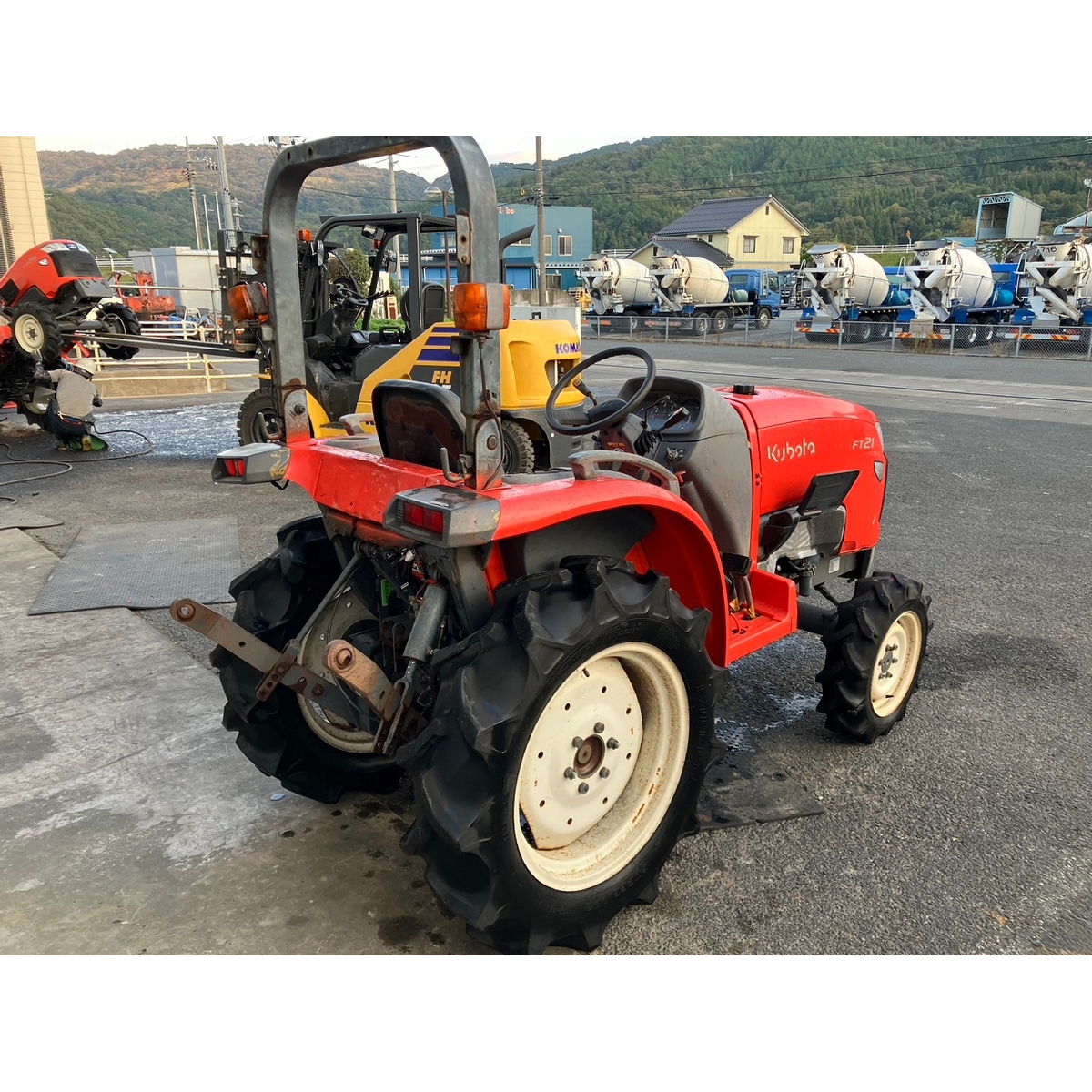

Kubota FT21
Kubota FT21 — FT Granforce Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1995 to 2304 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
FT21wheeledReference
FT21-PChalf-trackReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine15.4 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power15.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
48-speed power shiftReference
ROPS gear904 kgReference
Cab gear1025 kgReference
Gears12 forward and reverseReference
Clutchdry discReference
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears48 forward and 30 reverseReference
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM553@2500Reference
Engine RPM771@2500Reference
Engine RPM1136@2500Reference
Engine RPM-649@2500Reference
Dimensions
Wheelbase150 cmReference
Weight1995 to 2304 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Optional tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length290 cmReference
ROPS Width117 cmReference
Cab Width131 cmReference
Height (ROPS)190 cmReference
Height (cab)193 cmReference
Ground clearance32 cmReference
Front tread97 cmReference
Rear tread94/106 cmReference
ROPS Glideshift924 kgReference
Cab Glideshift1045 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
