Tractor · 2012Unverified

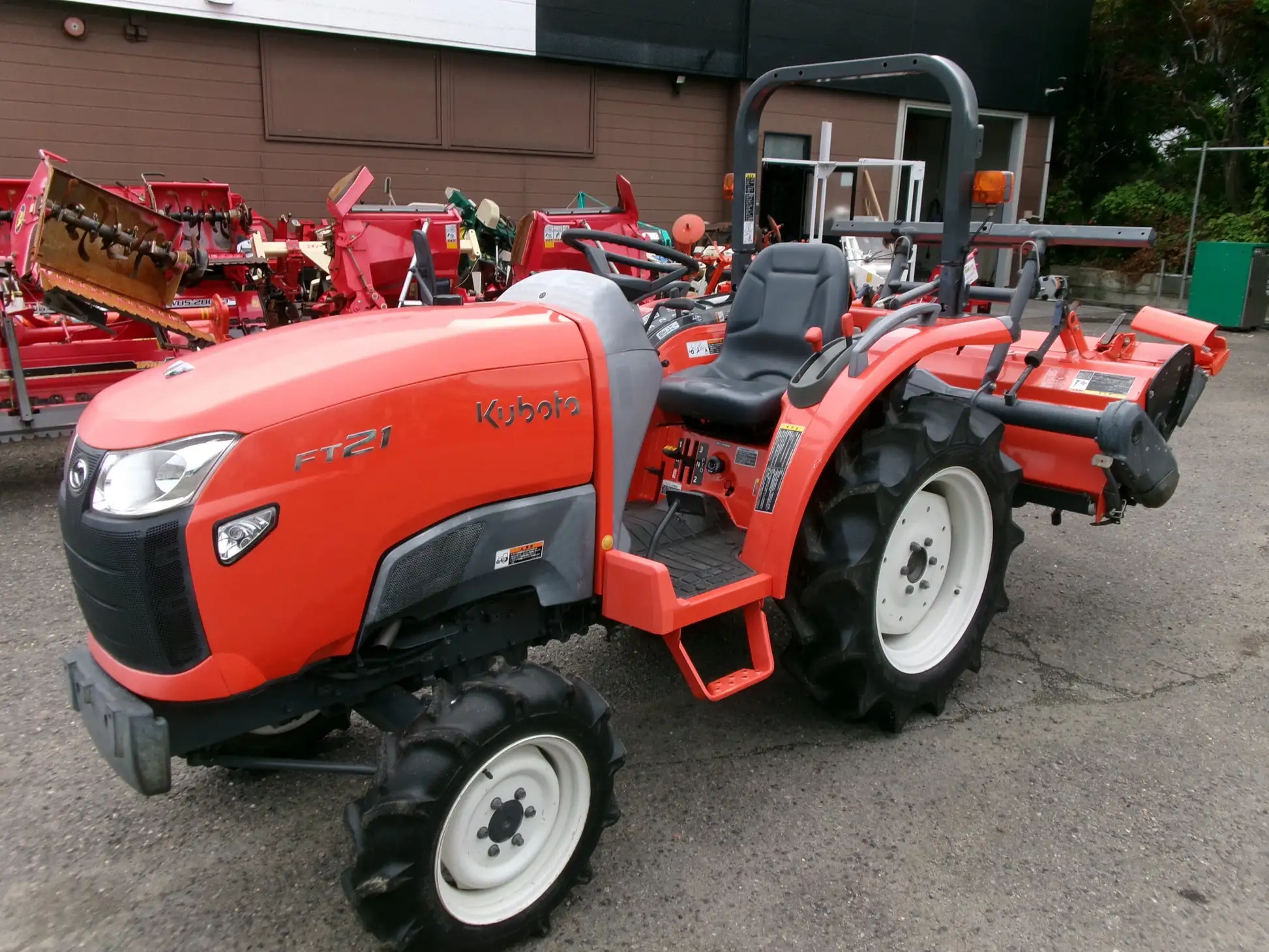

Kubota FT21-PC Power Crawler

Name: Kubota FT21-PC Power Crawler
Brand: Kubota

Kubota FT21-PC Power Crawler — FT Granforce Series · 21 hp. Reference specifications; pending source verification.

The Kubota FT21-PC Power Crawler is a 21 hp tractor, one of the more compact models in its class. Manufactured from 2012 to 2015, it features a 3-cylinder diesel liquid-cooled engine powering a tracked undercarriage via a powershift transmission. The listed weight for this model is 2568 to 2899 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

2568 to 2899 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

21 hp

Transmissions

12-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Variants

FT21wheeledReference

FT21-PChalf-trackReference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine15.4 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power15.4 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear1164 kgReference

Cab gear1295 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM505@2500Reference

Engine RPM731@2500Reference

Engine RPM1136@2500Reference

Engine RPM-615@2500Reference

Dimensions

Wheelbase150 cmReference

Weight2568 to 2899 poundsReference

Front tire7-16Reference

Rear tiretracksReference

Ag front7-16Reference

Ag rear330mm trackReference

Length290 cmReference

Width137 cmReference

Height (ROPS)197 cmReference

Height (cab)201 cmReference

Ground clearance38 cmReference

Front tread104 cmReference

Rear tread103 cmReference

ROPS Glideshift1184 kgReference

Cab Glideshift1314 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
