Tractor · 2012Unverified

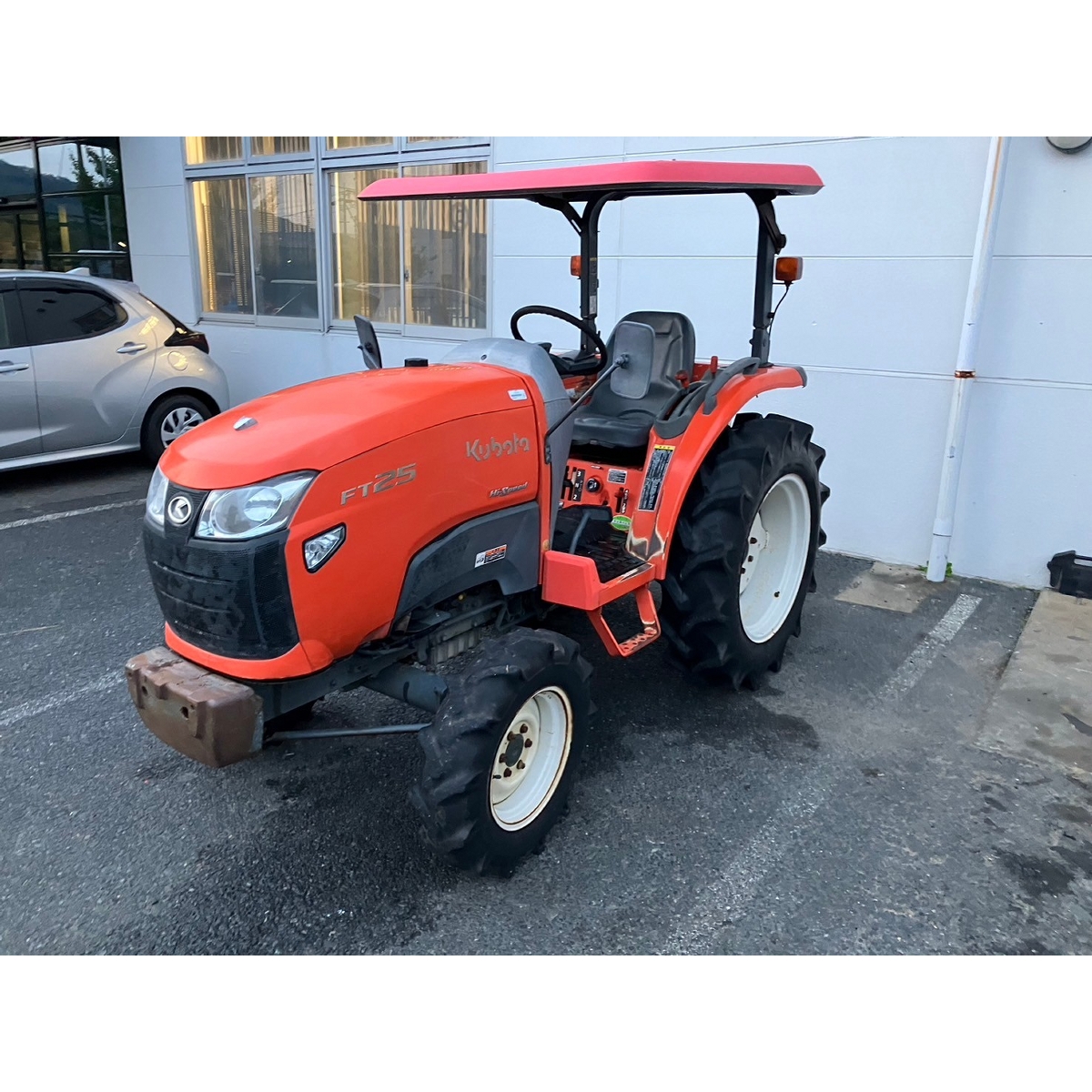

Kubota FT25
Kubota FT25 — FT Granforce Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2017 to 2337 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
FT25wheeledReference
FT25-PChalf-trackReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine18.4 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power18.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
48-speed power shiftReference
ROPS gear914 kgReference
Cab gear1040 kgReference
Gears12 forward and reverseReference
Clutchdry discReference
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears48 forward and 30 reverseReference
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM525@2600Reference
Engine RPM760@2600Reference
Engine RPM1182@2600Reference
Engine RPM-640@2600Reference
Dimensions
Wheelbase150 cmReference
Weight2017 to 2337 poundsReference
Front tire6-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Optional tires (ag)Front: 7-14. Rear: 11.2-24Reference
Length290 cmReference
ROPS Width118 cmReference
Cab Width131 cmReference
Height (ROPS)193 cmReference
Height (cab)196 cmReference
Ground clearance33 cmReference
Front tread97 cmReference
Rear tread94/106 cmReference
ROPS Glideshift934 kgReference
Cab Glideshift1060 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
