Tractor · 2004Unverified

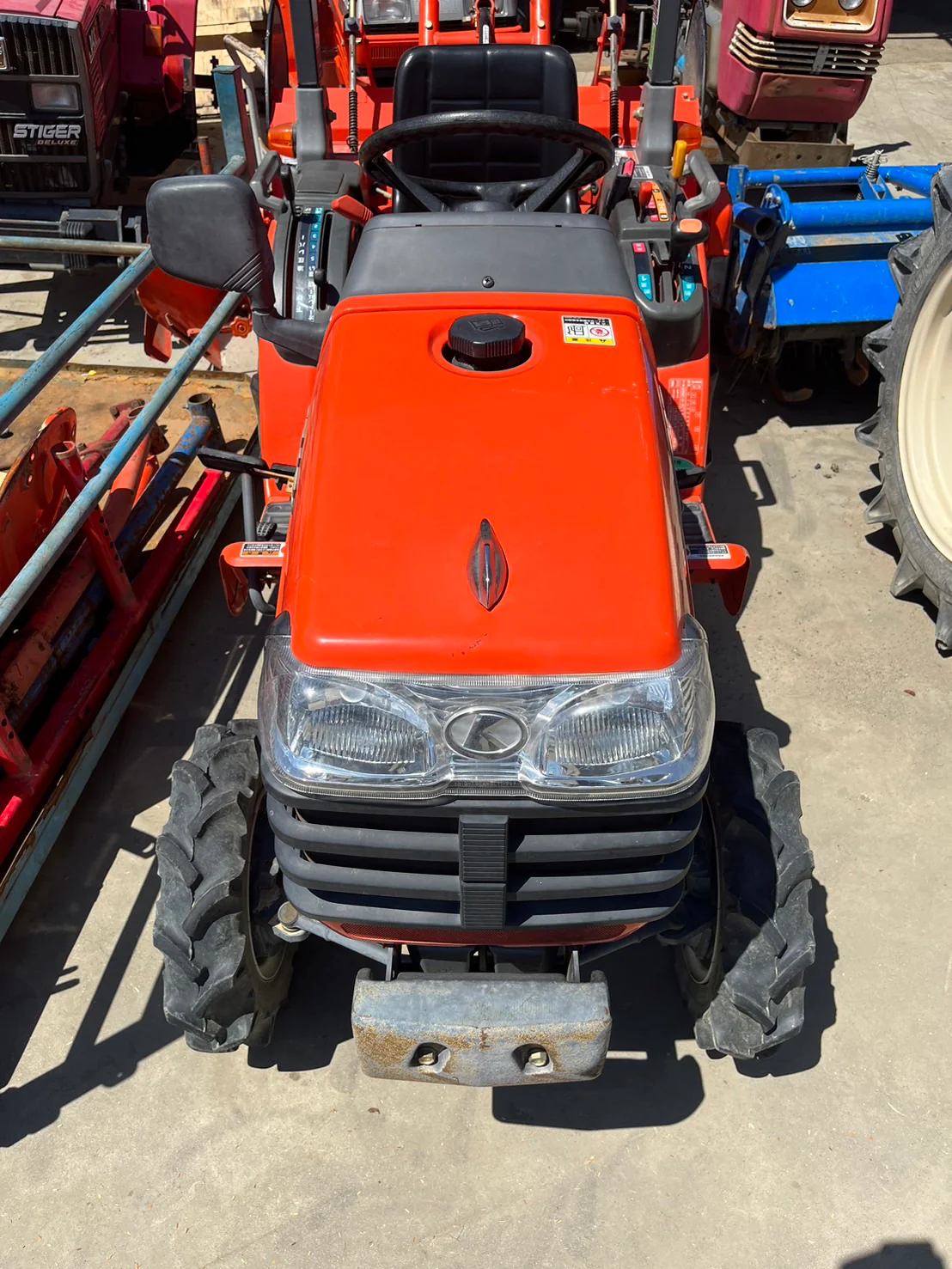

Kubota GB115
Kubota GB115 — GB Series · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
479 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 0.5L 2-cyl dieselReference
Fuel tank12.9 LReference
Engine7.7 kWReference
Kubota Z482Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.5 LReference
Bore/Stroke67 x 68 mmReference
Power7.7 kWReference
Rated RPM3000Reference
StarternegativeReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Controlposition controlReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase119 cmReference
Weight479 kgReference
Front tire4.00-10Reference
Rear tire7-14Reference
Standard tires (ag)Front: 4.00-10. Rear: 7-14Reference
Length192 cmReference
Width103 cmReference
Height (ROPS)170 cmReference
Ground clearance23 cmReference
Front tread72 cmReference
Rear tread72 to 87 cmReference
Electrical
GroundelectricReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
