Tractor · 1997Unverified

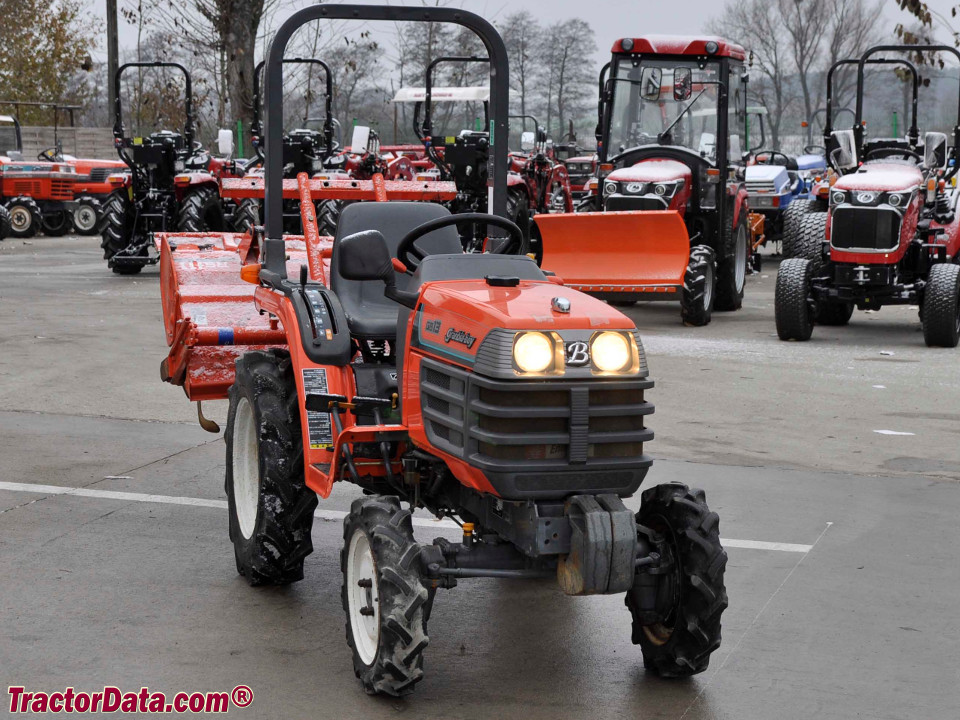

Kubota GB13

Name: Kubota GB13
Brand: Kubota

Kubota GB13 — GB Series · 13 hp. Reference specifications; pending source verification.

The Kubota GB13 is a compact tractor, boasting a rated output of 13 hp, which places it among the smaller options in its class. Produced between 1997 and 2001, the GB13 is equipped with a 3-cylinder diesel liquid-cooled engine, coupled with a 6-speed gearbox and four-wheel drive. Weighing 524 kg, this tractor is designed for tasks such as those involving areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

13 hp

Weight

524 kg

Catalogue coverage

Variants represented

Richest spec table

39 rows

Recorded power

13 hp

Recorded weight

524 kg

Transmissions

6-speed gear

Production years

1997-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Manual steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 0.7L 3-cyl dieselReference

Fuel tank12.9 LReference

Engine9.6 kWReference

Kubota D662Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke64 x 68 mmReference

Power9.6 kWReference

Rated RPM2800Reference

StarternegativeReference

Starter volts12Reference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

Three gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Controlposition controlReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase127 cmReference

Weight524 kgReference

Front tire4.00-12Reference

Rear tire7-16Reference

Standard tires (ag)Front: 4.00-12. Rear: 7-16Reference

Length199 cmReference

Width93 cmReference

Height (ROPS)178 cmReference

Ground clearance26 cmReference

Front tread76 cmReference

Rear tread72 to 87 cmReference

Electrical

GroundelectricReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
